GW4
Fenarro
| Quantity: | |
|---|---|

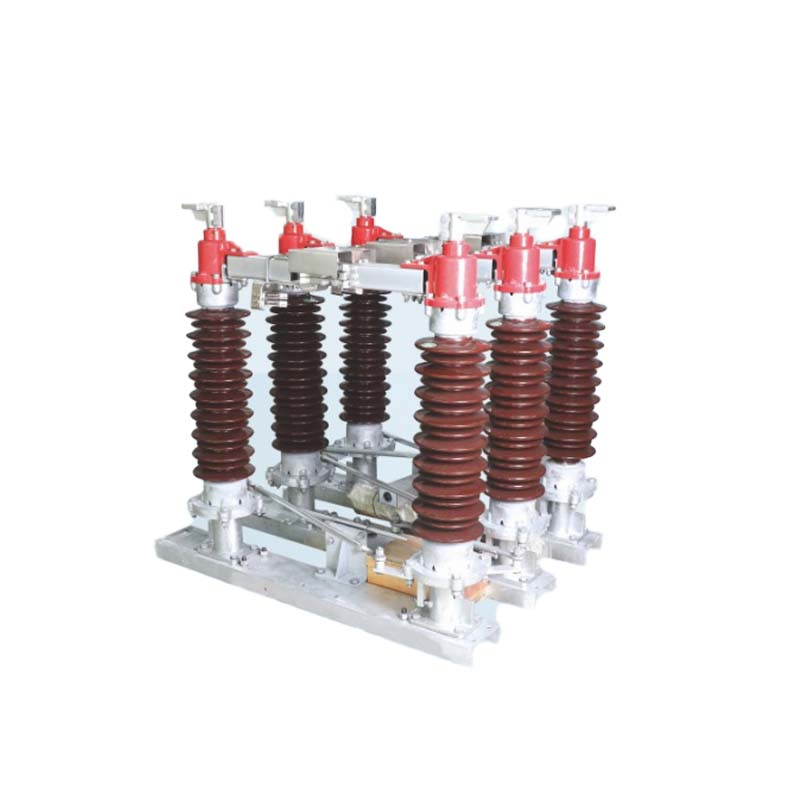

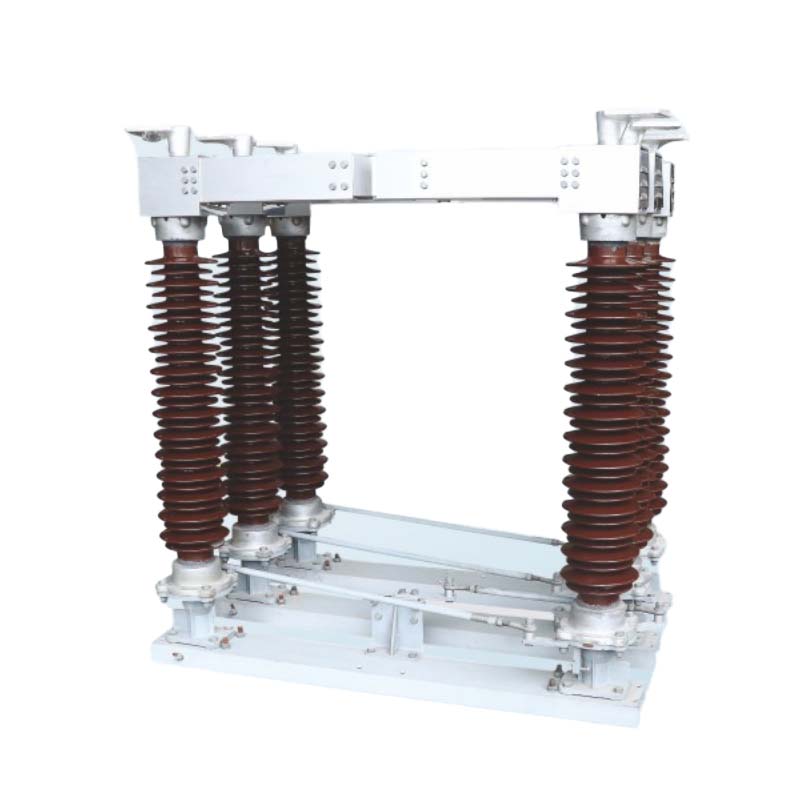

The GW4 Series Outdoor HV Disconnector is a high-performance isolating switch widely used in outdoor substations and transmission systems with rated voltages of 35kV, 66kV, 110kV, 132kV, and 220kV.
It is composed of the GW4 isolator body, CS17 manual operating mechanism (or CJ6 electric operating mechanism if required), and transmission accessories. Each voltage level is designed for reliable disconnection and grounding, ensuring safe isolation of circuits during maintenance or fault conditions.
The disconnector adopts a double-column horizontal opening structure, manufactured with high-strength porcelain insulators, advanced conductive components, and hot-dip galvanized steel parts, making it suitable for long-term outdoor operation under harsh environmental conditions.
Innovative Structure – Double-column, horizontal-opening design with rotating contacts for automatic cleaning, ensuring excellent contact reliability.
Advanced Contact Design – Contact fingers are made of high-strength, high-conductivity, and high-elasticity materials. The clamping force relies on the elasticity of the fingers, eliminating common problems such as spring corrosion, heating, and increased resistance.
Maintenance-Free Bearings – Rotating parts use sealed structures with self-lubricating bearings. Moisture, dust, and harmful gases cannot enter, ensuring long-term smooth operation without rust or grease leakage.
Corrosion Resistance – All steel parts are hot-dip galvanized; stainless steel is used for critical fasteners, ensuring long-lasting anti-rust performance even in harsh environments.
Reliable Grounding Interlock – Equipped with mechanical interlocks between the main circuit and the grounding switch to ensure safety. When the disconnector is closed, the grounding switch cannot be closed, and vice versa.
High-Strength Insulators – Support insulators are made from high-strength porcelain with excellent tensile and anti-pollution performance, ensuring reliable stability under severe weather conditions.
User-Friendly Design – Flat terminal connections, no need for on-site welding, and optional mounting brackets (height to be specified when ordering).
| Rated Voltage (KV) | Maximum Voltage (KV) | Rated Current (Peak Value) (A) | Dynamic Stable Current (Effective Value) (KA) | Thermal - Stable Current (KA - S) | One - Minute Power - Frequency Withstand Voltage (Effective Value) (KV) | Lightning Impulse Withstand Voltage (Peak Value) (KV) | Opening/Closing Time (S) | Static Pull Force of Terminal (N) | Breaking Current (A) | Creepage Distance (mm) | Weight of Single Pole (kg) | Remarks | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| To Ground | Fracture | To Ground | Fracture | |||||||||||
| 35 (35) | 40.5 | 630 1250 1600 2000 | 50 80 100 | 20 - 4 31.5 - 4 40 - 2 | 80 | 90 | 185 | 215 | 500 | 625 | 875 1225 | 120 145 170 | ||
| 63 (72.5) | 630 1250 1600/2000 2500 | 50 80 100 125 | 20 - 4 31.5 - 4 40 - 2 50 - 2 | 140 | 160 | 325 | 375 | 500 | 1100 | 1600 1813 2205 | 180 200 225 260 | |||
| 110 (126) | 126 | 630 120 1600/2000 1250 | 50 80 100 125 | 20 - 4 31.5 - 4 40 - 2 50 - 3 | 230 (185) | 265 (450) | 550 (450) | 630 (520) | 750 | 1870 | 2750 3150 | 200 230 260 | The internal insulation standard in the brackets can be used at an altitude of ≤2500m | |
| (145) | 145 | 1600/2000 3150 1250 | 80 100 125 | 1.5 - 4 40 - 2 50 - 3 40 - 3 | 275 | 315 | 650 | 750 | 6±1 | Vertical 500 Horizontal 170 Vertical 1250 Horizontal 420 | 2400 | 3800 | 300 320 380 | Applicable to 4000M high - altitude 110KV system |
| 220 (245) | 252 | 1600/2000 2500 3150 | 100 125 | 40 - 3 50 - 3 | 450 | 530 | 1050 | 1200 | 6±1 | 1000 | 0.5 3740 | 5500 6300 | 630±70 650±70 690±70 |
When placing an order, please specify:
Product model and voltage level (e.g., GW4-110kV).
Rated electrical parameters (voltage, current, short-time withstand current, etc.).
Operating mechanism type (manual CS17 or electric CJ6).
Environmental conditions (altitude, temperature, pollution level).
Requirement for grounding switch (yes/no).
Installation accessories (mounting bracket and height if required).
