Manufactured with high-strength porcelain or composite insulators, these cutouts feature excellent electrical insulation and mechanical strength.
Protection of distribution transformers from overload and short circuits
Fault protection for overhead distribution lines in urban and rural power grids
Applied in power substations, industrial distribution networks, and rural electrification projects
Suitable for 10kV, 33kV, 35kV, and 40.5kV power systems
Wide voltage range: available from 10kV to 40.5kV
Reliable fault protection with high breaking current capacity
Clear visible break point, enhancing safety for maintenance operations
Strong insulation performance with porcelain or polymer insulators
Easy installation and maintenance, suitable for outdoor applications
| Model | Rated Voltage (kV) | Rated Current (A) | Breaking Current (A) | Impulse Voltage (kV) | Power Frequency Withstand Voltage (kV) | Creepage Distance (mm) | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|---|---|---|---|

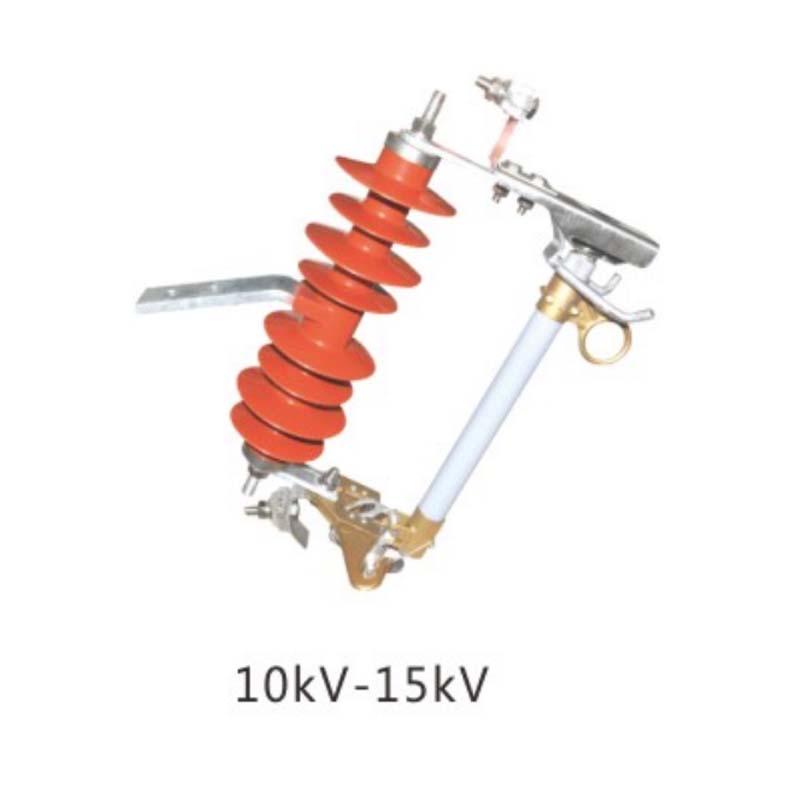

| HRW33 | 12 | 100 / 200 | 6,300 / 8,000 | 125 | 45 | 400 | - | 42×35×11 |
| HRW11 | 12 | 100 / 200 | 6,300 / 8,000 | 110 | 42 | 350 | - | 42×35×11 |
| HRW3 | 12 | 100 / 200 | 6,300 / 8,000 | 110 | 42 | 350 | - | 42×35×11 |

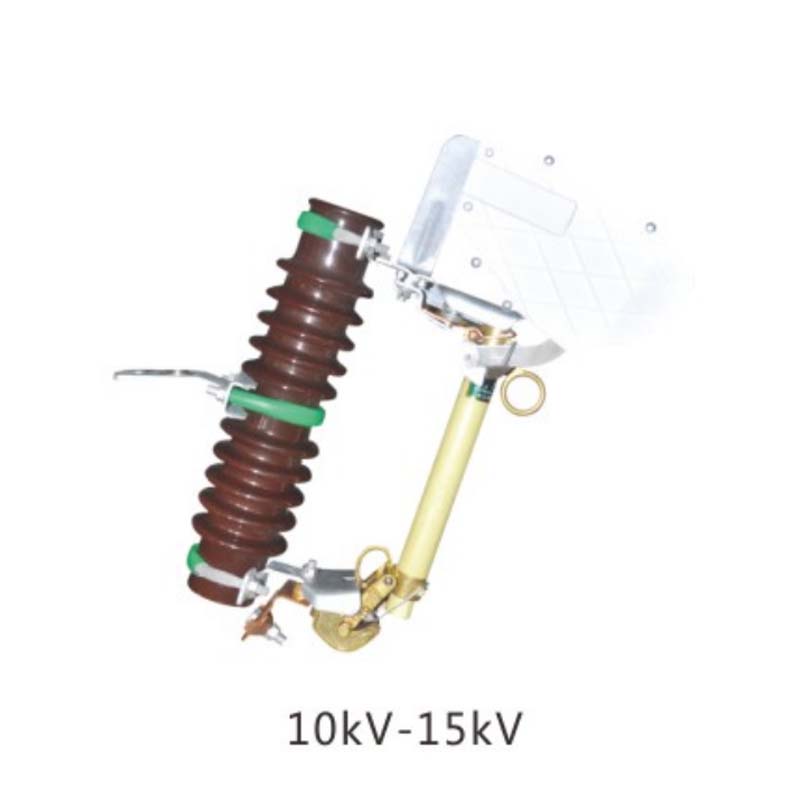

| RW10-10F | 12 | 100 / 200 | 6,300 / 8,000 | 110 | 42 | 360 | 8.5 | 56×13×40 |
| RW22-10F | 12 | 100 / 200 | 6,300 / 8,000 | 110 | 42 | 245 | 6.2 | 53×32×12 |

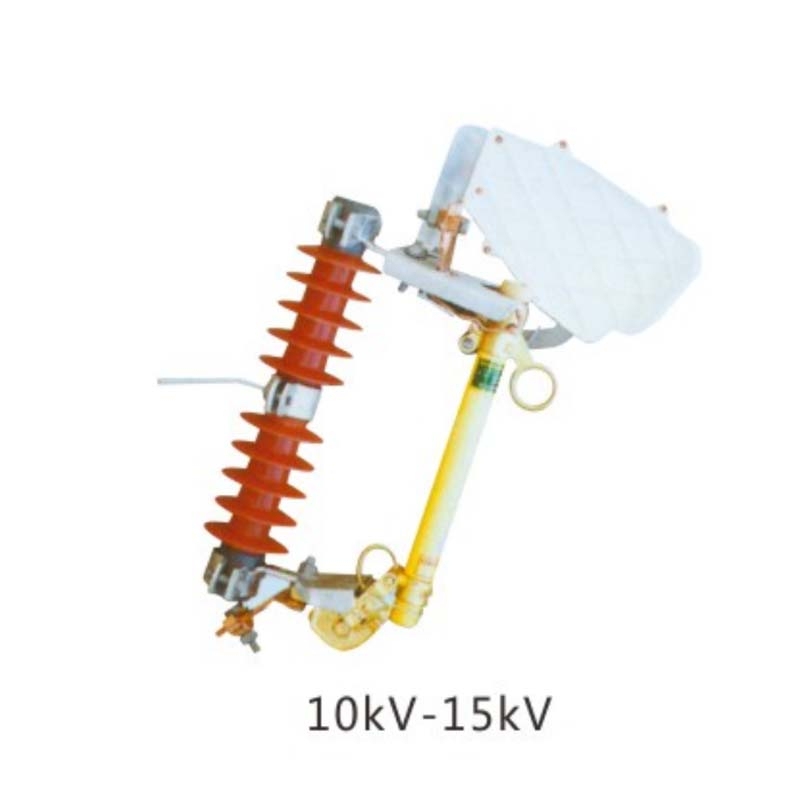

| HRW10-10F | 12 | 100 / 200 | 6,300 / 8,000 | 110 | 42 | 350 | 3.8 | 42×35×11 |
| RW3 | 10 | 100 / 200 | 6,300 / 8,000 | 100 / 110 | 42 | 230 | 6.3 | 48×27×12 |
33kV – 36kV Range
| Model | Rated Voltage (kV) | Rated Current (A) | Breaking Current (A) | Impulse Voltage (kV) | Power Frequency Withstand Voltage (kV) | Creepage Distance (mm) | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|---|---|---|---|

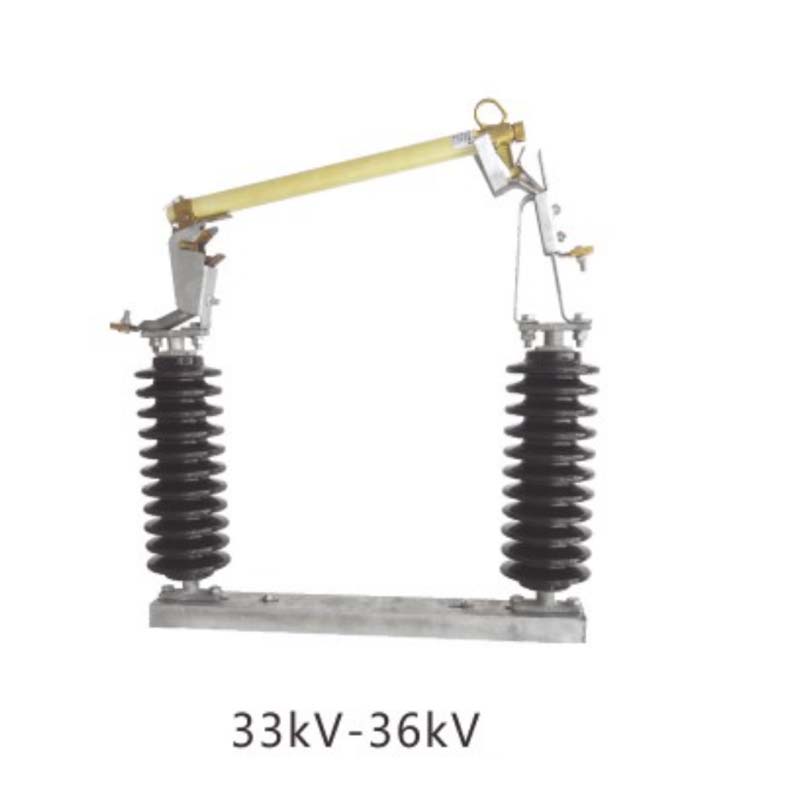

| RW10-35 | 35 | 100 / 200 | 8,000 / 10,000 | 170 | 70 | 820 | 24.5 | 68×17×15 |
35kV Range
| Model | Rated Voltage (kV) | Rated Current (A) | Breaking Current (A) | Impulse Voltage (kV) | Power Frequency Withstand Voltage (kV) | Creepage Distance (mm) | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|---|---|---|---|

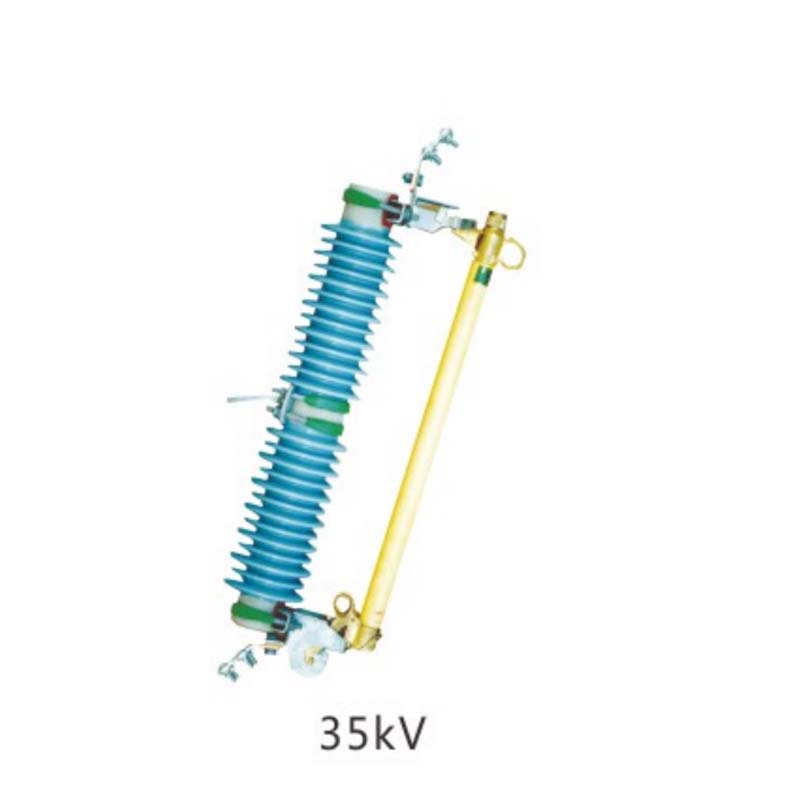

| PRWG2 | 35 | 100 | 6,300 / 8,000 | 170 | 70 | 870 | 16 | 90×40×13 |
35kV – 40.5kV Range
| Model | Rated Voltage (kV) | Rated Current (A) | Breaking Current (A) | Impulse Voltage (kV) | Power Frequency Withstand Voltage (kV) | Creepage Distance (mm) | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|---|---|---|---|

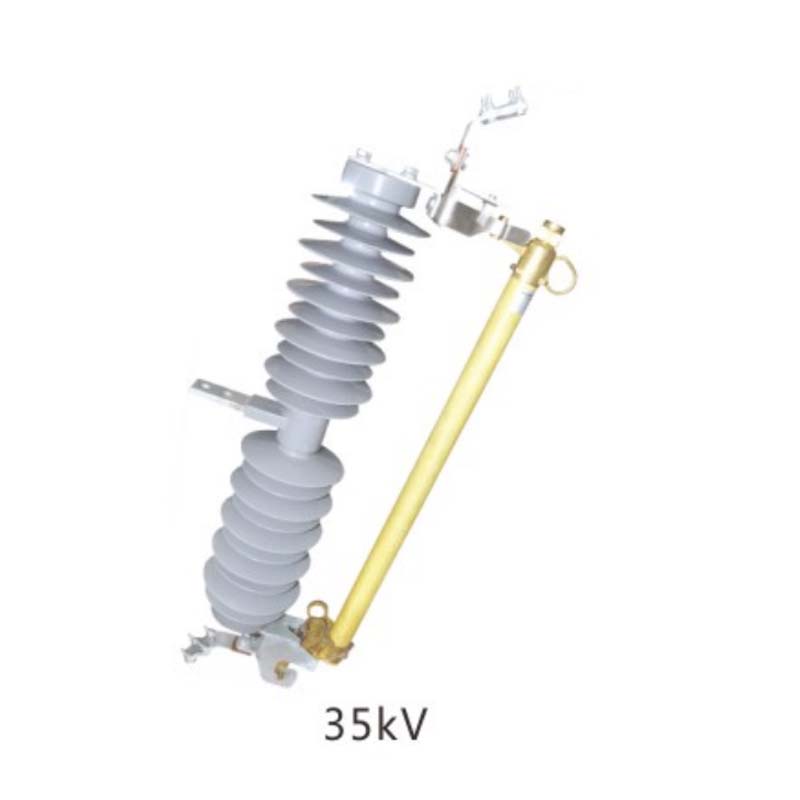

| HPRWG2 | 35 | 100 / 200 | 6,300 / 8,000 | 175 | 95 | 1145 | 16 | 90×40×13 |
Q1: What is the function of a drop-out fuse cutout?
A1: It protects distribution transformers and lines from overloads and short circuits. Once a fault occurs, the fuse blows and the fuse holder drops, creating a visible disconnection point.
Q2: What is the voltage range of your fuse cutouts?
A2: Our products cover 10kV to 40.5kV, with rated currents of 100A and 200A.
Q3: Can the fuse cutout be used outdoors?
A3: Yes, all models are designed for outdoor use with strong insulation, weather resistance, and long service life.
Q4: What standards do your products comply with?
A4: They comply with IEC and GB standards for high-voltage fuse cutouts, ensuring safety and reliability.
Q5: Where are these products commonly applied?
A5: They are used in urban and rural power distribution networks, substations, and industrial facilities.
