With over 16 years of experience working closely with high-voltage switchgear and vacuum circuit breakers, I’ve seen firsthand how the right VCB can prevent downtime, protect equipment, and ensure operational reliability. This guide summarizes practical insights on how to understand, select, maintain, and replace high voltage vacuum circuit breakers for substations, industrial systems, and renewable energy projects.

1.What Is a High Voltage Vacuum Circuit Breaker?

During my early projects in industrial substations, I observed that engineers often underestimated how a VCB differs from other breakers. A high voltage vacuum circuit breaker (HV VCB) uses vacuum as the arc-quenching medium. When the contacts separate, any arc that forms is extinguished almost instantly, restoring insulation and preventing equipment damage. This design provides compactness, low maintenance, and high reliability in medium and high-voltage systems.

VCBs are widely deployed across:

• Medium voltage switchgear

• Indoor metal-clad panels

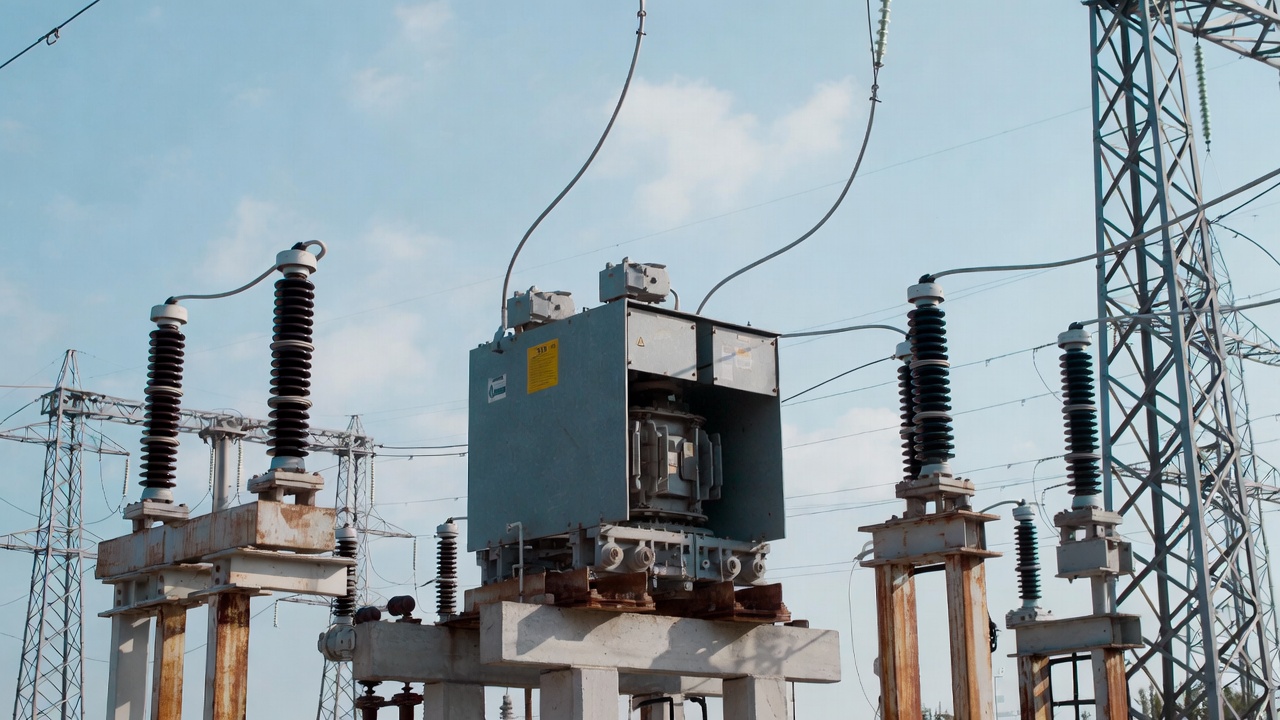

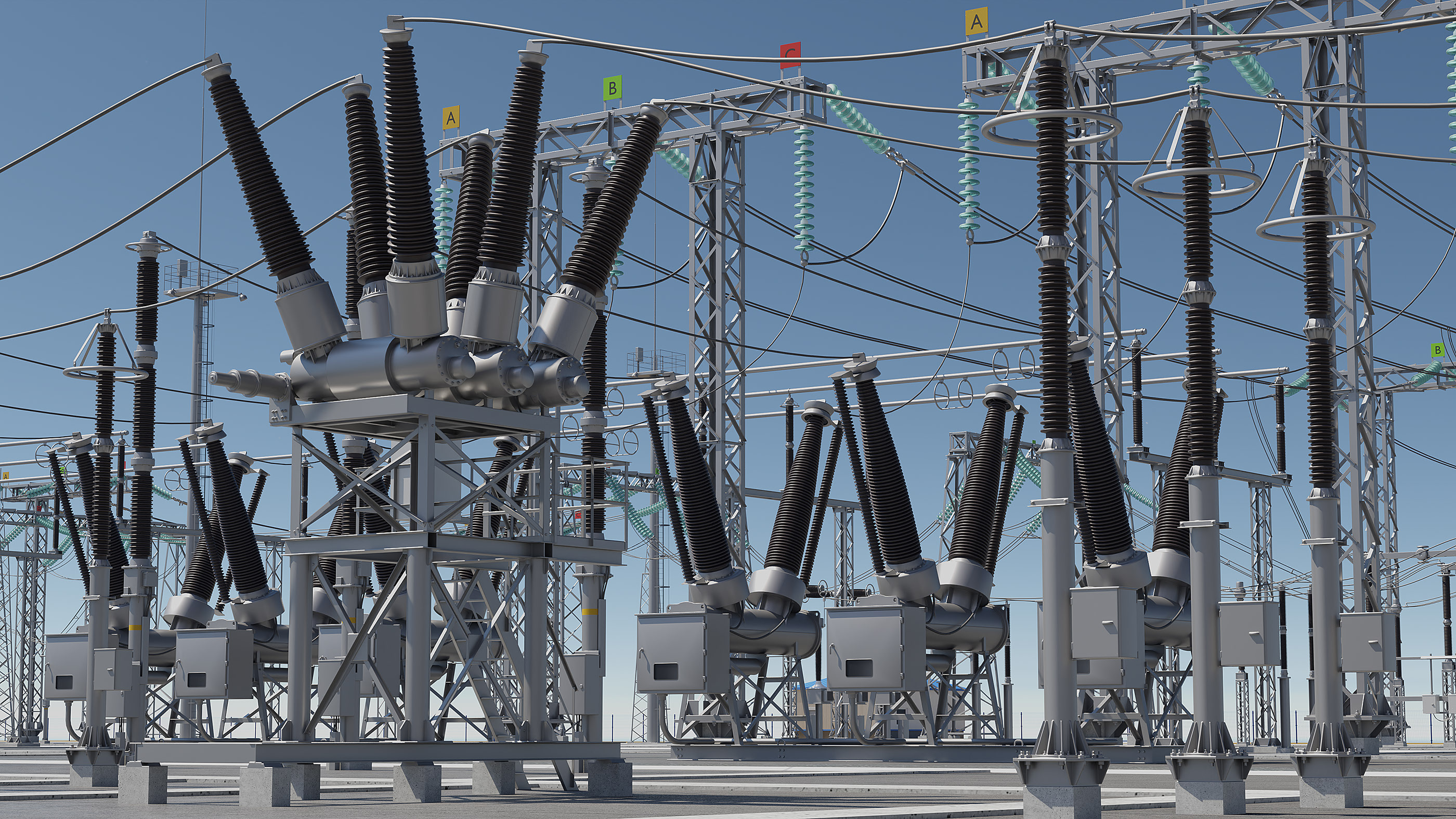

• Outdoor substations

• 33kV and above distribution systems

• Renewable energy plants and industrial networks

2.How Does a VCB Work?

In practice, a VCB operates as a coordinated system. When a fault is detected, the protection relay triggers the operating mechanism. Contacts inside the vacuum interrupter separate, forming an arc that is quickly extinguished in the vacuum environment. The contact gap regains dielectric strength within milliseconds.

The combination of precise mechanism, vacuum interrupter, and protection system ensures safe interruption and prevents stress on transformers, feeders, or motors.

For a deeper dive into the VCB structure and principle, see: HV Vacuum Circuit Breaker Explained: What It Is & How It Works

3.VCB vs ACB: Choosing the Right Circuit Breaker

Early in my career, I visited a utility site where the engineering team was evaluating both VCB and ACB for a 20kV feeder. We realized that while ACBs are suitable for low-voltage distribution, VCBs are superior for medium and high-voltage applications due to better dielectric recovery, lower maintenance, and reliability under frequent switching.

Compare the two technologies in detail: HV VCB vs ACB: Which Circuit Breaker Is Safe for High-Voltage Systems?

4.Indoor vs Outdoor VCB

In my experience, the installation environment often determines the real-life performance of a VCB. Early in my career, I visited a substation project where indoor-rated breakers were initially chosen for outdoor feeders. Predictably, maintenance frequency increased and equipment stress was higher than anticipated. That experience reinforced a simple lesson: selecting the right breaker type starts with understanding where it will operate.

The main differences are straightforward:

• Indoor VCBs are designed for controlled environments such as metal-clad switchgear and electrical rooms.

• Outdoor VCBs must withstand rain, dust, humidity, UV exposure, and temperature fluctuations.

• Environmental factors such as altitude, pollution level, and coastal conditions can significantly influence insulation performance and service life.

Many engineers focus on voltage and current ratings first, but I often find that environmental conditions have a greater impact on long-term reliability than the nameplate itself.

Need help deciding which installation type fits your project? Read: Outdoor vs Indoor HV Vacuum Circuit Breaker – Which One Should You Choose?

5.Selecting a VCB for 33kV Systems

Once the installation environment is clear, the next step is matching the breaker to the system voltage and fault level.

For 33kV applications, selection involves more than simply choosing a breaker with the correct voltage rating. Engineers should pay attention to:

• Rated voltage and insulation level

• Rated current

• Short-circuit breaking capacity

• Lightning impulse withstand capability

• Environmental conditions

• Renewable energy-related switching duties

In many projects, a 40.5kV rated VCB is selected for a 33kV system to provide additional insulation margin and improve resilience against transient overvoltages.

For wind and solar substations, the X/R ratio also becomes important because it affects the DC component of fault current and the actual interruption duty experienced by the breaker.

For 33kV selection details, start here: Which Circuit Breaker is Best for 33kV?

For wind and solar substations, also review: Managing X/R Ratio in Renewable Energy Substations: How to Select 33kV VCBs for Wind and Solar Power Plants

6.Application-Based VCB Selection

After defining voltage and environment, I usually focus on the application itself.

The same breaker that performs perfectly in an industrial plant may not be the best choice for a solar substation or a mining operation.

This is why I rarely recommend a breaker based solely on electrical ratings. The operating environment and application often determine the most suitable design.

For renewable energy grid applications, read: Vacuum Circuit Breakers: Key Role in Renewable Energy Integration and Beyond

For solar substation projects, continue with: Outdoor Vacuum Circuit Breaker Selection for Solar Power Substations

7.Ratings and Technical Verification

After the application is clear, I usually move to the rating sheet. This is where many buying mistakes happen.

The breaker may appear suitable based on voltage alone but fail to meet the required breaking capacity, insulation level, or operating requirements.

The key items to verify are:

• Rated voltage

• Rated current

• Short-circuit breaking current

• Short-time withstand current

• Insulation level / BIL

• Mechanical life

• Control voltage

• IEC 62271-100 compliance

If I had to focus on one specification first, it would be breaking capacity. A breaker that cannot safely interrupt the maximum fault current is simply the wrong breaker, regardless of any other feature.

Before comparing quotations, use this guide to check what really matters: How to Vet VCB Brands for Breaking Capacity and Reliability

8.Vetting a Reliable Manufacturer

Once the technical ratings are confirmed, the next question becomes whether the supplier can actually deliver what the datasheet promises.

For international projects, I typically focus on five areas:

• Verified type test reports

• Routine factory testing capability

• Vacuum interrupter traceability

• Engineering support responsiveness

• Factory transparency and verification

A good supplier should be able to explain why a particular breaker fits your application, not just send a price list.

In my experience, the most successful projects are usually the ones where the supplier acts as a technical partner rather than simply a vendor.

To verify supplier capability remotely, read: Remote Factory Audit: How to Verify a Reliable Chinese VCB Manufacturer

For a broader market view, see: Top 10 High Voltage Equipment Manufacturers in China

9.Maintenance and Reliability

A high-quality VCB can operate reliably for many years, but reliability doesn't happen by accident.

Most failures I encounter start as small issues that go unnoticed during routine inspections.

The most important maintenance checks include:

• Visual inspection

• Operating mechanism inspection

• Contact resistance testing

• Insulation testing

• Vacuum integrity testing

• Operation counter review

• Fault history review

Preventive maintenance is usually far less expensive than emergency replacement.

More importantly, it provides insight into the actual condition of the breaker rather than relying on age alone.

Use this practical checklist before your next inspection: Vacuum Circuit Breaker Maintenance Checklist – Keep Your HV VCB Running Reliably in 2026

To understand what usually goes wrong first, read: Top 5 Causes of Circuit Breaker Failure and How to Prevent Them

10.Vacuum Interrupter Replacement

Maintenance often leads to one final question: should you replace the vacuum interrupter, repair the mechanism, or replace the entire breaker?

The decision should always be based on evidence.

The most common warning signs include:

• Failed vacuum integrity test

• Excessive contact erosion

• Abnormal contact resistance

• Poor timing or travel results

• Visible damage

• Severe fault interruption history

One mistake I frequently see is replacing components before identifying the root cause. A timing issue may originate from the operating mechanism rather than the vacuum bottle. Likewise, high contact resistance may be caused by connections instead of the interrupter itself.

Good diagnosis usually saves both time and money.

Not sure whether to replace the vacuum bottle or the whole breaker? Read: When Should You Replace a Vacuum Interrupter in a VCB?

11.The Key Is Choosing the Right Partner

After working on substations, industrial plants, renewable energy projects, and switchgear upgrades for many years, I've learned one important lesson:

The breaker itself is only part of the solution.

The real difference often comes from working with a partner who understands the application, the operating environment, and the practical realities of high-voltage systems.

A knowledgeable partner can help evaluate:

• System voltage and fault level

• Breaking capacity requirements

• Environmental conditions

• Maintenance strategy

• Retrofit feasibility

• Long-term reliability objectives

At Fenarro, this is how we approach every project. We start by understanding the system rather than immediately recommending a product.

Sometimes the right answer is a new VCB.

Sometimes it is a retrofit.

And sometimes the best solution is simply improving maintenance practices and extending the life of existing equipment.

Ultimately, successful VCB projects are rarely about choosing the most expensive breaker. They're about making informed decisions based on real operating conditions and having the right technical support when those decisions matter most.

FAQ

Q: What is a high voltage vacuum circuit breaker and how does it work?
A: A high voltage vacuum circuit breaker uses a vacuum interrupter to extinguish arcs quickly, allowing it to safely interrupt fault currents in medium and high-voltage systems.

Q: How do I decide between a VCB and an ACB for my system?
A: VCBs are typically used for medium and high-voltage applications, while ACBs are designed for low-voltage systems. The decision mainly depends on system voltage and switching requirements.

Q: Which VCB is suitable for 33kV systems?
A: Most 33kV applications use 36kV or 40.5kV rated VCBs, selected based on fault level, insulation requirements, and operating environment.

Q: How do I choose between indoor and outdoor VCBs?
A: Choose indoor VCBs for switchgear rooms and controlled environments, while outdoor VCBs are designed to withstand weather, pollution, humidity, and temperature variations.

Q: When should a vacuum interrupter be replaced?
A: Replacement is recommended when testing shows vacuum loss, excessive contact wear, abnormal resistance, mechanical issues, or visible damage.

Q: How often should a VCB be maintained?
A: Maintenance intervals depend on operating conditions, but regular inspections should include mechanism checks, contact resistance testing, insulation testing, and vacuum integrity verification.
