Can An Indoor VCB Be Installed in Outdoor Switchgear?

An indoor vacuum circuit breaker (VCB) is normally designed for installation inside metal-enclosed switchgear or a protected electrical room. But can it also be installed inside switchgear located outdoors?

The short answer is yes—an indoor VCB may be used inside properly designed outdoor switchgear or an enclosed prefabricated substation. However, the breaker should not be treated as an outdoor product by itself. The complete assembly must protect it from rain, dust, condensation, pollution, temperature extremes and other site conditions. Its electrical ratings, mechanical interfaces, control circuits and performance inside the enclosure must also be verified.

This article explains when an indoor VCB can be used in an outdoor substation, when a purpose-designed outdoor VCB is more appropriate, and what project information engineers and buyers should confirm before selection.

Quick Answer: Can an Indoor VCB Be Used Outdoors?

The answer depends on how and where the breaker is installed.

The location of the switchgear does not automatically change an indoor VCB into an outdoor VCB. Suitability depends on the protection and operating conditions provided by the complete enclosure.

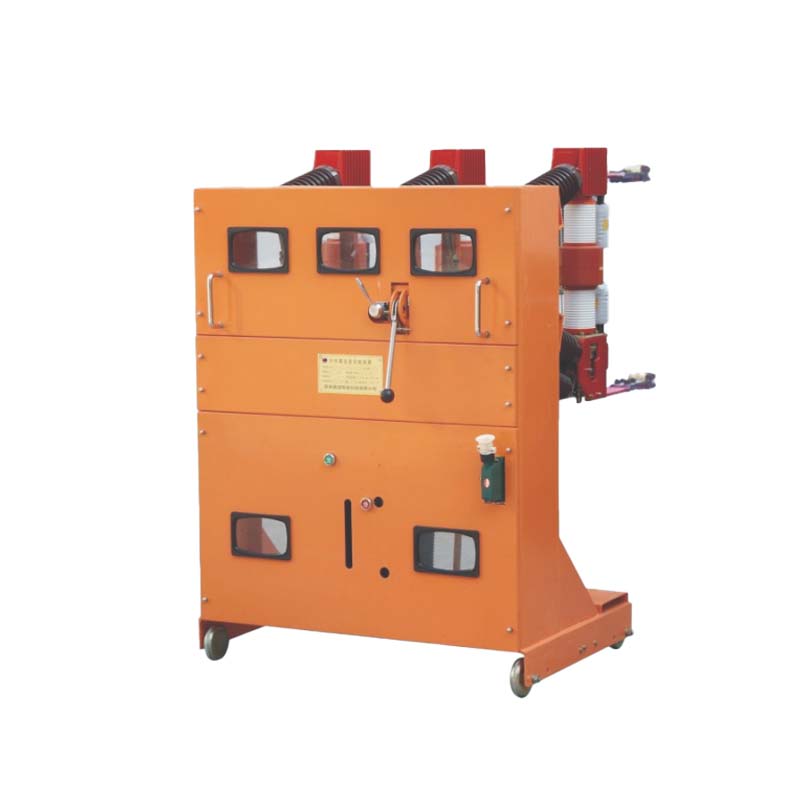

What Is an Indoor Vacuum Circuit Breaker?

An indoor vacuum circuit breaker interrupts normal operating current and specified fault current inside sealed vacuum interrupters. It is commonly installed as a fixed, withdrawable or side-mounted component in medium-voltage switchgear.

Typical applications include:

• Indoor substations

• Industrial electrical rooms

• Metal-clad switchgear

• Transformer and feeder protection

• Power plant auxiliary systems

• High-voltage motor control and protection

Fenarro’s indoor high voltage vacuum circuit breakers include configurations designed for integration with switchgear systems. The correct model must be selected according to the rated voltage, rated current, short-circuit level, operating duty and switchgear interface.

An indoor VCB generally relies on the surrounding switchgear or electrical room to provide an appropriate operating environment. Its application therefore cannot be evaluated independently from the assembly in which it is installed.

What Is an Outdoor Vacuum Circuit Breaker?

An outdoor vacuum circuit breaker is configured for installation in an outdoor power network. Depending on the model, it may use pole-mounted, frame-mounted or other outdoor arrangements with external insulation, weather-resistant construction and a protected operating mechanism.

Typical applications include:

• Overhead distribution feeders

• Rural distribution networks

• Renewable energy collection systems

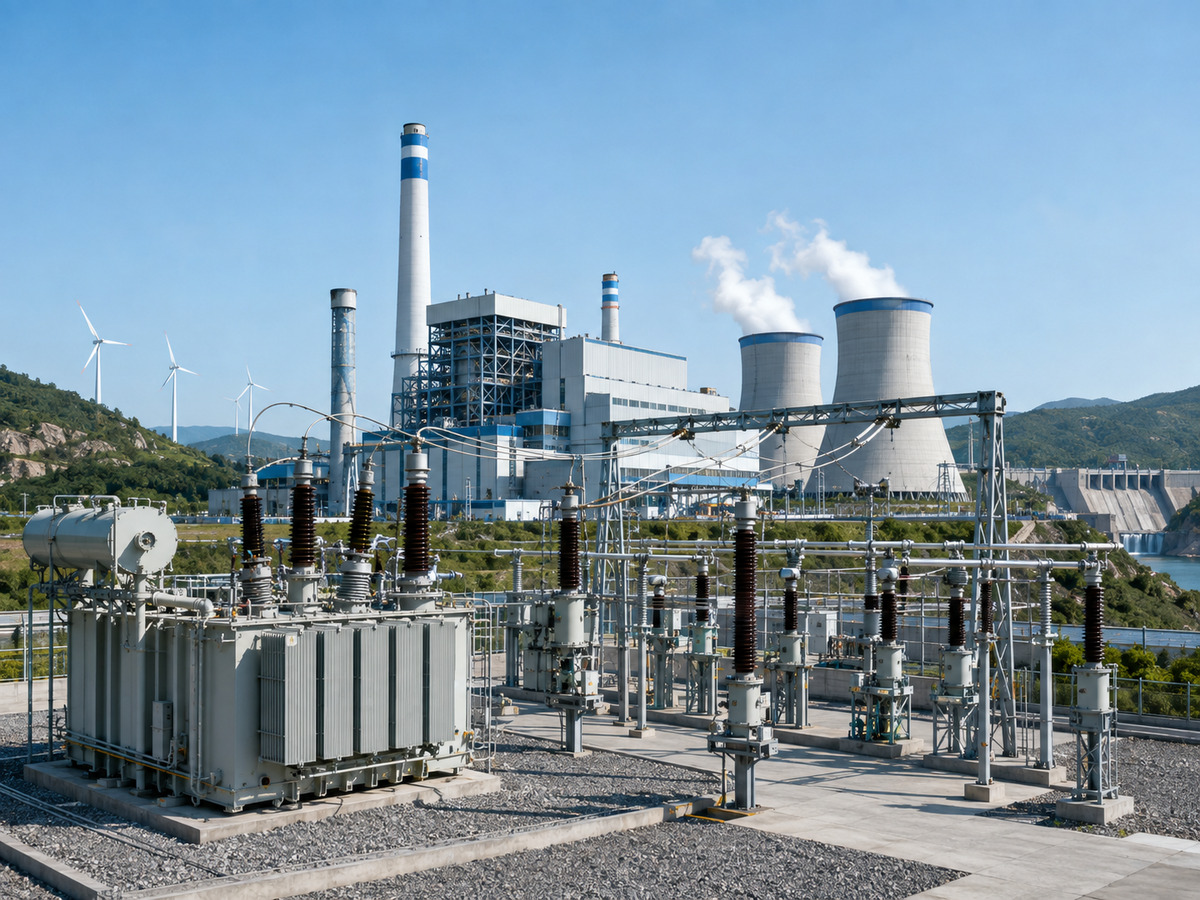

• Outdoor substations

• Feeder sectionalizing and protection

Fenarro’s outdoor high voltage vacuum circuit breakers are intended for outdoor distribution and substation applications. Each model still needs to be checked against the actual system voltage, fault current, control scheme and site environment.

The key distinction is not the vacuum interrupter itself. Both indoor and outdoor VCBs may use vacuum interruption technology. The difference is the complete equipment configuration and the service environment for which it is designed.

When Can an Indoor VCB Be Installed Inside Outdoor Switchgear?

An indoor VCB may be considered when the outdoor installation includes a suitable protective enclosure. Three arrangements are common.

Inside Outdoor Metal-Enclosed Switchgear

An indoor VCB can be integrated into an outdoor metal-enclosed switchgear assembly when the enclosure is designed to create suitable internal service conditions.

The project team should confirm:

• Protection against rain, wind-blown dust and foreign objects

• Control of condensation and internal humidity

• Ventilation and temperature-rise performance

• Required internal clearances and insulation levels

• Cable-entry sealing and gland arrangements

• Reliable operation of shutters, interlocks and earthing systems

• Safe access for operation and maintenance

• Type-test and routine-test requirements for the complete assembly

The enclosure must do more than physically cover the breaker. It forms part of the complete high-voltage switchgear system.

Inside a Prefabricated Substation

An indoor VCB may also be installed in the high-voltage compartment of an outdoor prefabricated substation. In this arrangement, the prefabricated enclosure separates the switchgear from direct outdoor exposure while supporting cable connections, ventilation, access and personnel protection.

The breaker, switchgear compartment, transformer and low-voltage section must be evaluated as coordinated parts of the installation. Thermal conditions inside the enclosure are particularly important because solar radiation, transformer heat and restricted airflow may raise the internal temperature.

Inside a Weather-Protected Electrical Room

Some outdoor substation sites include a dedicated electrical room or control building. An indoor VCB may be suitable when the room maintains the environmental conditions required by the equipment.

The assessment should consider:

• Room temperature and ventilation

• Humidity and condensation control

• Dust and pollution ingress

• Cable trench and floor conditions

• Heating or dehumidification requirements

• Maintenance access and safety procedures

In all three arrangements, the indoor VCB remains an indoor component operating within a protected environment.

When Should an Indoor VCB Not Be Used Outdoors?

An indoor vacuum circuit breaker should not normally be selected when it will be directly exposed to outdoor conditions without a suitable, verified enclosure.

Risk conditions include:

• Direct rain, snow or ice exposure

• Wind-blown dust or sand

• Salt fog or severe industrial pollution

• Condensation on insulation and control components

• Solar heating and wide temperature variation

• Insects or small animals entering the mechanism area

• Corrosion of metal parts and secondary wiring terminals

• External insulation distances that do not match the site conditions

Placing an indoor VCB under a simple roof or inside a basic cabinet does not automatically make the installation suitable. The enclosure design, temperature rise, insulation performance, interlocks, access and protection against environmental exposure must be considered together.

Indoor VCB in Outdoor Switchgear vs Purpose-Designed Outdoor VCB

These two solutions serve different installation arrangements.

Neither arrangement is automatically better. Selection should follow the network layout, switching duty, environment, maintenance strategy and project specification.

Fenarro’s guide to outdoor and indoor HV vacuum circuit breakers provides a broader comparison, while this article focuses specifically on integrating an indoor VCB into outdoor switchgear.

What Information Should You Send to the Manufacturer?

For an accurate evaluation, provide the following information whenever available:

For projects involving line bays, transformer bays or enclosed outdoor distribution equipment, review Fenarro’s high voltage equipment for outdoor substation applications.

Fenarro VCB Selection and Interface Support

Fenarro provides indoor and outdoor vacuum circuit breakers for different power distribution applications. Before recommending a configuration, the equipment position, electrical ratings, environmental conditions and mechanical interfaces should be reviewed together.

Project support can include:

• Indoor or outdoor VCB selection

• Rated voltage and insulation confirmation

• Short-circuit rating review

• Fixed or withdrawable configuration

• Operating mechanism and control-voltage matching

• Switchgear interface and installation-dimension review

• Technical drawing confirmation

• Replacement and retrofit evaluation

For a wider overview of available configurations, visit the Fenarro high voltage vacuum circuit breaker range.

Conclusion

An indoor vacuum circuit breaker can be installed inside outdoor switchgear when the complete enclosure creates suitable operating conditions and the breaker is correctly matched to the system duty and switchgear interfaces. It should not normally be exposed directly to rain, dust, condensation, pollution or uncontrolled outdoor temperatures.

The decision must consider the breaker and enclosure as one coordinated system. Confirm environmental protection, thermal performance, insulation level, fault ratings, mechanical dimensions, control circuits and applicable project standards before approving the configuration.

Planning a new outdoor switchgear installation or replacing an existing breaker? Send Fenarro your single-line diagram, fault level, enclosure drawing and site conditions for technical review.
