Fenarro Electric Remote Operating Mechanism Device for Outdoor AC High-Voltage Isolation Switch

Availability:

Quantity:



Inquire Add to Basket

Type:
Quad
Certification:
CCC, RoHS, ISO9001, CE
Operation:
Remote ON / OFF
Shell Material:
Stainless Steel
Transport Package:
Wooden Case
Trademark:
Fenarro

Product Description

1. MIAN PURPOSE AND SCOPE OF APPLICATION
The FR series electric remote operating device is an outdoor product used for operating high-voltage disconnect switches. It can be remotely controlled, or locally controlled using electric control or manual operation with a handle.

2. WORK CONDITIONS AND ENVIRONMENT OF THE PRODUCT:
2.1. Ambient Temperature: 50ºC~150ºC;
2.2. Altitude: not exceeding 2000m;
2.3. Wind Speed: not exceeding 34m/s;
2.4. Ice Coating Thickness: not exceeding 10mm;
2.5. Seismic Intensity: not exceeding 8 degrees.
2.6 Air pollution level: applicable to areas with pollution levels below Grade IV and Grade III.
2.7 No frequent intense vibrations, no flammable, explosive, or chemically corrosive substances.
2.8 Solar radiation intensity: 1000W/m2 (noon on a sunny day).
2.9. Not suitable for environments with highly conductive gases, dust or substances that can significantly impair its electrical performance.
2.10. Not suitable for installation in non-horizontal locations.
2.11. Power supply voltage variation range: 85% to 110% of the rated voltage.

3. BASIC PARAMETERS

ITEMS			VALUE
	Rated voltage	V	AC380/DC220/DC110
Electric motor (inside the device)	Rated power	w	600
	Rated speed	R/min	1400
	Rated current	A	1.7/2.5/5
	Starting current	A	≤10
Control circuit voltage		V	AC380/AC220/DC220/DC110
Control circuit current		A
Rated output torque		N • m	1300
Opening (closing) operation time		S	≤7≤14
Output angle of the operating Device output shaft			90 Degree /180 Degree
Device weight		KG	50
Other model			FR2/FR5/FR6/FR9

4. INSTALLATION METHOD

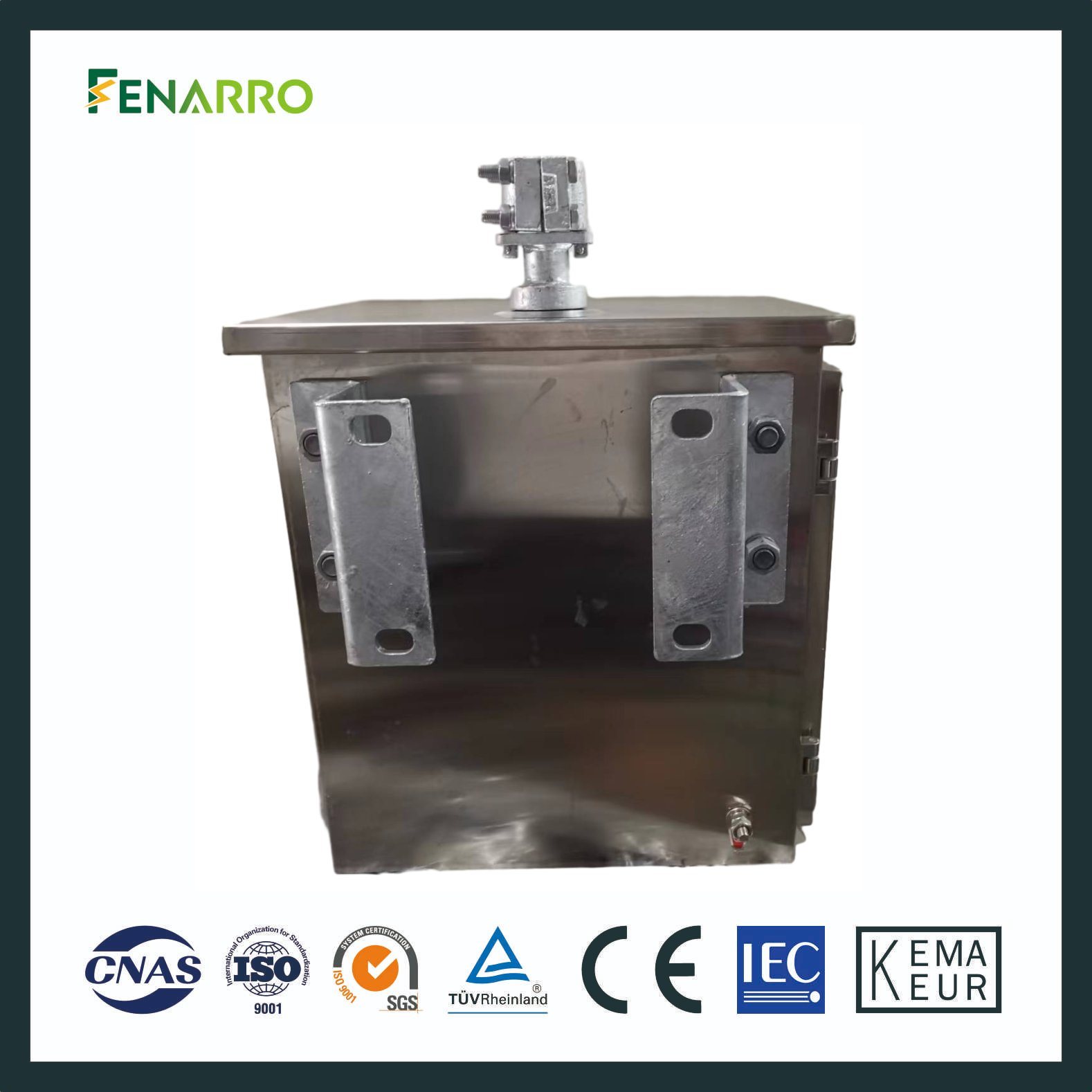

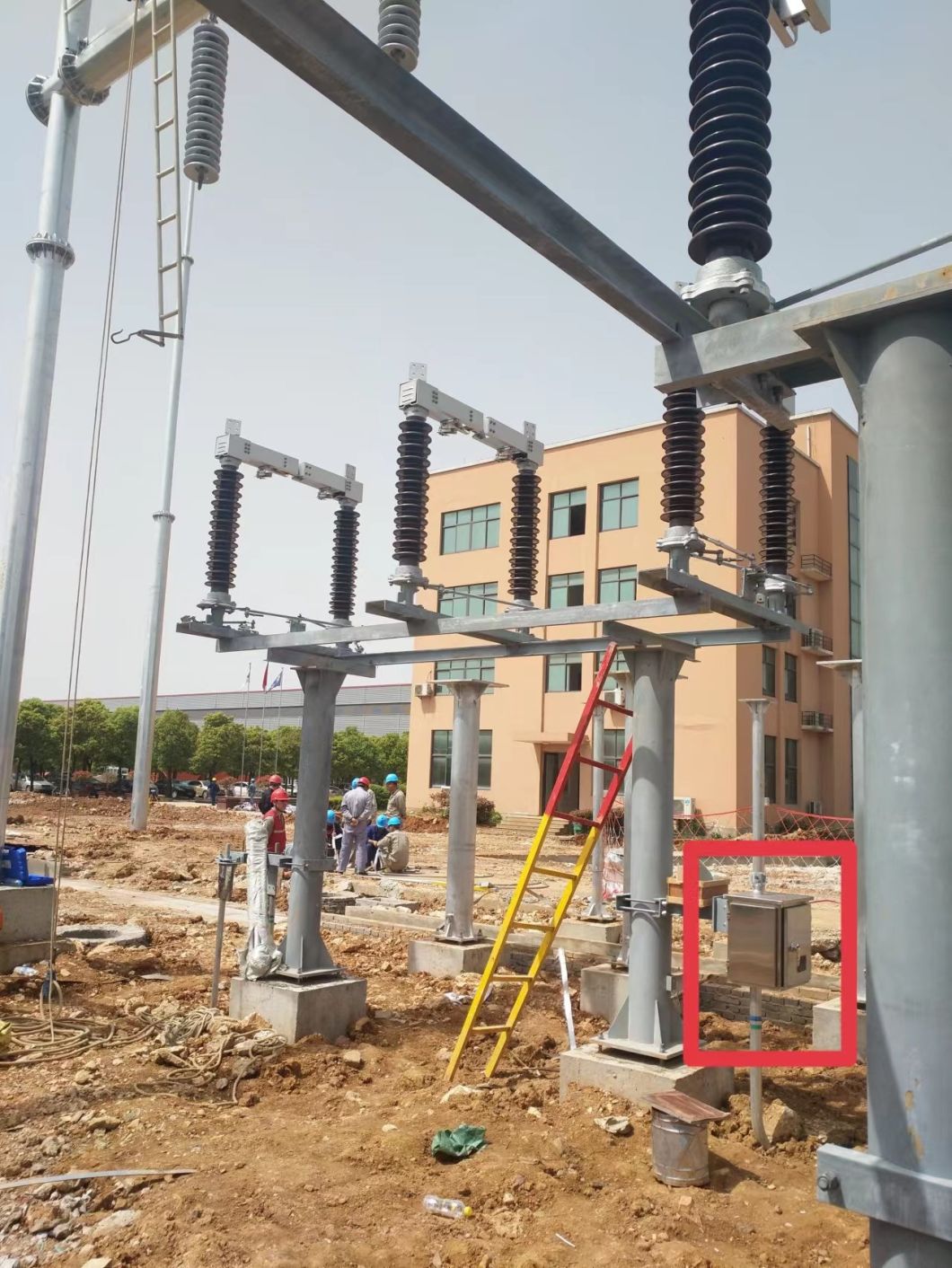

Installation can be done in either a forward or sideways orientation horizontally, but it must not be installed at an angle. Below picture or reference.

Fenarro Electric Remote Operating Mechanism Device for Outdoor AC High-Voltage Isolation Switch

Fenarro Electric Remote Operating Mechanism Device for Outdoor AC High-Voltage Isolation Switch

5. LEAD TIME:
The delivery time is usually determined by the type and quantity of the product, typically ranging from 15 to 20 days.
