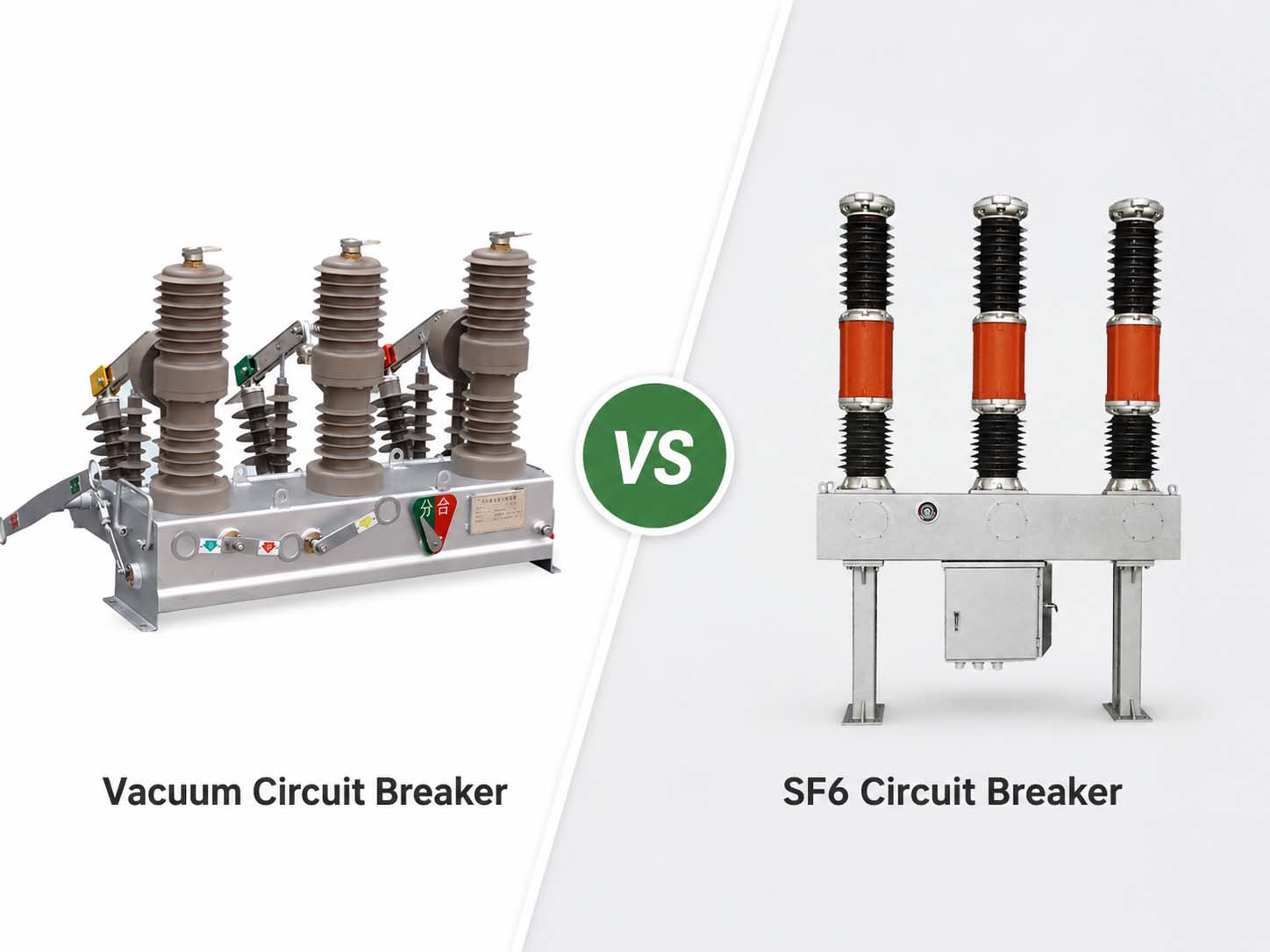

Vacuum Circuit Breaker vs SF6 Circuit Breaker: Which Fits Your Project?

Introduction

If you are comparing vacuum circuit breakers and SF6 circuit breakers for a project, the decision is rarely as straightforward as choosing the same voltage class and moving on. In practice, many selection problems begin much earlier—when buyers focus only on rated voltage, but overlook fault level, operating frequency, installation conditions, maintenance capability, and project specifications. As a result, the breaker may fit the drawing, yet still create unnecessary risk in operation, maintenance, or long-term project cost.

That is exactly why VCB and SF6 circuit breakers should not be evaluated by arc-extinguishing medium alone. Each technology has its own strengths, limitations, and more suitable application range. This article explains the practical differences between VCB and SF6 circuit breakers, helping buyers identify the more appropriate product direction and understand what should be confirmed before purchasing.

What Is a Vacuum Circuit Breaker?

Fenarro 12–40.5kV Vacuum Circuit Breaker

A vacuum circuit breaker, or VCB, interrupts current inside a sealed vacuum interrupter. Instead of using gas to control the arc, it relies on the absence of a conductive medium:

• When the contacts separate, a temporary arc forms from metal vapor released by the contact surfaces.

• In an AC circuit, the current naturally passes through zero. At that point, the metal vapor quickly condenses, causing the arc to disappear.

• Because there is almost no gas left to conduct electricity, the contact gap rapidly recovers its insulation strength and reduces the possibility of restriking.

This rapid dielectric recovery supports reliable fault interruption and frequent switching. Moreover, because no insulating gas system is required, routine maintenance can focus primarily on the operating mechanism, contact wear, and vacuum-interrupter integrity.

These operating strengths are also reflected in Fenarro’s high-voltage vacuum circuit breaker range. Available indoor and outdoor configurations support different installation environments, while selected models provide short-circuit breaking currents of up to 40kA and mechanical endurance of up to 30,000 operations—helping deliver dependable protection in substations, industrial distribution systems, and outdoor power networks.

For a deeper technical reference covering VCB construction, ratings, applications, selection, and maintenance, see Fenarro’s High-Voltage Vacuum Circuit Breaker Guide 2026.

What Is an SF6 Circuit Breaker?

An SF6 circuit breaker uses sulfur hexafluoride gas to perform two closely related functions: extinguishing the arc and insulating the open contact gap. Rather than removing the surrounding medium, as a VCB does, it uses the gas to actively control the interruption process:

• When the contacts open, an arc forms through the ionized SF6 gas.

• The gas flow cools the arc and captures free electrons, gradually reducing its conductivity as the current approaches zero.

• After the arc is extinguished, the SF6 surrounding the contacts continues to provide strong electrical insulation and helps prevent restriking.

Because the same medium supports both interruption and insulation, SF6 technology is well suited to applications with demanding voltage, fault-current, and insulation requirements. However, its performance depends on maintaining the correct gas density and reliable sealing throughout the equipment’s service life.

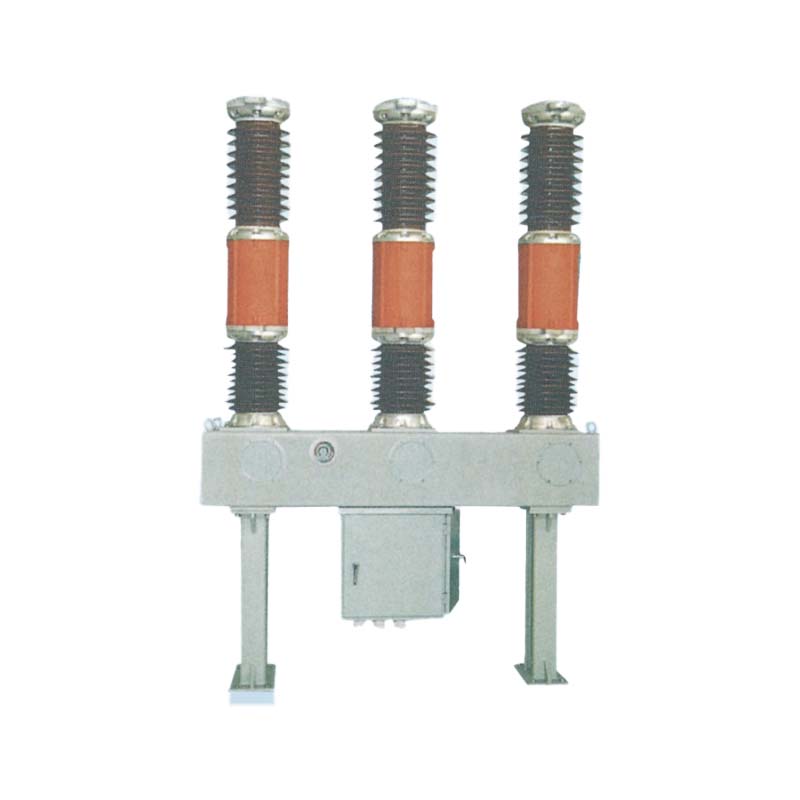

Fenarro SF6 Circuit Breaker for High-Voltage Operation

Accordingly, Fenarro’s outdoor high-voltage SF6 circuit breakers incorporate gas-density supervision and temperature-and-pressure monitoring to help maintain stable operating conditions. Selected configurations also provide short-circuit breaking currents of up to 50kA and are designed for demanding outdoor environments, supporting consistent insulation and fault-clearing performance over long-term operation.

To understand how these characteristics translate into substation and transmission applications, read Fenarro’s guide to SF6 circuit breakers in modern power systems.

VCB vs SF6 Circuit Breaker: Core Differences

Although both devices interrupt fault current, the medium used around the contacts leads to clear differences in application, maintenance, and long-term operation.

Among the factors above, three have the greatest influence on equipment suitability, operating workload, and long-term project risk: voltage and system application, operation and maintenance, and environmental and project requirements.

Voltage Range

VCBs are the mainstream choice for medium-voltage systems, with common equipment ratings from approximately 3.3kV to 40.5kV. They are widely used in utility distribution, industrial power systems, substations, and applications involving frequent switching.

SF6 circuit breakers have a longer and more established service history in high-voltage and extra-high-voltage networks. They are commonly used from 72.5kV upward, particularly in outdoor substations and transmission systems where insulation and fault-interruption requirements are more demanding.

The two technologies overlap mainly around 40.5kV, while selected vacuum designs are also available at 72.5kV. Within this overlap, VCBs are often preferred when frequent operation, lower maintenance, and the elimination of SF6 are priorities. SF6 may remain more suitable when the project requires established high-voltage insulation performance, a specified breaker structure, or compatibility with an existing system.

For projects within this overlapping range, Fenarro can compare the voltage class, short-circuit rating, operating duty, installation conditions, and project specifications, then recommend a suitable breaker type and corresponding model. This gives buyers a clearer direction before quotation and reduces the risk of later specification changes.

Maintenance Requirements

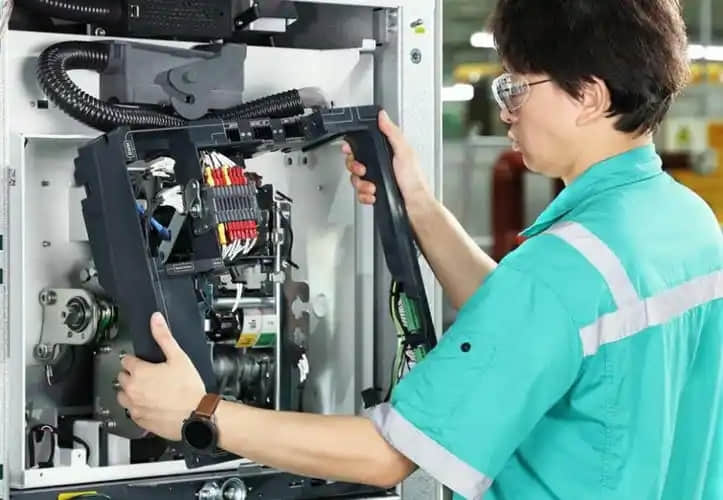

VCBs have minimal routine maintenance and simple upkeep.

VCBs require very little routine maintenance. Their interrupters are permanently sealed, contact erosion is limited, and the breaking unit has a relatively simple structure. Routine attention is therefore generally limited to occasional checks of the operating mechanism, control circuit, lubrication points, and vacuum integrity.For customers, this means a lower maintenance workload, fewer specialized tools, and easier long-term operation—especially at remote sites or facilities with limited maintenance resources. Their long mechanical life also makes VCBs particularly suitable for systems that operate frequently.

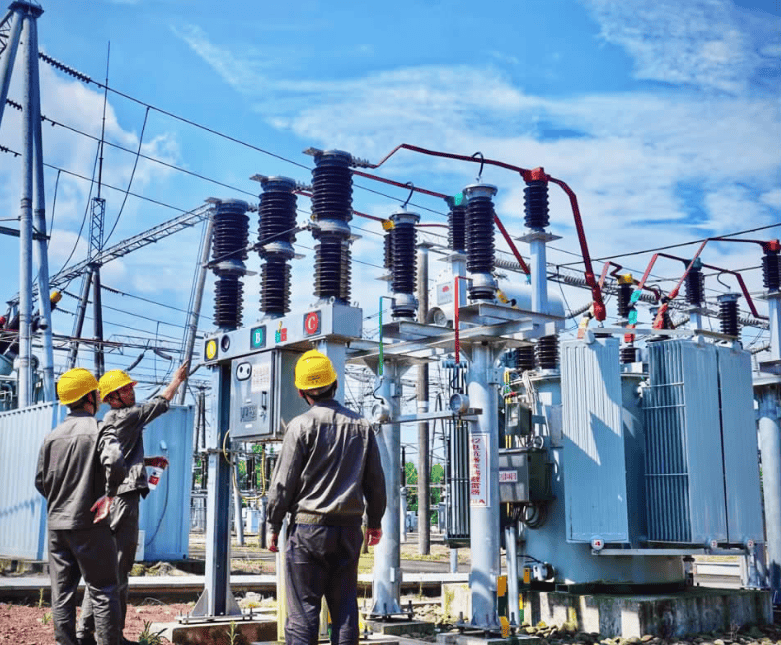

SF6 circuit breakers need targeted, specialist maintenance work.

SF6 circuit breakers require more specialized maintenance because reliable performance depends on both the mechanical system and the condition of the gas. Operators must monitor gas density, check sealing performance, investigate abnormal pressure changes, and follow controlled procedures when filling or recovering SF6.Consequently, SF6 projects require a more complete maintenance plan, including trained personnel, suitable gas-handling tools, clear inspection procedures, and dependable spare-parts support. These requirements do not make SF6 unsuitable, but they should be included in the project’s long-term operating plan from the beginning.

Environmental Impact

VCBs are generally regarded as the more environmentally friendly option because they contain no SF6. They create no SF6 leakage risk and require no gas recovery or end-of-life gas handling, helping project owners simplify environmental compliance and lifecycle management.

SF6 circuit breakers, however, provide strong insulation and interruption performance and remain a mature solution for many high-voltage applications. However, SF6 is a powerful greenhouse gas with a global warming potential thousands of times greater than CO₂, so its use requires stricter leakage prevention, gas monitoring, recovery procedures, maintenance records, and controlled end-of-life handling. With reliable sealing, density supervision, standardized servicing, and complete technical records, these risks can be managed throughout the equipment lifecycle.

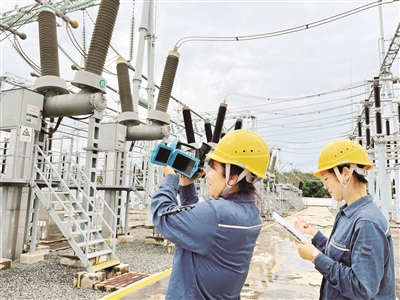

Fenarro provides maintenance guidance, technical support, and long-term spare-parts supply.

For buyers, this also means that supplier support should be considered alongside the breaker’s electrical performance. Fenarro provides the technical documents, test records, and compliance materials needed for project review and acceptance. After delivery, model-specific maintenance guidance, professional technical support, and long-term spare-parts supply help customers manage inspections, servicing, and component replacement with less uncertainty.

Match the Breaker to the Project Scenario

The application decision becomes clearer when buyers start with the system voltage, installation type, and operating duty rather than the arc-extinguishing medium alone.

In general, VCBs are the more common choice for medium-voltage distribution projects, particularly in industrial plants, indoor substations, outdoor feeders, and systems requiring frequent operation with minimal routine maintenance. For example, an 11kV network will typically use a 12kV-class VCB, while a 33kV project may require a 36kV or 40.5kV equipment class.

SF6 circuit breakers are better established in outdoor high-voltage substations and transmission projects, including line and transformer bays where insulation and fault-interruption requirements are more demanding. A 66kV system, for instance, commonly uses a 72.5kV-class breaker.

From Breaker Technology to a Project-Ready Configuration

Once the breaker technology has been selected, Fenarro offers three clear product paths:

• Indoor VCBs are designed for installation inside switchgear cabinets in substations, factories, mines, and other industrial facilities. Fixed, side-mounted, and withdrawable configurations are available for different cabinet structures and maintenance requirements.

• Outdoor VCBs are better suited to overhead distribution lines, pole-mounted installations, and outdoor substations where the breaker requires independent insulation and weather protection.

Buyers who have already selected vacuum technology can continue with Fenarro’s guide to choosing between indoor and outdoor VCBs.

• Outdoor SF6 circuit breakers are intended for higher-voltage substations and transmission applications. The final configuration should match the system voltage, short-circuit level, operating mechanism, environmental conditions, and required gas-monitoring functions.

What Buyers Should Confirm Before Purchasing

Once the breaker technology has been selected, the final model should be matched to the project’s electrical, installation, and operating requirements.

Conclusion

VCBs are generally better suited to medium-voltage distribution and industrial projects, while SF6 circuit breakers remain more established in high-voltage outdoor substations and transmission applications.

The comparison should give buyers an initial direction rather than an immediate final model. Before placing an order, compare the available options against the project voltage, fault level, operating duty, installation conditions, existing interfaces, and maintenance resources. This helps prevent specification mismatches, installation changes, and unexpected lifecycle costs.

For projects that still require technical confirmation, Fenarro can review the specifications, drawings, or existing breaker information and provide a suitable model recommendation, supporting documents, and quotation for supplier evaluation.Request a circuit breakers selection consultation today!

FAQ

Is a VCB better than an SF6 circuit breaker?

Neither technology is better for every project. VCBs are generally more suitable for medium-voltage systems, frequent switching, and low-maintenance operation, while SF6 circuit breakers are more established in high-voltage outdoor applications.

Which circuit breaker is suitable for an 11kV or 33kV system?

An 11kV system normally uses a 12kV-class VCB. A 33kV project may require 36kV- or 40.5kV-class equipment, depending on the applicable standard, insulation level, and installation conditions.

Can a VCB replace an existing SF6 circuit breaker?

It may be possible, but it is not always a direct replacement. The mounting dimensions, terminals, control voltage, interlocks, operating mechanism, and available installation space must be checked before selecting a retrofit solution.

What information is needed to select the correct breaker?

Buyers should provide the system voltage, highest equipment voltage, rated current, short-circuit breaking current, operating duty, installation type, control voltage, site conditions, applicable standard, and interface requirements.
