Fenarro Frgw13 Series High-Voltage Outdoor Grounding Disconnect/Isolation Switch

Availability:

Quantity:



Inquire Add to Basket

Type:
High-voltage
Structure:
Single-column Disconnector
Installation:
Outdoor High-voltage
Operation:
Electric
Grounding Mode:
Grounding
Movement Mode:
Horizontal Rotary Type

Product Description

1. PRODUCT OVERVIEW

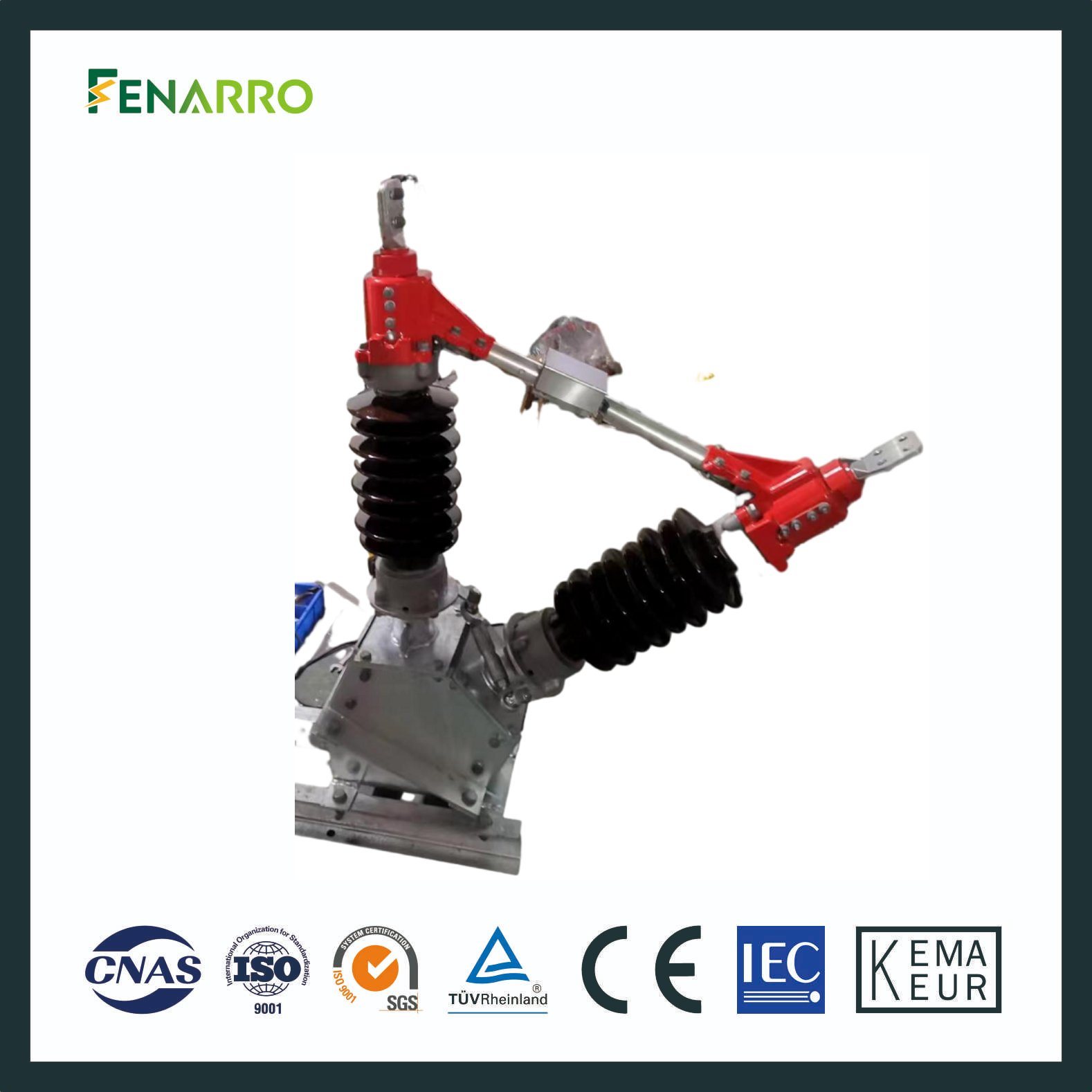

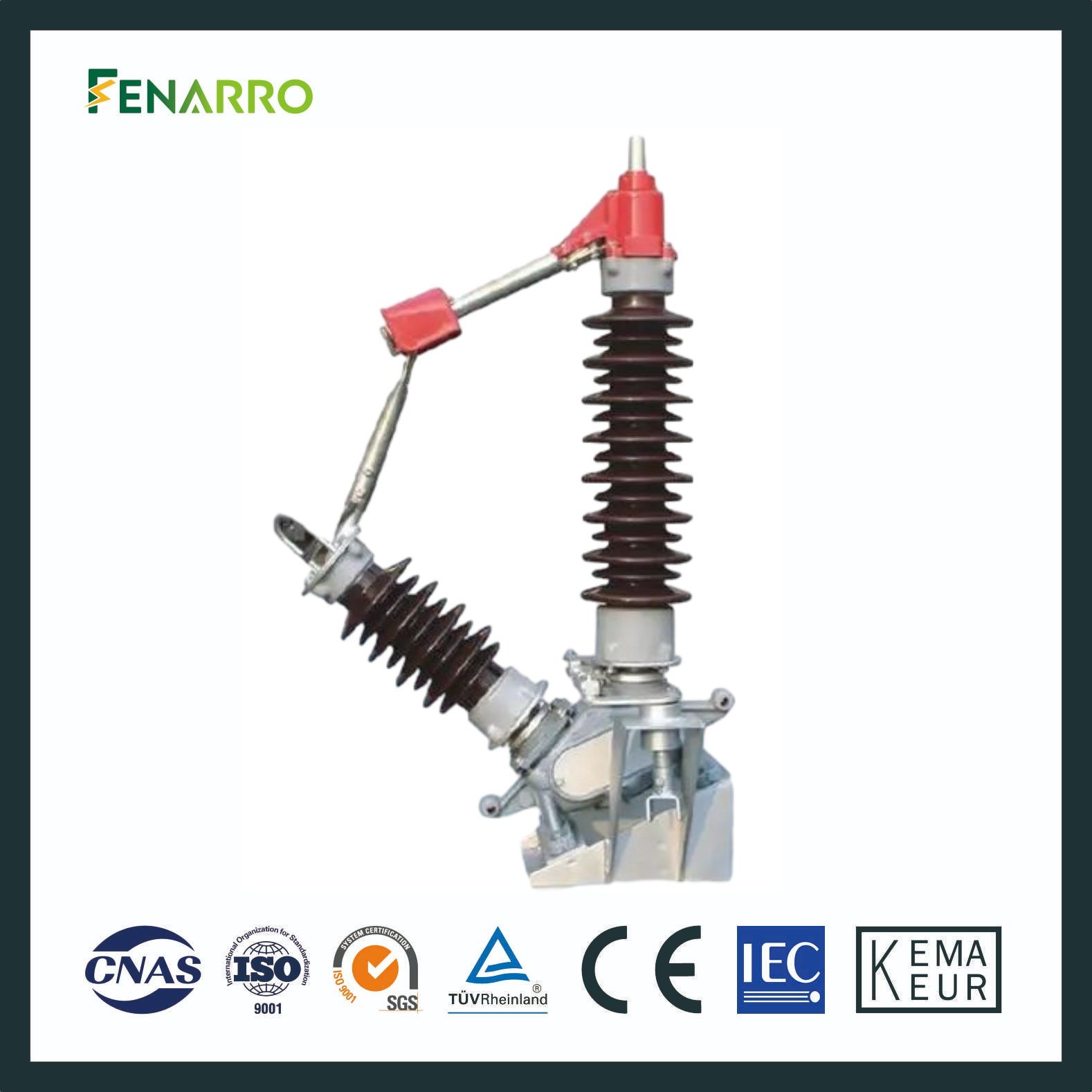

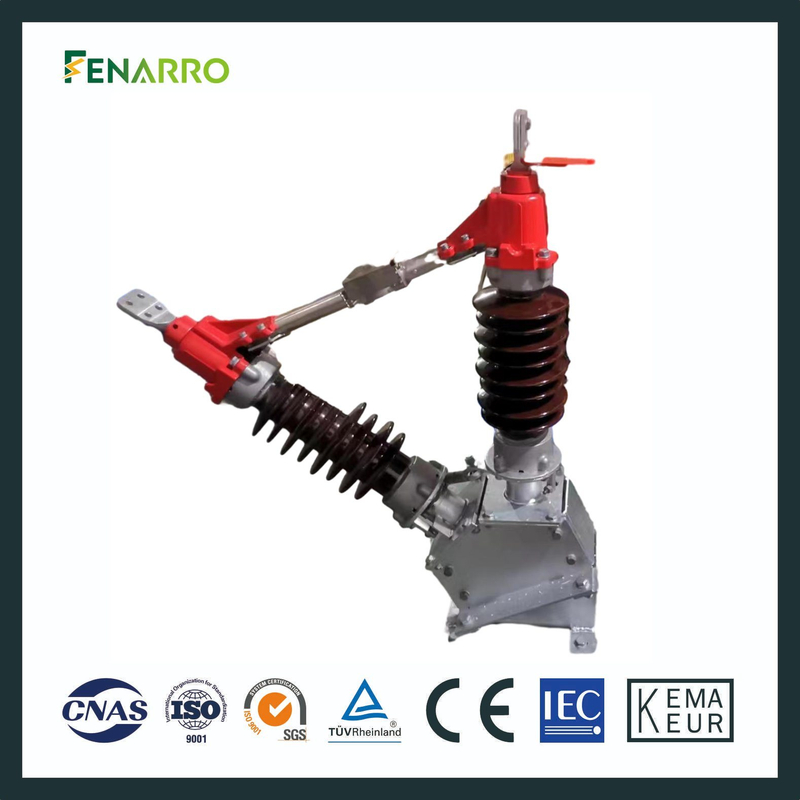

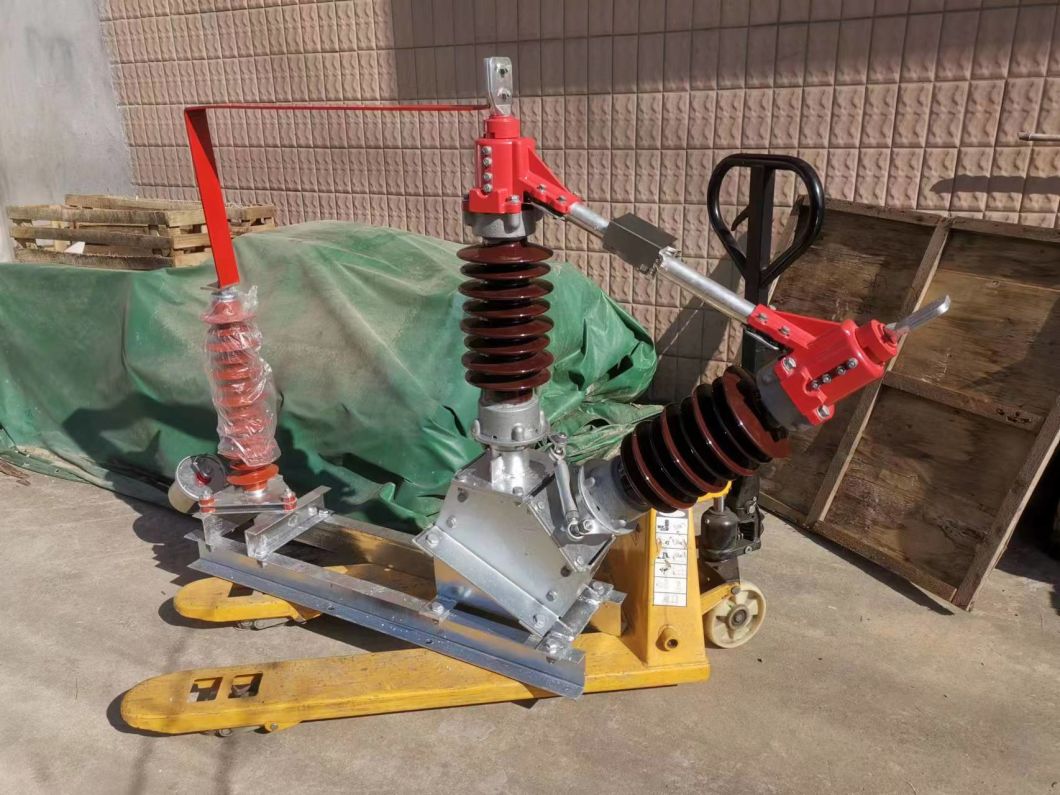

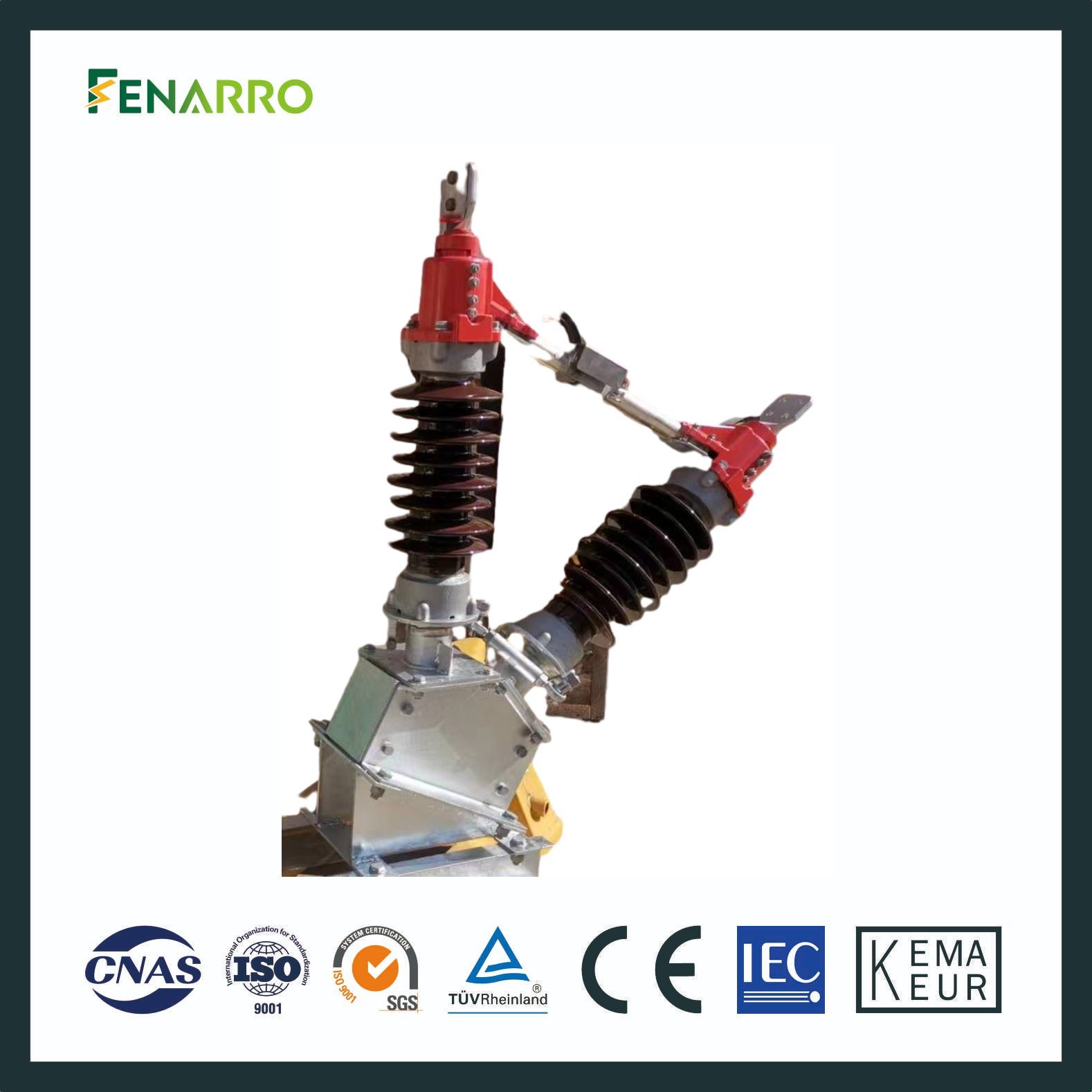

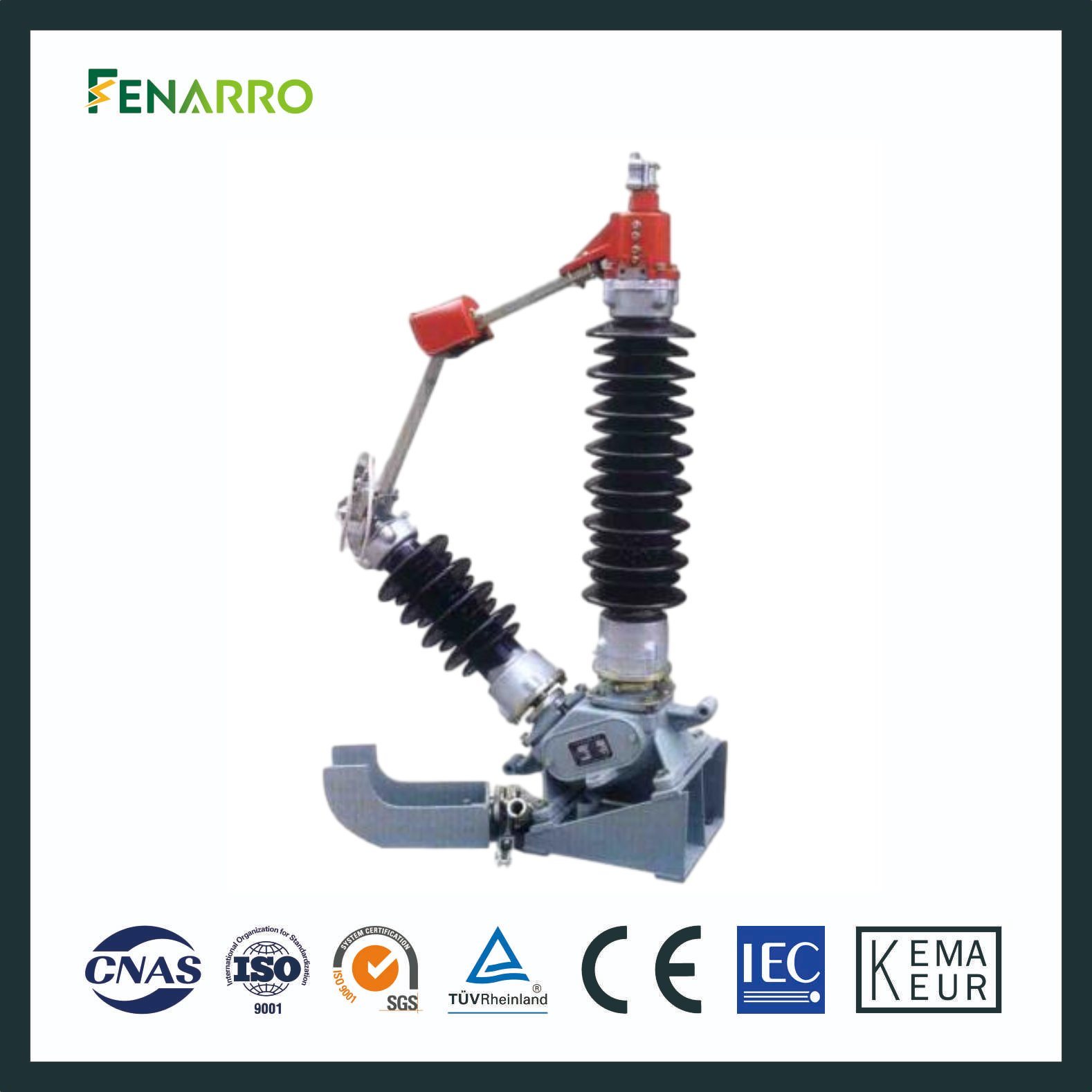

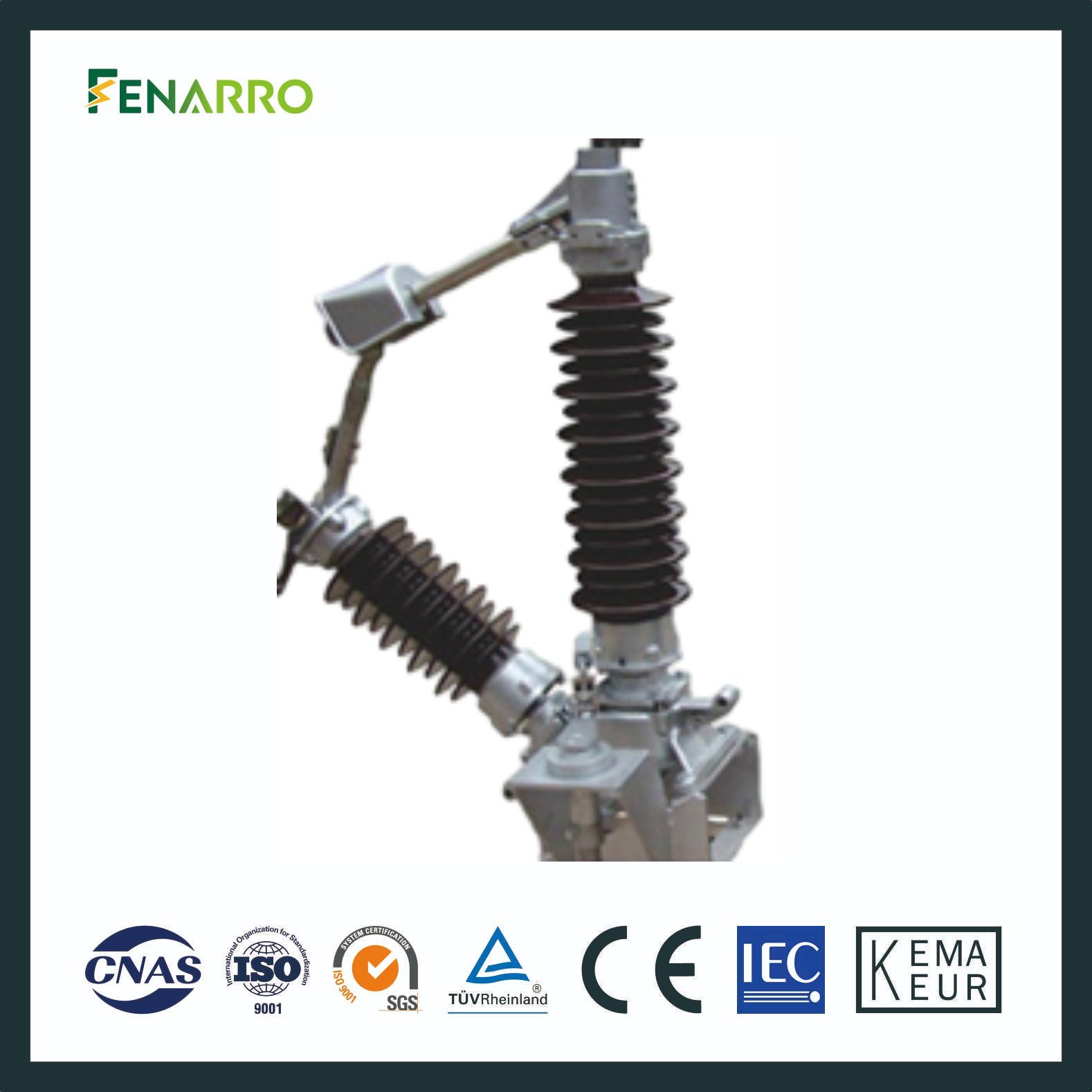

The FRGW13 series High-voltage Outdoor Grounding Disconnect/Isolation Switch is an AC 50Hz outdoor device used for connecting the neutral points of transformers during load-free conditions. The isolation switch consists of a bracket, base, pillar insulator, contact, and wiring board. The pillar insulators and conductive parts are installed on the base, with the angle between the two pillar insulators being 50°. The base is fixed on a bracket inclined at 25°. The bracket is equipped with a shaft connected to the operating mechanism. It can be equipped with the CS17 manual operating mechanism or the CJ6 electric operating mechanism.
Fenarro Frgw13 Series High-Voltage Outdoor Grounding Disconnect/Isolation Switch

Fenarro Frgw13 Series High-Voltage Outdoor Grounding Disconnect/Isolation Switch

2. PRODUCT FEATURES
2.1 This isolation switch adopts a double-pillar center-opening structure with a rotating contact, which has the ability to self-clean the contact and improve contact reliability.
2.2 The rotating part of the isolation switch is designed to be maintenance-free. The rotating seat is designed as a sealed structure, preventing water vapor, dust, and harmful gases from entering. This ensures that the bearings and lithium-based molybdenum disulfide lubricating oil always work in a good environment, preventing rusting of the bearings and loss of lubricating grease. The stainless steel shaft pin is matched with a structure of oil-free self-lubricating bearings. The steel parts are treated with hot-dip galvanizing for corrosion protection, ensuring that the isolation switch operates flexibly, lightly, reliably, and never corrodes.

3. PARAMETERS

MODEL	FR13-40.5 (W)		FR13-72.5 (W)		FR13-126 (W)
Rated Voltage KV	35		63		110
Maximum Operating Voltage KV	40.5		72.5		126
Rated Current A		630		1250
Rated Thermal Stable Current KA (Peak)		20		31.5
Rated Thermal Stable Time S	4
Rated Thermal Stable Current KA (Peak)		50		80
1min Power Frequency Voltage KV (RMS)	95		160		230
Lightning Impulse Voltage KV	185		350		550
Rated Terminal Mechanical Load N (Longitudinal)	400		750
Insulator Creepage Distance CM/KV	Standard Type 1.7 Anti-fouling Type 2.5(3.1)
Used Mechanism	CS14 or CJ6
Mechanism Weight	CS17	10Kg		CJ6		55Kg
Product Weight	Approx 120Kg		Approx 140Kg		Approx 160Kg

4. LEAD TIME:
The delivery time is usually determined by the type and quantity of the product, typically ranging from 15 to 20 days.
