Fenarro Frzw20 Series Outdoor High Voltage Vacuum Circuit Breaker Sf6 Gas Insulation Load Break Switch

Breaking Capacity:
High Voltage Circuit Breakers
Operation:
Electric Type
Speed:
Normal Type Circuit Breaker
Arc-extinguishing Medium:
SF6
Installation:
Fixed
Structure:
MCCB

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. PRODUCT OVERVIEW

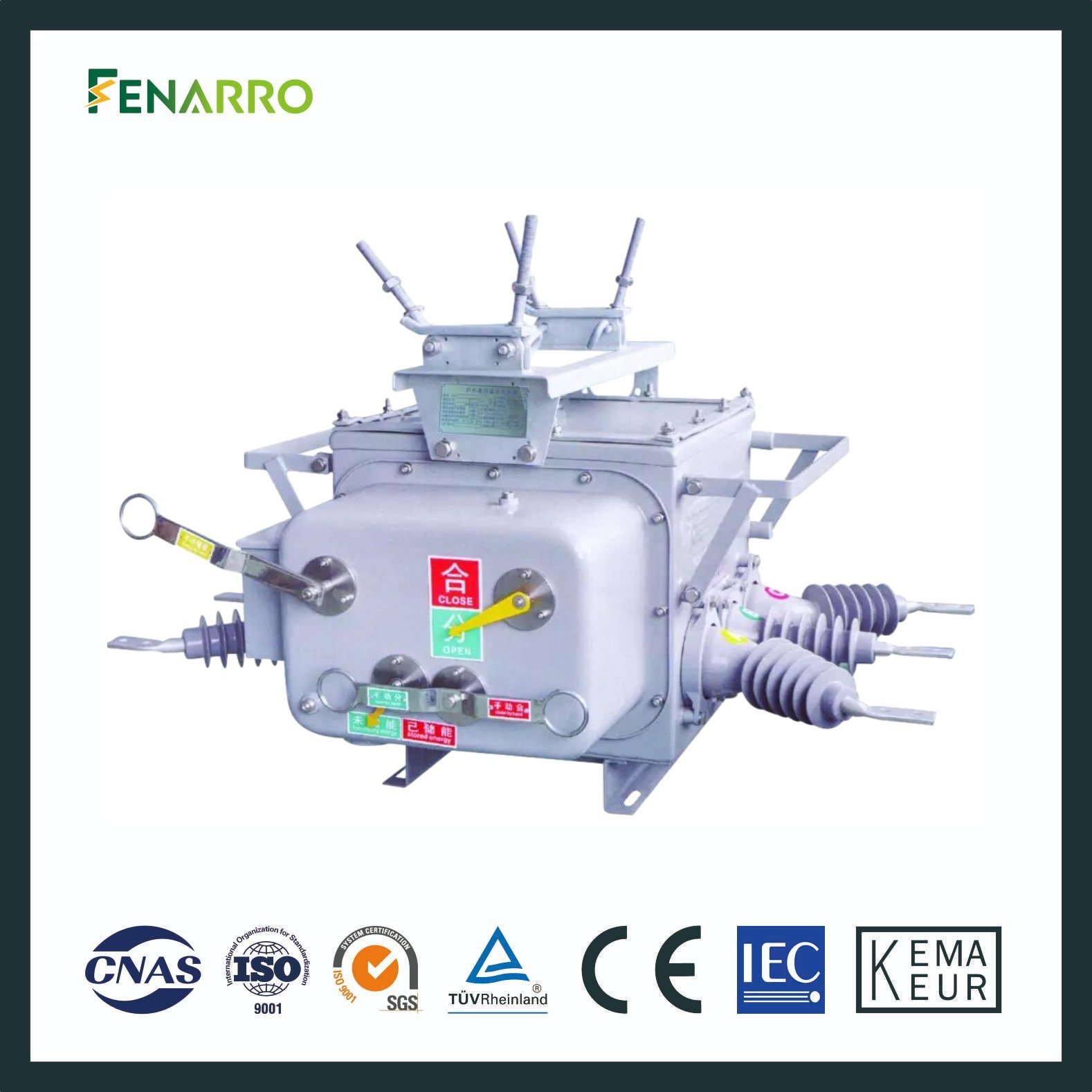

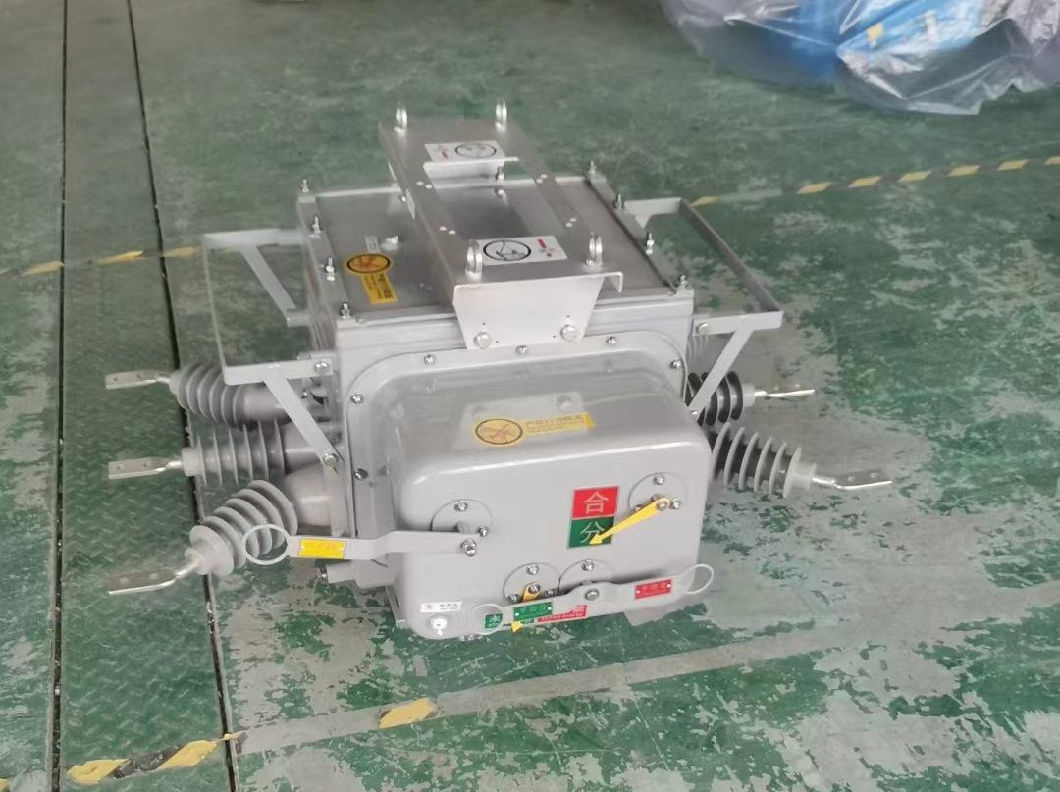

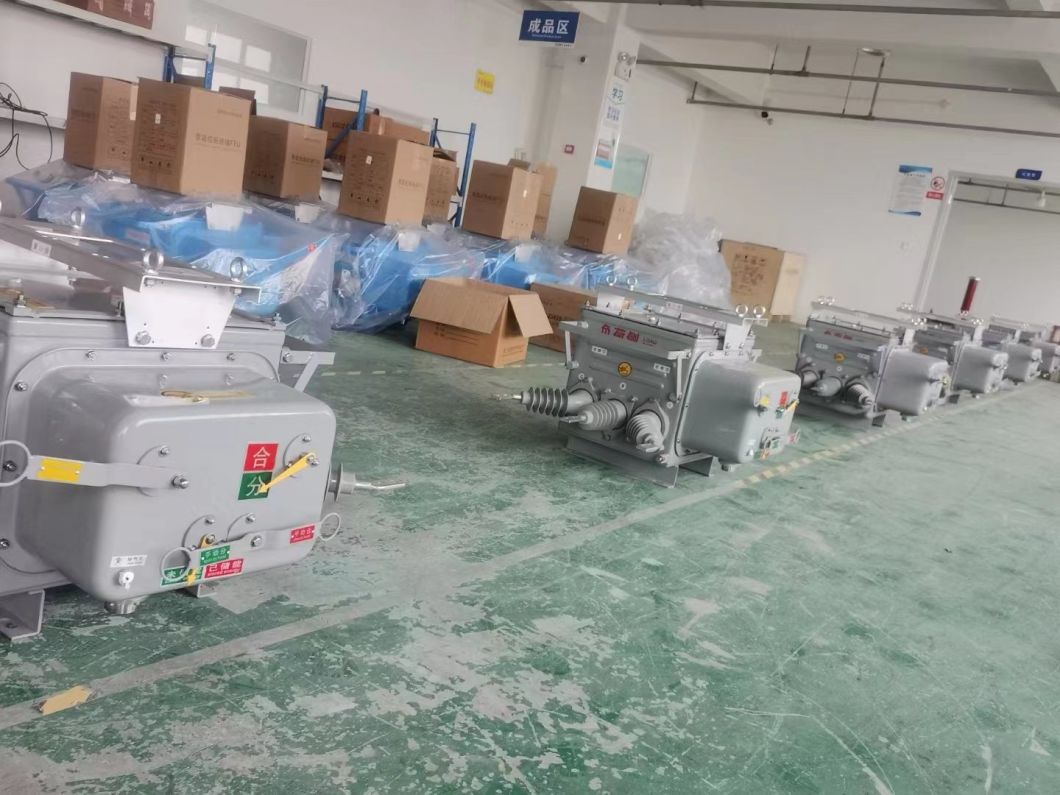

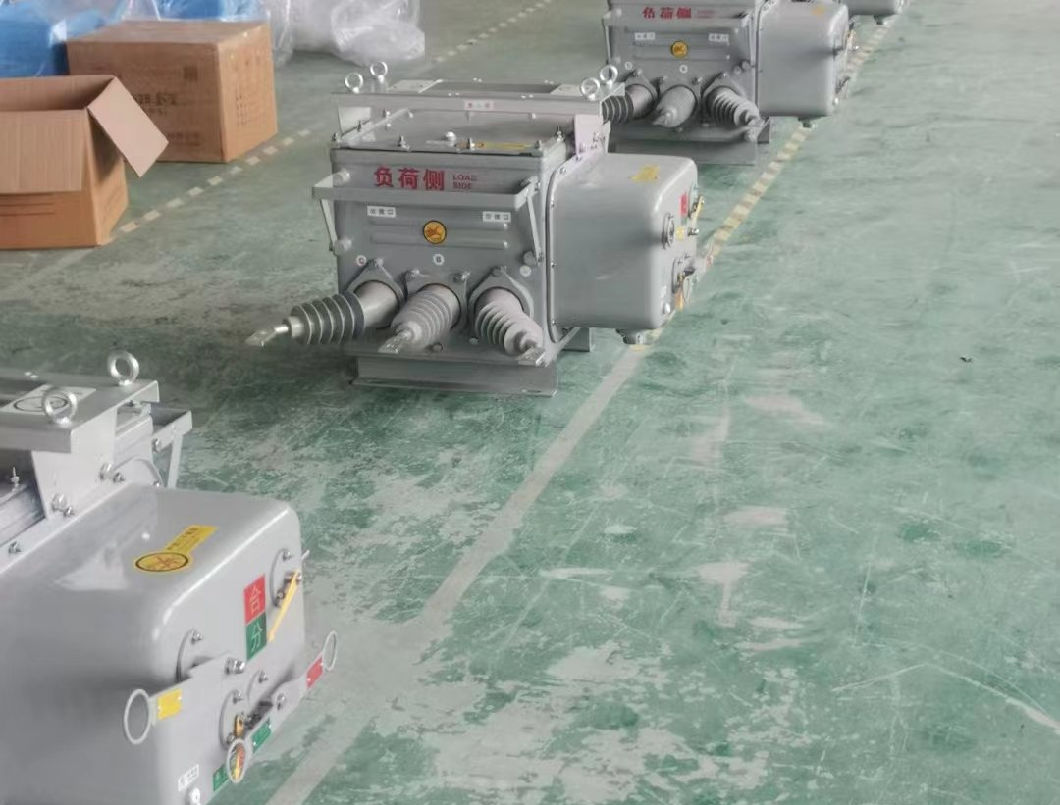

FRZW20 is an improved product of ordinary pole-mounted vacuum circuit breakers. It adopts a mature box-type sealing structure with excellent sealing performance, making it unaffected by external environmental factors. It is a maintenance-free product. Its spring operating mechanism uses direct chain main drive and multi-level trip system, ensuring high reliability of operation. It is a high-end product among pole-mounted circuit breakers. In addition to its superior sealing performance compared to ordinary vacuum circuit breakers, FRZW20 also features overcurrent protection, trip counting, mechanism spring energy storage indication, and is equipped with an aviation socket for secondary electrical connection, facilitating integration with intelligent controllers and other functions.

Fenarro Frzw20 Series Outdoor High Voltage Vacuum Circuit Breaker Sf6 Gas Insulation Load Break Switch

2. PRODUCT FEATURE
2.1 Ideal equipment for urban and rural power grid transformation: Can be paired with a controller to achieve remote control, remote measurement, remote signaling, and remote adjustment functions;
2.2 Flexible and convenient operation: This product is equipped with electric energy storage, electric switching, as well as manual energy storage and manual switching, and can be operated remotely at close or long distances;
2.3 Superior breaking performance: Breaking short-circuit current of 20KA up to 30 times;
2.4 Low operating power and high reliability: The newly designed small electric spring mechanism reduces the number of components and operating power (approximately 30W) to the lowest level;
2.5 Maintenance-free characteristics: The main circuit, secondary components, and operating mechanism of the circuit breaker are all sealed in a few gases (zero gauge pressure), unaffected by external environmental factors;
2.6 Reliable sealing performance: Adopt mature sealing structure technology with reliable sealing performance;
2.7 Unique incoming and outgoing line method: Using silicone rubber sleeves to ensure sufficient insulation distance between terminal connections and excellent external insulation characteristics;
2.8 Safe to use: An explosion-proof device is installed on the top of the enclosure, even in the event of an internal malfunction, there will be no leakage of high-temperature gas or splashing materials.

3. PARAMETERS
3.1 Main Technical Specifications

No.	ITEM	UNIT	VALUE
01	Rated voltage	XV	12
02	Rated frequency	Hz	50
03	Rated current	A	630, 1000
04	Rated short-circuit breaking current	KA	12. 5,16,20,25
05	Rated peak withstand current (peak)	kA	31. 5,40,50,63
06	Rated short-time withstand current (43)	kA	12. 5,16,20,25
07	Rated short-circuit closing current (peak)	kA	31. 5,40,50,63
08	Mechanical life	times	10000
09	Rated current breaking times	times	10000
10	Rated short-circuit breaking current breaking times	times	30
11	Power frequency withstand voltage (110111); phase-to-phase, phase-to-ground/break	KV	42/49
12	Lightning impulse withstand voltage (peak); phase-to-phase, phase-to-ground/break	kV	75/85
13	Secondary circuit 101111 power frequency withstand voltage	XV	2
14	Net weight	KG	140

3.2 Mechanical characteristic parameters

No.	ITEM	UNIT	VALUE
01	Contact opening distance	mm	9⁺¹_-0.5
02	Contact overtravel	mm	3⁺¹_-0.5
03	Breaking speed	m/s	1. 2±0. 2
04	Closing speed	m/s	0. 6±0. 2
05	Contact bounce time during closing	ms	≤2
06	Phase-to-phase distance	mm	135±1. 5
07	External live air insulation distance	mm	240±2
08	External creepage distance	cm/kV	3. 8
09	Different periods of three-phase breaking	ms	≤2
10	Conductive circuit resistance of each phase	μΩ	≤150
11	Closing time	ms	≤45
12	Breaking time	ms	≤45
13	Rated power of energy storage motor	W	≯40
14	Rated voltage of energy storage motor	V	AC220
15	Rated closing operation voltage	V	AC220
16	Highest/lowest closing operation voltage	V	AC264/143
17	Rated breaking operation voltage	V	AC220
18	Highest/lowest breaking operation voltage	V	AC264/143
19	Highest/lowest motor voltage	V	AC242/187
20	Rated pressure of SF6 gas (gauge pressure)	MPa	0

4. LEAD TIME:
The delivery time is usually determined by the type and quantity of the product, typically ranging from 15 to 20 days.

5. WHY CHOOSE US?
1), Innovation Strength
Fenarro has a professional research and development team consisting of over 30 technical engineers. The production design incorporates advanced international technology and is equipped with updated equipment systems. It follows the highest international standards for experiments and has invested over 30 million US dollars in research and development expenses.

2), Quality Control
Fenarro has over 40 professional testing equipment, 5 production lines, and 2 measurement centers, with strict quality control processes in place to ensure that our products meet international certification requirements.

3), Quantity and Productivity
Fenarro has six workshops and nearly 230 well-trained employees, with the help of modern automated production lines, our annual production capacity is 150,000 sets of equipment.

4), Our Service
I). By promptly addressing customer inquiries and concerns, we provide a quick response during the pre-sales period to secure the orders and achieve success in the B2B realm.
II). Our service is synonymous with excellence throughout the production process. We pride ourselves on our meticulous attention to detail, our team of experienced professionals, effective communication, and unwavering commitment to timeliness.
III). Our team of experts is dedicated to solving any issues that may arise after your purchase. We pride ourselves on our prompt and effective communication, ensuring that you are always kept in the loop and informed of any updates or progress.
IV). The essence of our warranty program lies in its ability to instil confidence in our customers. By providing a long period quality warranty, we aim to eliminate any doubts that may arise during the decision-making process.

6. FAQ
Q: Are you a factory or a trading company?
A: We are a factory.

Q: How to place an order?
A: Inquire with us → Customize with your design or sample → Inform us of your usage scenario → Receive our product design recommendation → Negotiate details → Confirm sample → Sign contract/deposit → Mass production → Goods ready for shipment → Delivery → Further cooperation.

Q: How about sample orders?
A: We provide samples for reference, please contact us for details. Once we charge you for the sample fee, please rest assured that the fee will be refunded when you place a formal order.

Q: What shipping methods are available?
A: We offer various shipping methods such as express, sea, air, and land transportation. If you need to specify other shipping methods, please contact us.

Q: How long does it take for delivery and shipment?
A: Delivery time depends on the type and quantity of products you order. Usually, it takes 15-20 days.

Q: What can I do if some products are missing from my package?
A: Please contact our support team, we will confirm your order contents with the packaging and compensate for the missing products according to the actual situation. We apologize for any inconvenience caused.

Q: How to confirm payment?
A: We accept payment methods such as wire transfer and PayPal. Other payment methods are also acceptable, please contact us before making payment through other methods. Additionally, a 30% deposit is feasible, and the balance should be paid before shipment.
