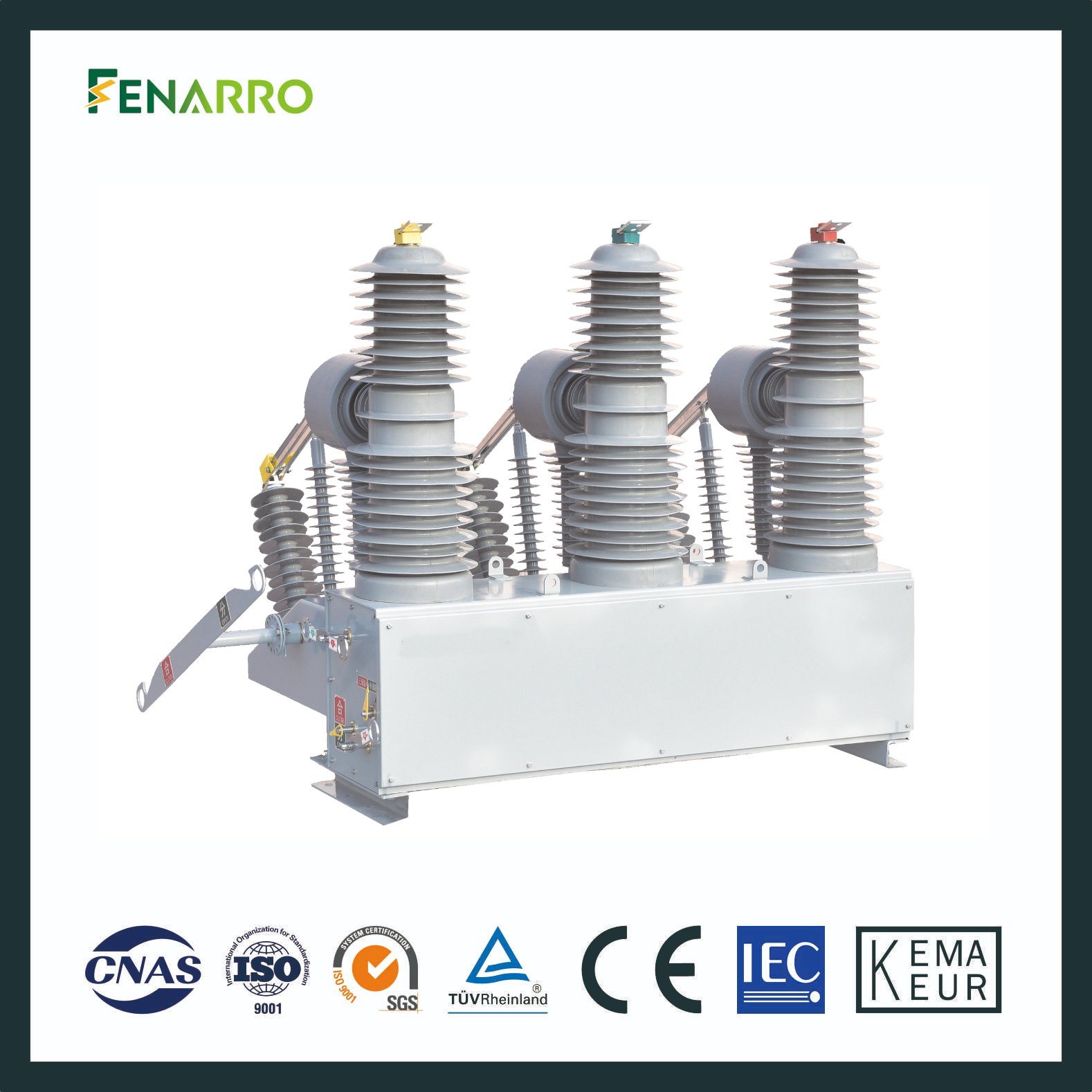

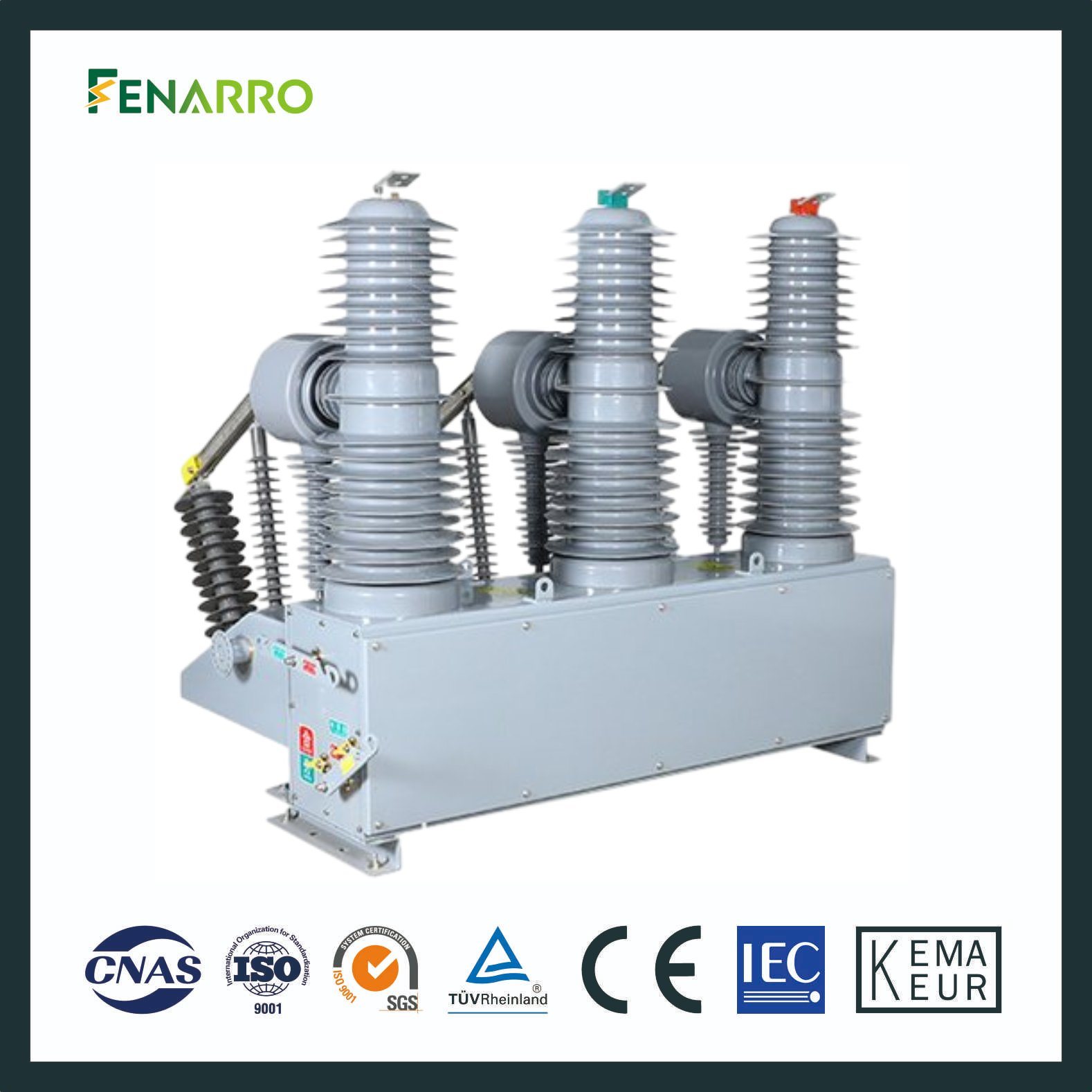

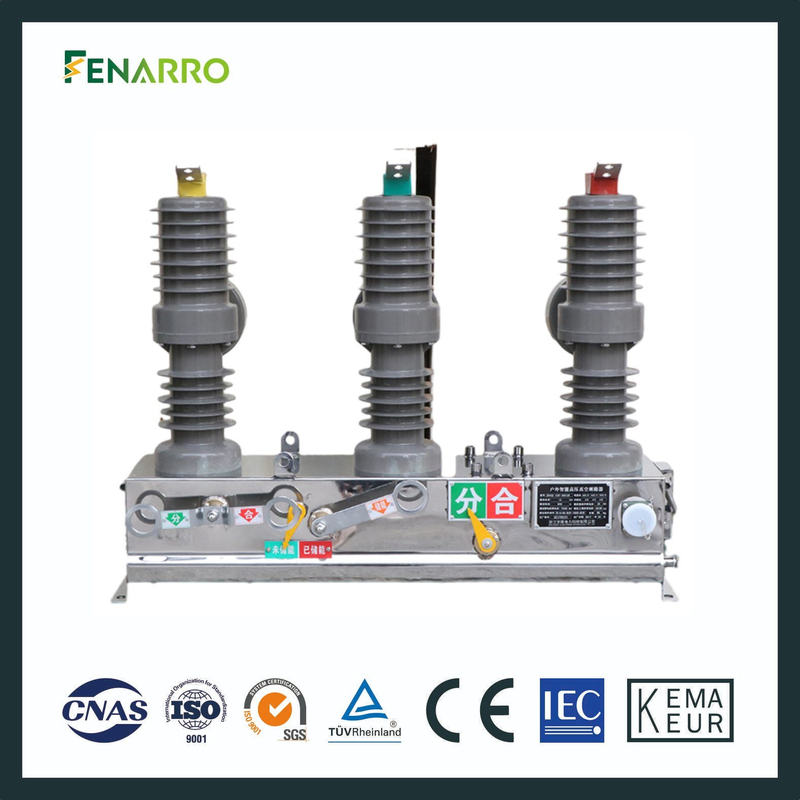

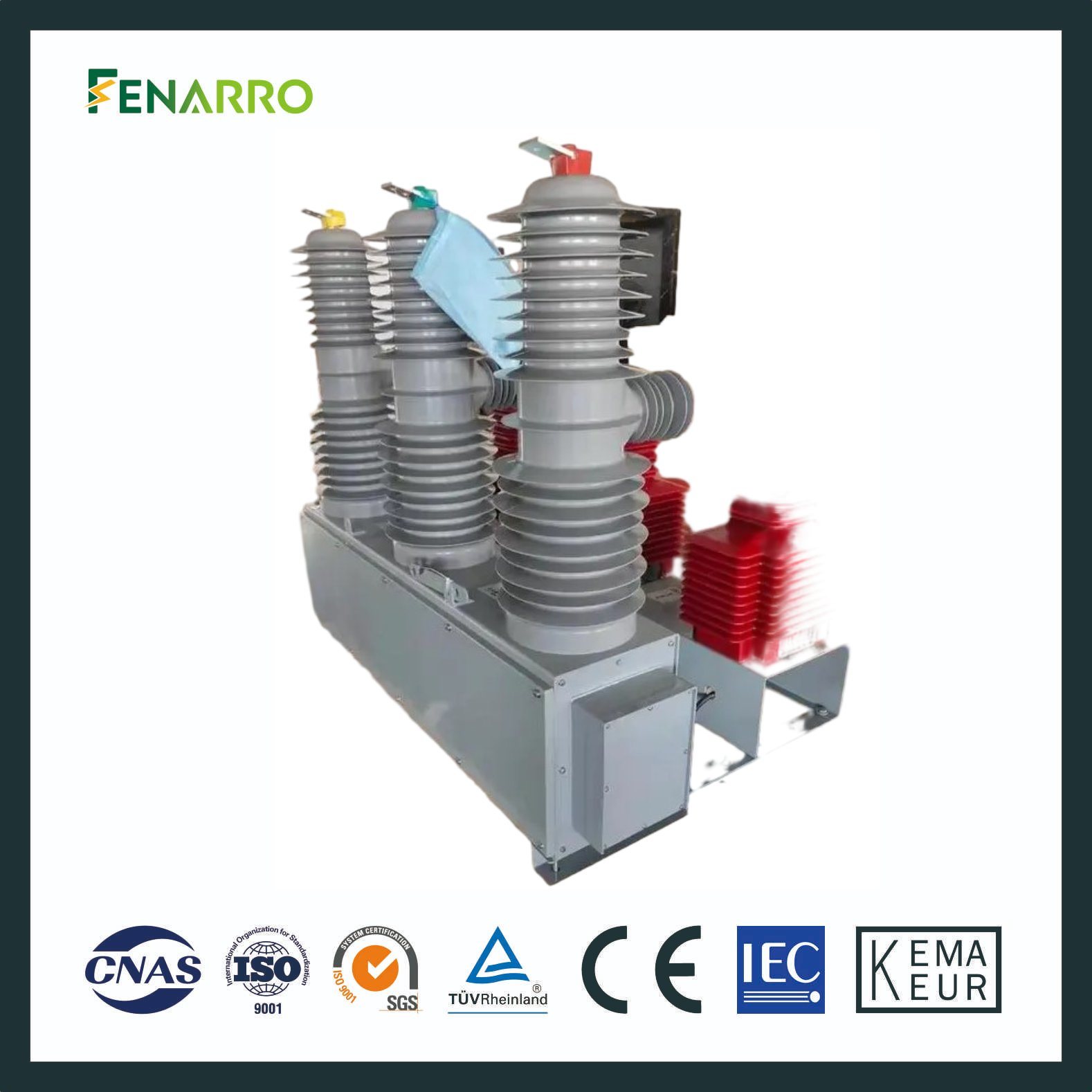

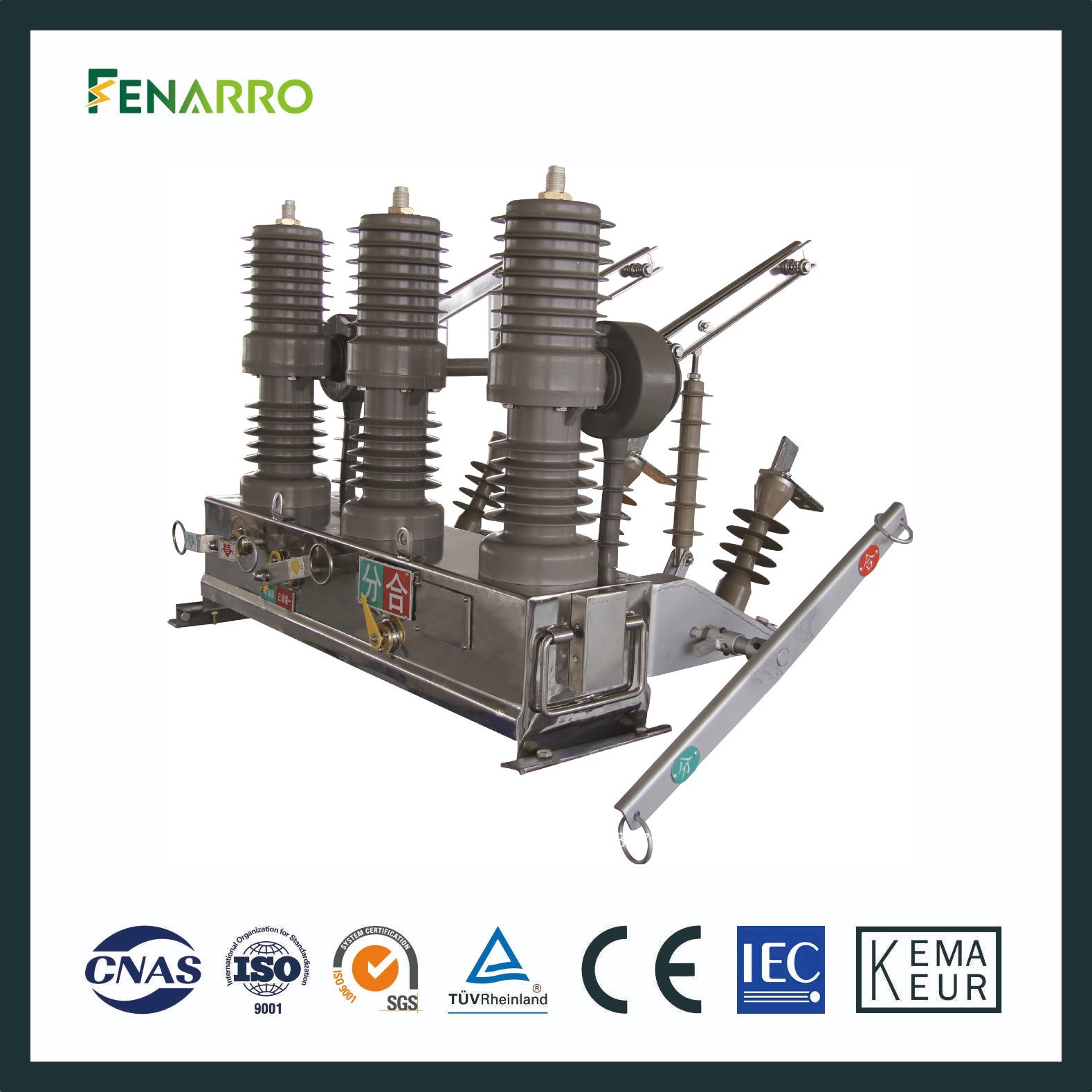

Fenarro Frzw32 Series Outdoor Vacuum Circuit Breaker High Voltage Auto Recloser

Breaking Capacity:
High Voltage Circuit Breakers
Operation:
Electric Type
Speed:
Normal Type Circuit Breaker
Arc-extinguishing Medium:
Vacuum
Installation:
Fixed
Structure:
MCCB

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. PRODUCT OVERVIEW
The FRZW32 Series outdoor high-voltage vacuum circuit breaker adopts a uniquely designed integrated solid-sealed pole and a highly reliable operating mechanism. This device is mainly used in medium-voltage overhead power lines for the purpose of switching, connecting load currents, overload currents, and short-circuit currents. Suitable for use in substations, industrial and mining enterprises' power distribution systems, as well as rural power grids that require frequent operation, for protection and control purposes.
♦ Extremely high reliability
♦ Completely maintenance-free throughout its entire lifespan
♦ High mechanical and electrical lifespan
♦ Compact size and lightweight, facilitating installation.

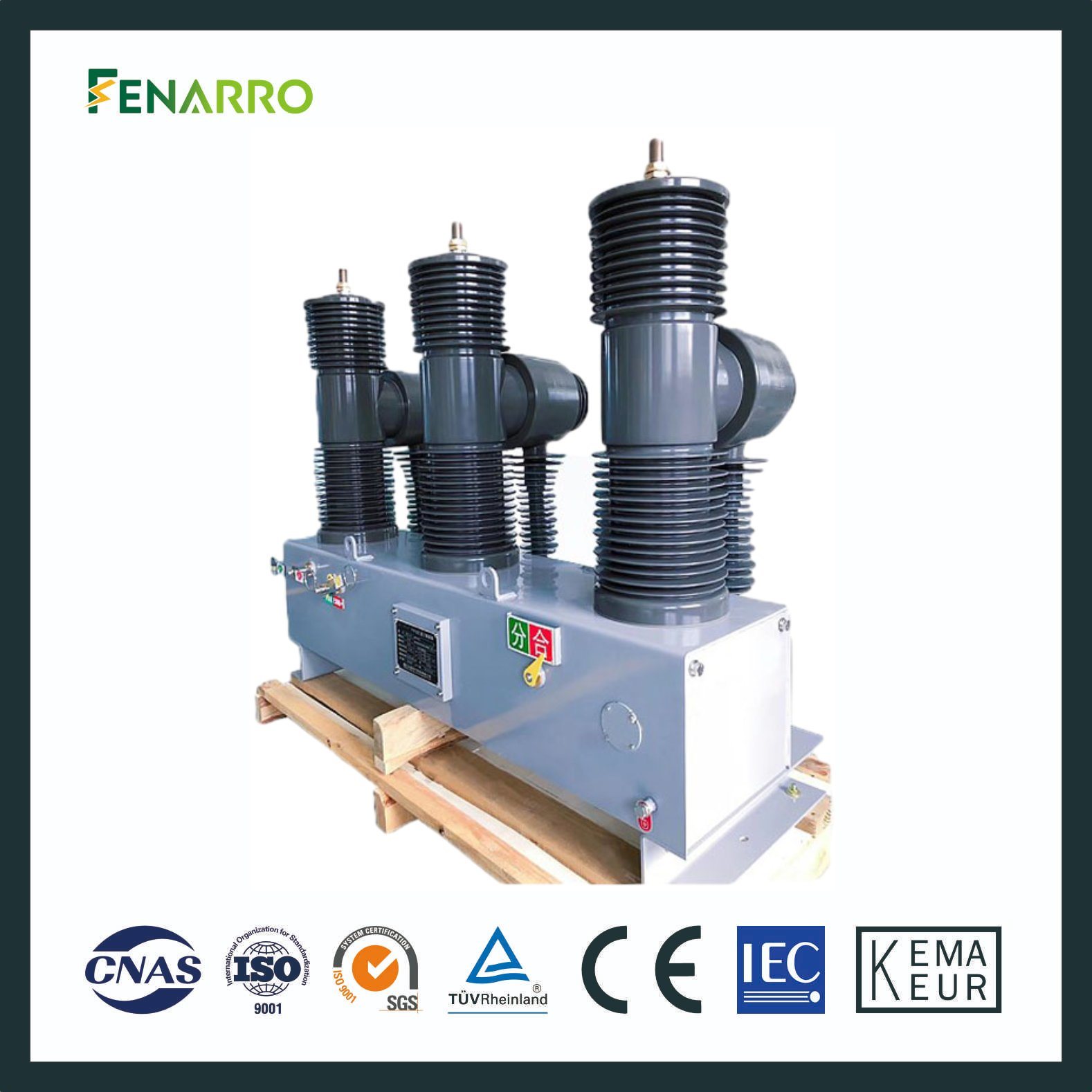

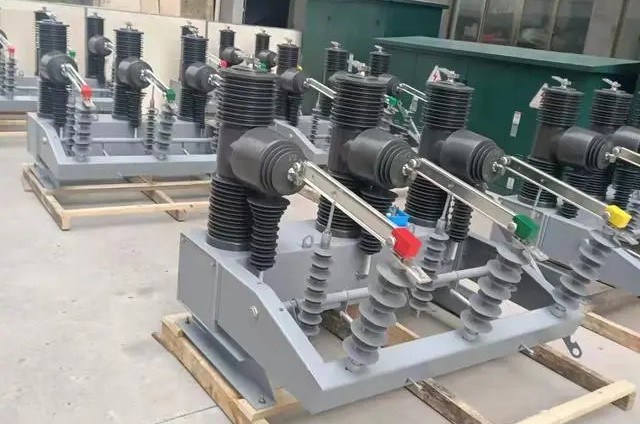

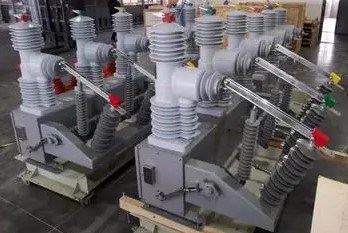

Fenarro Frzw32 Series Outdoor Vacuum Circuit Breaker High Voltage Auto Recloser

2. USAGE CONDITIONS
♦ Ambient air temperature: -30ºC to +60ºC;
♦ Altitude: not exceeding 3000 meters;
♦ Wind speed not exceeding 34m/s;
♦ Vibrations or seismic activity from external switch and control devices can be ignored;
♦ Pollution level: Grade IV;
♦ Storage temperature: -40ºC to +85ºC

3. PRODUCT FEATURE
♦ Intelligent control function: In addition to on-site switch status control, three-stage overcurrent protection, and automatic reclosing, this circuit breaker also has an RS-485 communication interface that enables remote telemetry, remote adjustment, remote control, and remote signaling functions. It is suitable for various scales of automated distribution systems.
♦ Permanent magnet operating mechanism: This circuit breaker adopts the most advanced permanent magnet operating mechanism, with zero wear on its components. The mechanical life of the mechanism can reach 3000 times, which is three times that of ordinary spring mechanisms. Due to the reduction of mechanical parts by 70% compared to spring mechanisms, the reliability of the switch is greatly improved.
♦ Fully sealed structure design: The vacuum arc-extinguishing chamber, operating mechanism, and operating linkage of this circuit breaker are fully sealed inside the base, solving the problem of condensation causing rust on the circuit breaker parts. The product can achieve maintenance-free operation for up to 10 years.
♦ Compact structure: This circuit breaker adopts a new type of composite solid insulation material, which integrates the vacuum arc-extinguishing chamber, main conductive circuit, and insulation support into an integrated sealed pole, completely solving the contradiction between miniaturization of the vacuum arc-extinguishing chamber and meeting external insulation requirements. The entire product is designed with advanced and reasonable structure, compact size, no condensation inside, and no rust on the mechanism.

4. PARAMETERS
♦ Main Technical Parameters

NO.	ITEM	UNIT	VALUE
1	Rated voltage	kV	40.5
2	Rated current	A	1250/1600
3	Rated frequency	Hz	50 or 60
4	Power frequency withstand voltage 1 minute (wet) (dry) phase-to-phase, phase-to-ground/break	kV	80 95/95
5	Lightning impulse withstand current (peak) phase-to-phase, phase-to-ground/break	kV	185
6	Rated short-circuit breaking current	kA	25/31.5
7	Rated short-circuit making current (peak)	kA	63/80
8	Rated peak withstand current	kA	63/80
9	4s short-time withstand current	kA	25/31.5
10	Rated operating cycles		open - 0.1s - close/open -3s - close/open - 6sclose/open - 60s restore
11	Rated number of short-circuit current breaking	times	30
12	Mechanical life	times	10000
13	Mechanism control voltage	V	AC/DC220
14	Secondary circuit 1 minute power frequency withstand voltage	KV	2

♦ Main Mechanical Parameters

NO.	ITEM	UNIT	VALUE
1	Contact Opening Distance	mm	16±1
2	Contact Overtravel	mm	4±0.5
3	Breaking Speed	m/s	1.4-1.8
4	Closing Speed	m/s	0.4-0.8
5	Contact Bounce Time during Closing	ms	≤5
6	Phase-to-Phase Distance	mm	600±2
7	Different Phases' Opening and Closing Asynchrony	ms	≤2
8	Conductive Circuit Resistance for Each Phase	μΩ	<80
9	Closing Time	ms	25~45
10	Opening Time	ms	20~45
11	Weight	Kg	Approx 450

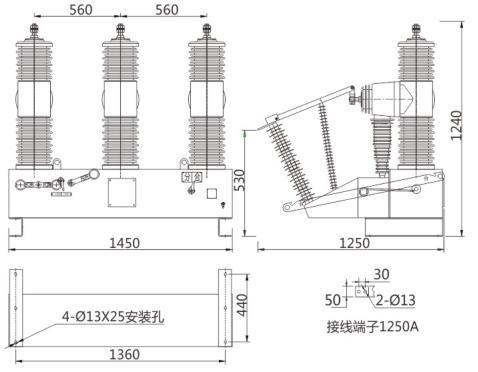

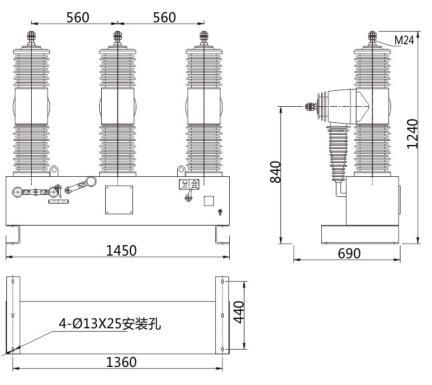

5. APPEARANCE AND INSTALLATION DIMENSIONS

6. LEAD TIME:
The delivery time is usually determined by the type and quantity of the product, typically ranging from 15 to 20 days.

7. WHY CHOOSE US?
1), Innovation Strength
Fenarro has a professional research and development team consisting of over 30 technical engineers. The production design incorporates advanced international technology and is equipped with updated equipment systems. It follows the highest international standards for experiments and has invested over 30 million US dollars in research and development expenses.

2), Quality Control
Fenarro has over 40 professional testing equipment, 5 production lines, and 2 measurement centers, with strict quality control processes in place to ensure that our products meet international certification requirements.

3), Quantity and Productivity
Fenarro has six workshops and nearly 230 well-trained employees, with the help of modern automated production lines, our annual production capacity is 150,000 sets of equipment.

4), Our Service
I). By promptly addressing customer inquiries and concerns, we provide a quick response during the pre-sales period to secure the orders and achieve success in the B2B realm.
II). Our service is synonymous with excellence throughout the production process. We pride ourselves on our meticulous attention to detail, our team of experienced professionals, effective communication, and unwavering commitment to timeliness.
III). Our team of experts is dedicated to solving any issues that may arise after your purchase. We pride ourselves on our prompt and effective communication, ensuring that you are always kept in the loop and informed of any updates or progress.
IV). The essence of our warranty program lies in its ability to instil confidence in our customers. By providing a long period quality warranty, we aim to eliminate any doubts that may arise during the decision-making process.

7. FAQ
Q: Are you a factory or a trading company?
A: We are a factory.

Q: How to place an order?
A: Inquire with us → Customize with your design or sample → Inform us of your usage scenario → Receive our product design recommendation → Negotiate details → Confirm sample → Sign contract/deposit → Mass production → Goods ready for shipment → Delivery → Further cooperation.

Q: How about sample orders?
A: We provide samples for reference, please contact us for details. Once we charge you for the sample fee, please rest assured that the fee will be refunded when you place a formal order.

Q: What shipping methods are available?
A: We offer various shipping methods such as express, sea, air, and land transportation. If you need to specify other shipping methods, please contact us.

Q: How long does it take for delivery and shipment?
A: Delivery time depends on the type and quantity of products you order. Usually, it takes 15-20 days.

Q: What can I do if some products are missing from my package?
A: Please contact our support team, we will confirm your order contents with the packaging and compensate for the missing products according to the actual situation. We apologize for any inconvenience caused.

Q: How to confirm payment?
A: We accept payment methods such as wire transfer and PayPal. Other payment methods are also acceptable, please contact us before making payment through other methods. Additionally, a 30% deposit is feasible, and the balance should be paid before shipment.
