Fenarro Frzw8 Series Outdoor Vacuum Circuit Breaker High Voltage Auto Recloser

Breaking Capacity:
High Voltage Circuit Breakers
Operation:
Electric Type
Speed:
Normal Type Circuit Breaker
Arc-extinguishing Medium:
Vacuum
Installation:
Fixed
Structure:
MCCB

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. PRODUCT OVERVIEW
The FRZW8 series intelligent outdoor high-voltage vacuum circuit breaker (hereinafter referred to as the intelligent circuit breaker) is used for three-phase power systems with an AC frequency of 50Hz and a voltage of 10-12kV. It is used for breaking and closing load currents and has functions such as overload protection, short circuit protection, instantaneous trip protection, time-limited delay protection, and automatic reclosing. It can also be equipped with lightning arresters or isolation switches according to user needs (referred to as "combined intelligent circuit breakers"). The intelligent circuit breaker has its own power supply and can be remotely controlled nearby. It is equipped with CT and PT interfaces to meet telemetry requirements.

Fenarro Frzw8 Series Outdoor Vacuum Circuit Breaker High Voltage Auto Recloser

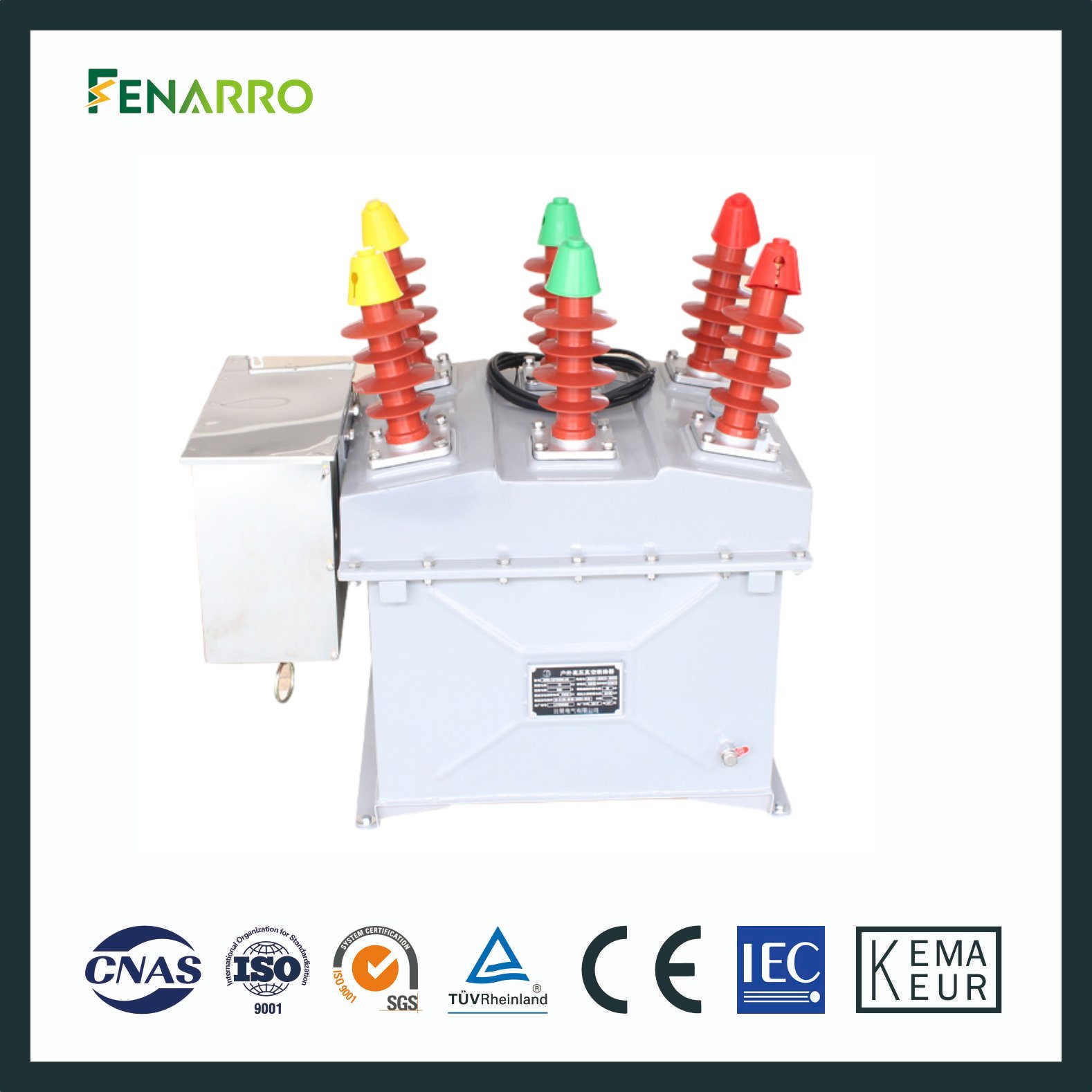

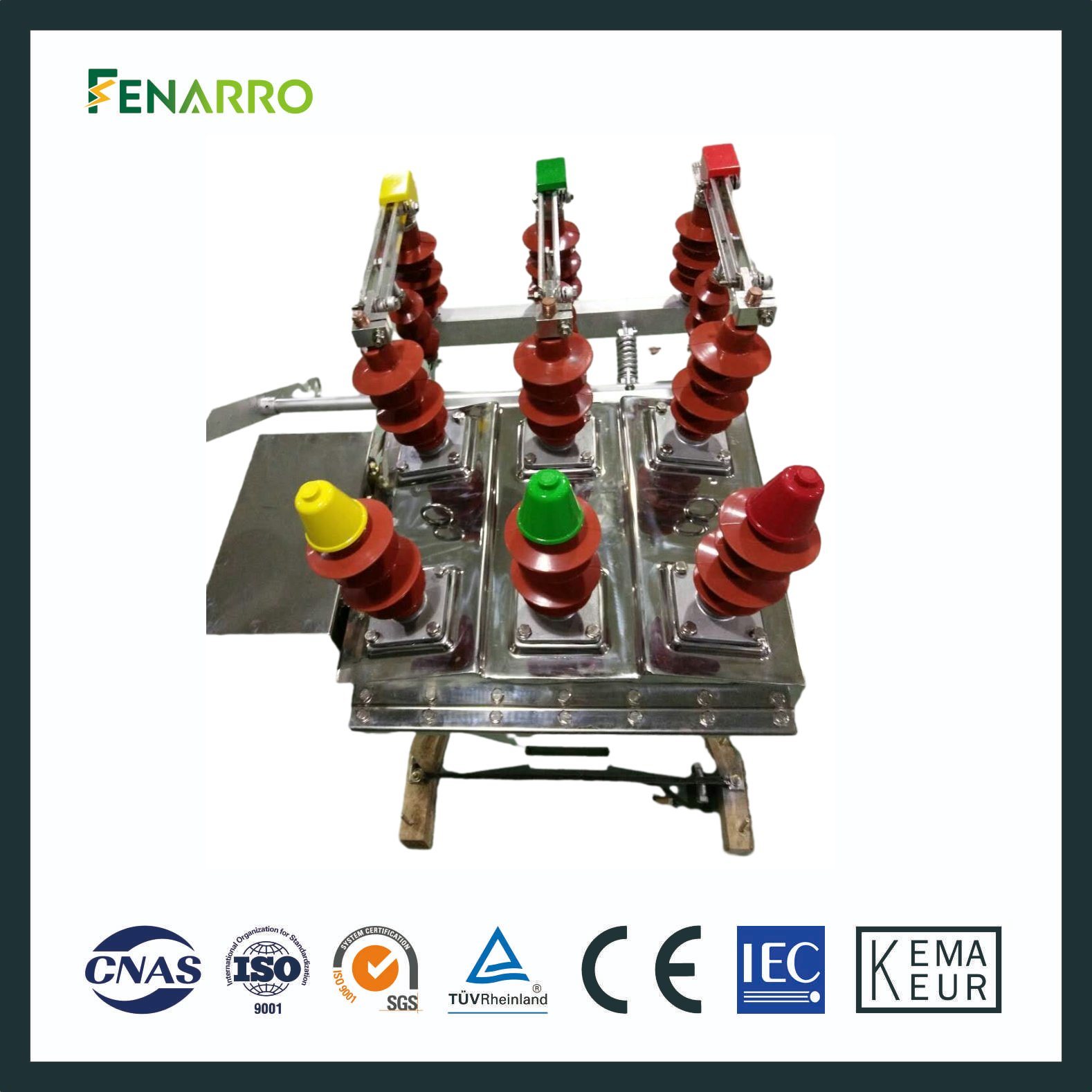

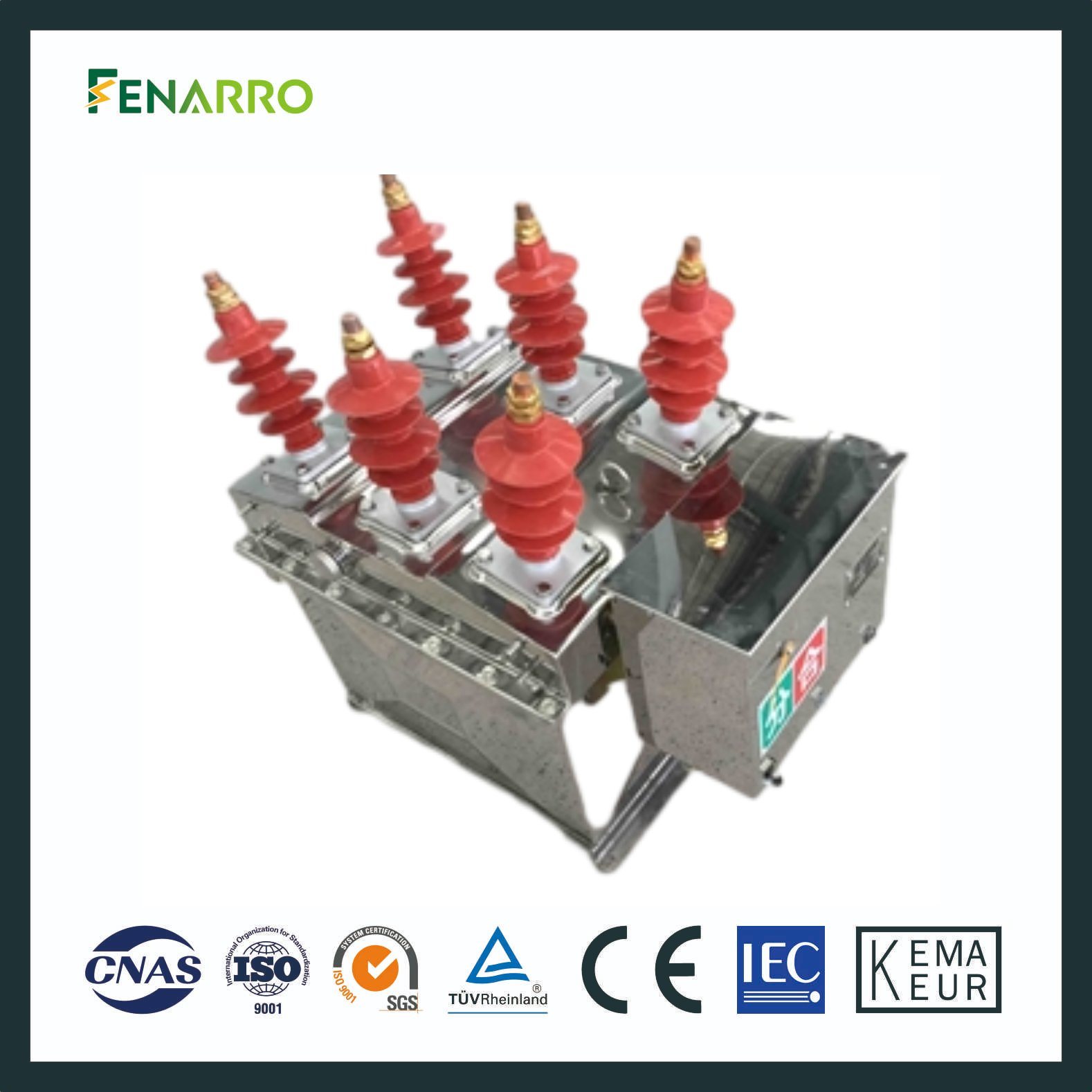

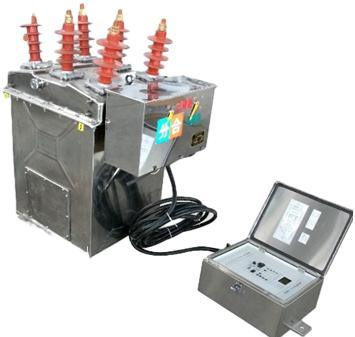

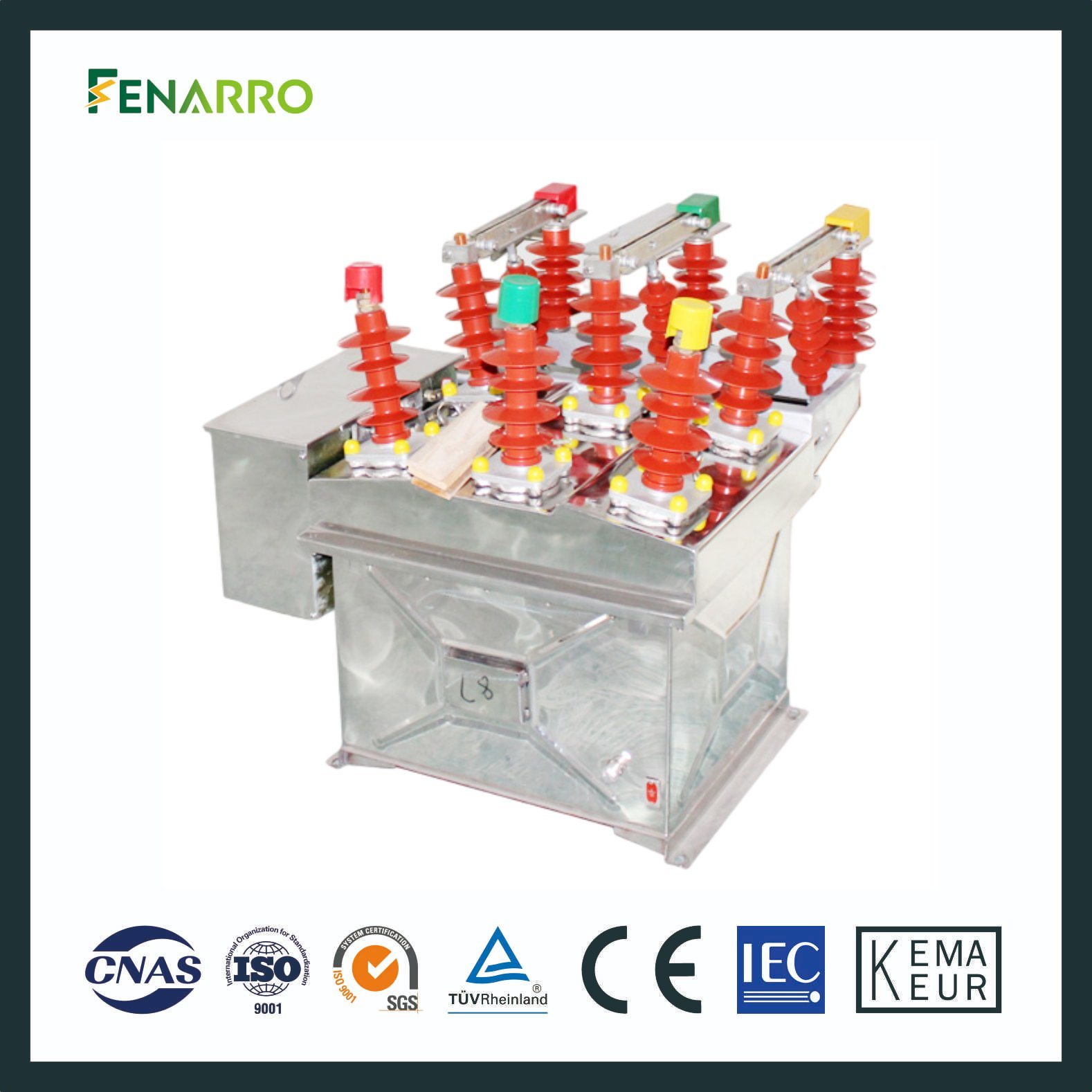

FRZW8 with Electronic PT FRZW8 with watchdog FRZW8B with Intelligent Controller

2. PRODUCT FEATURE
The FRZW8 series adopts a vacuum arc-extinguishing chamber, air insulation, and is equipped with an electric spring operating mechanism, which enhances the arc-extinguishing ability, increases the number of short-circuit interruptions, eliminates the risk of fire, expolsion, and provides convenient operation. It is a highly practical product with excellent performance.
The overall structure of this product adopts a three-phase common box type, with bushing inlet and outlet. The interior of the box is filled with dry air. The electric spring operating mechanism is arranged on the side of the box, allowing reliable use even in harsh environmental conditions.
The vacuum arc-extinguishing chamber of this product is enclosed in a ceramic shell, with a cup-shaped longitudinal magnetic field contact structure and copper-chromium contact material, providing excellent breaking and closing short-circuit current capabilities.
This product is compact in size, lightweight, and aesthetically pleasing. The vacuum arc-extinguishing chamber and insulation support bushing are designed to be compact. The outgoing conductive rod is coated with silicone rubber, making it suitable for harsh weather conditions and polluted environments.

3. SCOPE OF APPLICATION
The FRZW8 series outdoor high-voltage vacuum circuit breaker is designed for use in 50Hz three-phase AC power systems. It is primarily used for breaking and closing the load current, no-load current, and short-circuit current of 10kV power grids in urban areas. It can also be used as a sectional switch for rural power grids and small-scale power systems. This product is an oil-free replacement for both urban and rural power grids.

4. PARAMETERS

NO.	ITEM			UNIT	VALUE
1	Rated voltage			kV	40.5
2	Rated insulation level	Power frequency withstand voltage	Dry type	kV	95
		Power frequency withstand voltage	Wet type	kV	80
		Lightning impulse withstand voltage (peak)		kV	185
3	Rated current			A	1250,1600, 2000
4	Rated short-circuit breaking current			kA	20, 25, 31.5
5	Rated operating sequence				Opening-0.30 closing/opening -180 closing/opening
6	Rated short-circuit breaking current frequency			times	12
7	Rated short-circuit closing current (peak)			kA	50, 63, 80
8	Rated peak withstand current			kA	50, 63, 80
9	Rated short-time withstand current			kA	20, 25, 31.5
10	Rated short-circuit duration current			s	4
11	Average opening speed			m/s	1.5±0.2
12	Average closing speed			m/s	0.7±0.2
13	Contact closing bounce time			s	≤2
14	Three-phase closing (opening) synchronization time difference			s	≤2
15	Closing time			s	≤150
16	Opening time			s	≤60
17	Mechanical life			times	10000
18	Rated operating voltage and auxiliary circuit rated voltage			V	DC/AC220, 110, 24
19	DC resistance per phase circuit (excluding transformers)			μΩ	≤100
20	Allowable wear thickness of dynamic and static contacts			mm	3
21	Weight			kg	800

5. APPEARANCE AND INSTALLATION DIMENSIONS

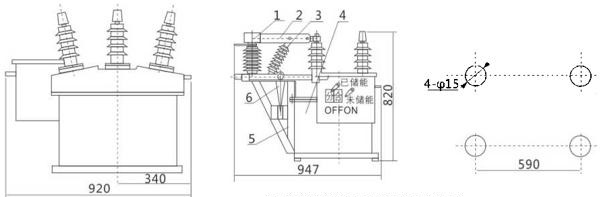

5.1 FRZW8 DIMENSIONS

1. Suspension ring
2. Sleeve
3. Box cover
4. Enclosure
5. Moisture absorption tube
6. Nameplate
7. Operating mechanism
8. Conductive rod

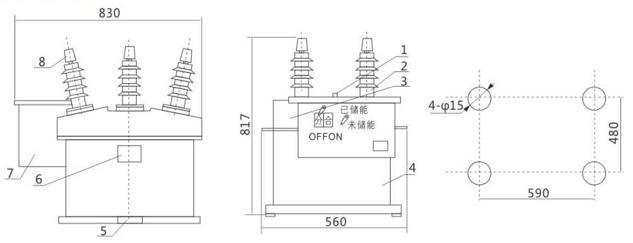

5.2 FRZW8B DIMENSIONS

1. Static contact head
2. Dynamic contact head
3. Insulated pull rod
4. Circuit breaker
5. Isolation knife holder
6. Insulator pillar

6. LEAD TIME:
The delivery time is usually determined by the type and quantity of the product, typically ranging from 15 to 20 days.

7. WHY CHOOSE US?
1), Innovation Strength
Fenarro has a professional research and development team consisting of over 30 technical engineers. The production design incorporates advanced international technology and is equipped with updated equipment systems. It follows the highest international standards for experiments and has invested over 30 million US dollars in research and development expenses.

2), Quality Control
Fenarro has over 40 professional testing equipment, 5 production lines, and 2 measurement centers, with strict quality control processes in place to ensure that our products meet international certification requirements.

3), Quantity and Productivity
Fenarro has six workshops and nearly 230 well-trained employees, with the help of modern automated production lines, our annual production capacity is 150,000 sets of equipment.

4), Our Service
I). By promptly addressing customer inquiries and concerns, we provide a quick response during the pre-sales period to secure the orders and achieve success in the B2B realm.
II). Our service is synonymous with excellence throughout the production process. We pride ourselves on our meticulous attention to detail, our team of experienced professionals, effective communication, and unwavering commitment to timeliness.
III). Our team of experts is dedicated to solving any issues that may arise after your purchase. We pride ourselves on our prompt and effective communication, ensuring that you are always kept in the loop and informed of any updates or progress.
IV). The essence of our warranty program lies in its ability to instil confidence in our customers. By providing a long period quality warranty, we aim to eliminate any doubts that may arise during the decision-making process.

7. FAQ
Q: Are you a factory or a trading company?
A: We are a factory.

Q: How to place an order?
A: Inquire with us → Customize with your design or sample → Inform us of your usage scenario → Receive our product design recommendation → Negotiate details → Confirm sample → Sign contract/deposit → Mass production → Goods ready for shipment → Delivery → Further cooperation.

Q: How about sample orders?
A: We provide samples for reference, please contact us for details. Once we charge you for the sample fee, please rest assured that the fee will be refunded when you place a formal order.

Q: What shipping methods are available?
A: We offer various shipping methods such as express, sea, air, and land transportation. If you need to specify other shipping methods, please contact us.

Q: How long does it take for delivery and shipment?
A: Delivery time depends on the type and quantity of products you order. Usually, it takes 15-20 days.

Q: What can I do if some products are missing from my package?
A: Please contact our support team, we will confirm your order contents with the packaging and compensate for the missing products according to the actual situation. We apologize for any inconvenience caused.

Q: How to confirm payment?
A: We accept payment methods such as wire transfer and PayPal. Other payment methods are also acceptable, please contact us before making payment through other methods. Additionally, a 30% deposit is feasible, and the balance should be paid before shipment.
