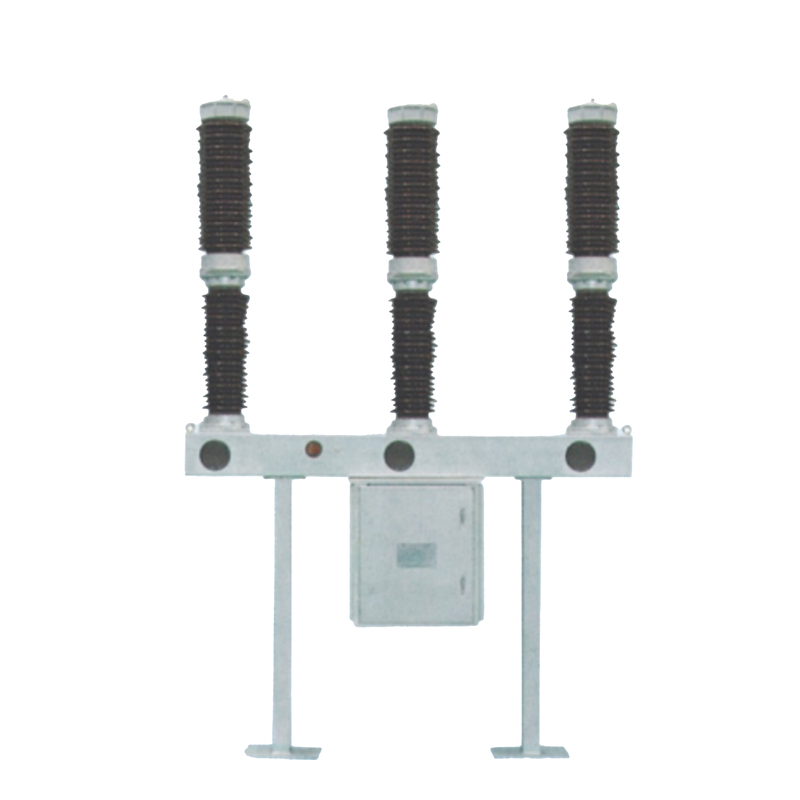

The LW36-72.5 SF6 self-energy type circuit breaker is a column-type outdoor device that ensures safe operation under harsh environmental conditions. It adopts a high-strength arc-extinguishing chamber structure and a reliable spring operating mechanism, providing stable performance, long service life, and minimal maintenance requirements.
High performance – Rated current up to 3150A, breaking capacity 31.5kA at 40℃
Long service life – Electrical life: 31.5kA × 24 times (25kA × 31 times); Mechanical life: up to 10,000 times after simple adjustment
High reliability – Shares arc-extinguishing chamber structure with LW36-126, strong insulation margin, simple and reliable spring mechanism
Reliable breaking performance – Stable arc interruption for frequent operation
Excellent sealing – SF6 leakage rate < 0.5% per year
Suitable for harsh environments – Designed for IV pollution level and ambient temperature from -40℃ to +40℃
| 1 | Rated voltage | kV | 72.5 |
| 2 | Rated frequency | Hz | 50 |
| 3 | Rated current | A | 1250 / 1600 / 2000 / 3150 |
| 4 | Rated short-circuit breaking current | kA | 31.5 |
| 5 | Rated peak withstand current | kA | 80 |
| 6 | Rated short-time withstand current | kA | 31.5 |
| 7 | Rated short-circuit duration | s | 4 |
| 8 | Rated short-circuit breaking times | times | 20 |
| 9 | Rated operating sequence | — | 0.3s-CO-180s-CO |
| 10 | Mechanical life | times | 10,000 |
| 11 | Electrical endurance | times | 31.5kA × 24 (25kA × 31) |
| 12 | SF6 annual leakage rate | % | ≤0.5% |
| 13 | Gas leakage rate (per year) | Pa·m³/s | ≤1500 × 10⁻⁶ |
| 14 | Energy storage motor rated power | W | 600 |
| 15 | Control voltage | V | DC110/220, AC110/220 |
| 16 | Closing / Opening coil rated voltage | V | DC220, AC220 |
| 17 | Energy storage time | s | ≤15 |
Outdoor substations and transmission lines
High-cold regions with temperatures as low as -40℃
Power systems requiring frequent operation
Tie breaker applications in grid connection
