GW5
Fenarro
| Quantity: | |
|---|---|

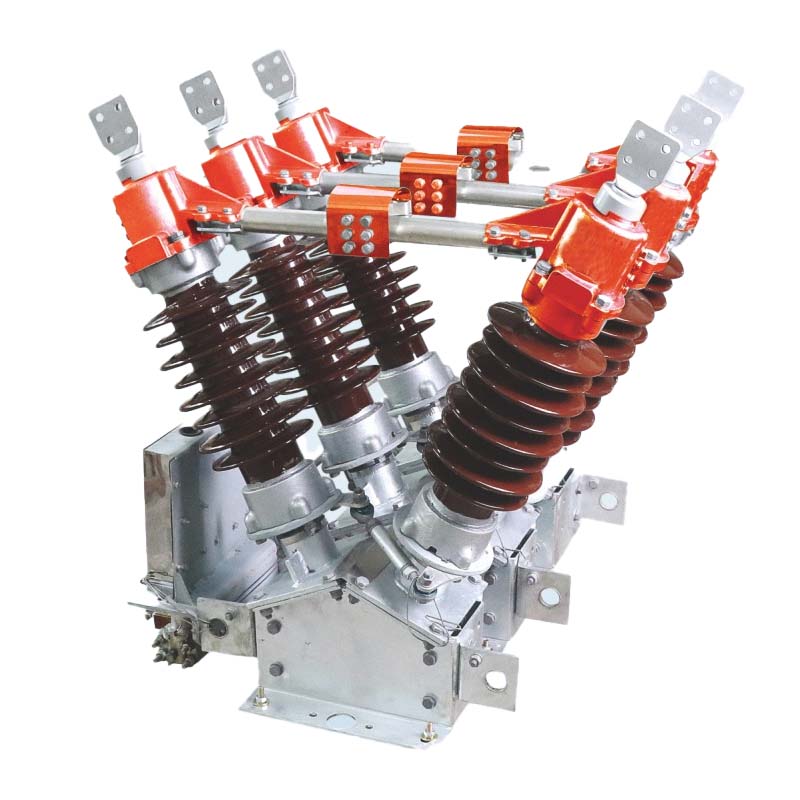

This product is a three-phase AC high-voltage outdoor transmission device with a frequency of 50Hz, designed to connect or disconnect high-voltage lines under no-load conditions. It allows line switching, operation mode adjustment, and provides safe electrical isolation for busbars, circuit breakers, and other high-voltage equipment during maintenance.
The GW5 Series is manufactured in compliance with JB/T8754-1998 High Voltage Switchgear Model Compilation Method, GB1985-2004 AC High Voltage Disconnectors and Earthing Switches, and DL/T486-2000 Ordering Technical Conditions for AC Disconnectors and Earthing Switches. It also meets the requirements issued by the State Grid Corporation of China. Corrections and enhancements are made according to GB11022-2000 General Technical Requirements for High Voltage Switchgear.
Double-column, center-opening, rotary contact structure with self-cleaning capability for improved contact reliability.
Contact fingers are made of high-strength, high-conductivity, high-elasticity materials. The elastic force ensures secure clamping, avoiding spring corrosion or heating issues that cause poor contact.
Maintenance-free rotating parts: sealed rotating seats prevent water, dust, and harmful gases from entering. Bearings and lubricants remain in optimal condition, ensuring long-term smooth operation.
Stainless steel shaft pins and self-lubricating bearings for long-lasting reliability. Steel parts are hot-dip galvanized to prevent corrosion.
Optional earthing switches equipped with mechanical interlocks, ensuring safety during operation.
Optimized contact finger design reduces wear and extends service life.
| Item | Unit | Parameter | ||||
|---|---|---|---|---|---|---|
| Rated Voltage | kV | 40.5 | 72.5 | 126 | ||
| Rated Insulation Level | a) 1min Power Frequency Withstand Voltage (RMS Value) | To Ground | kV | 95 | 140 | 230 |
| Across Contacts | kV | 115 | 160 | 245 | ||
| b) Rated Lightning Impulse Withstand Voltage (Peak Value) | To Ground | kV | 185 | 325 | 550 | |
| Across Contacts | kV | 215 | 375 | 630 | ||
| Rated Frequency | Hz | 50 | ||||
| Rated Current | A | 630 | 1250 | 1600 | 2000 | |
| Rated Short - time Withstand Current | kA | 20 | 31.5 | 40 | 40 | |
| Rated Peak Withstand Current | kA | 50 | 80 | 100 | 100 | |
| Rated Short - circuit Duration (Main Switch/Earthing Switch) | s | 4/2 | ||||
| Rated Terminal Mechanical Load | Horizontal Longitudinal Load | N | 750 | 1000 | ||
| Horizontal Lateral Load | N | 500 | 750 | |||
| Vertical Force | N | 750 | 1000 | |||
| Creepage Distance | mm | 1013/1256 | 1813/2248 | 3150/3906 | ||
| Mechanical Life | times | 200 | ||||
| Manual Operating Mechanism | Model | CS17, CS17G | ||||
| Control Circuit Voltage | V | AC220, DC110, DC220 | ||||
| Electric Operating Mechanism | Model | Cj6 | ||||
| Motor Voltage | V | AC220, AC380, DC220 | ||||
| Control Circuit Voltage | V | AC220, AC380, DC220 | ||||
| Opening/Closing Time | s | 6±1 | ||||
| Product Weight | Non - grounded | kg | 360 | 500 | 800 | |
| Single - grounded | kg | 390 | 560 | 900 | ||
| Double - grounded | kg | 430 | 620 | 1000 | ||
Widely used in substations and high-voltage transmission lines.
Provides isolation during maintenance of busbars, transformers, and circuit breakers.
Suitable for outdoor high-voltage power systems requiring reliable disconnection under no-load conditions.
Ensures safe electrical separation to protect operators and equipment.
GB1985-2004: AC High Voltage Disconnectors and Earthing Switches
DL/T486-2000: Ordering Technical Conditions for AC Disconnectors and Earthing Switches
JB/T8754-1998: High Voltage Switchgear Model Compilation Method
GB11022-2000: General Technical Requirements for High Voltage Switchgear
