CJ6
Fenarro
| Quantity: | |
|---|---|

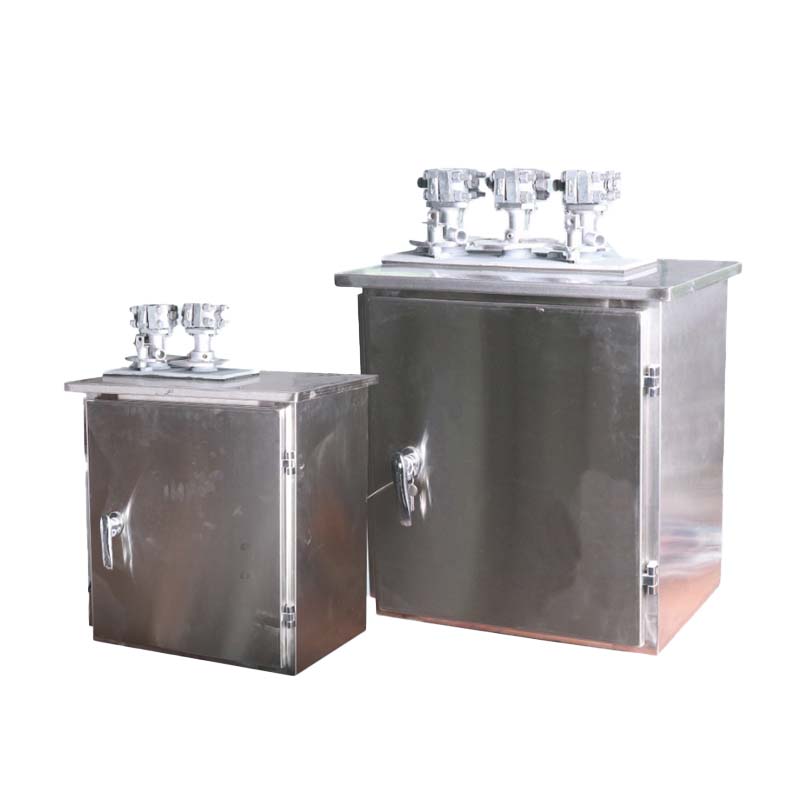

The CJ6 Outdoor High Voltage AC Disconnector is a specially designed switchgear mechanism for operating outdoor high-voltage disconnect switches. It allows for remote electric control, local electric control, and manual handle operation, ensuring flexibility and safety during power system operations. With its reliable structure, the CJ6 disconnector is suitable for various harsh environmental conditions while maintaining stable and efficient performance.
Designed for outdoor applications with high reliability.
Supports remote, local, and manual operation modes.
Robust construction, resistant to strong wind, ice, and seismic activity.
Compact and user-friendly operation with low maintenance requirements.
Suitable for high-voltage AC power systems requiring stable and secure switching.
| Item | Unit | Parameter | |
|---|---|---|---|
| Motor | Rated Voltage | V | AC380/DC220/DC110 |
| Rated Power | W | 600 | |
| Rated Speed | r/min | 1400 | |
| Rated Current | A | 1.7/2.5/5 | |
| Starting Current | A | ≤10 | |
| Control Circuit Voltage | V | AC 380/AC 220/DC 220/DC 110 | |
| Control Circuit Current | A | ≤1 | |
| Rated Output Torque | N·m | 1300 | |
| Opening/Closing Operation Time | s | ≤7/≤14 | |
| Output Shaft Rotation Angle of Operating Mechanism | 90°/180° | ||
| Weight of Mechanism | kg | 50 | |
| Closing Product Model | CJ21/CJ5/CJ6/CJ9 | ||
Ambient Temperature: -50°C to +150°C
Altitude: ≤ 2000 m
Wind Speed: ≤ 34 m/s
Ice Cover Thickness: ≤ 10 mm
Seismic Intensity: ≤ 8 degrees
Pollution Level: Suitable for IV and below
Sunlight Radiation Intensity: ≤ 1000 W/m² (clear midday conditions)
Not applicable in environments with explosive dust, conductive gases, or severe chemical corrosion.
Not suitable for non-horizontal installation.
Power Supply Voltage Range: 85%–110% of rated voltage.
