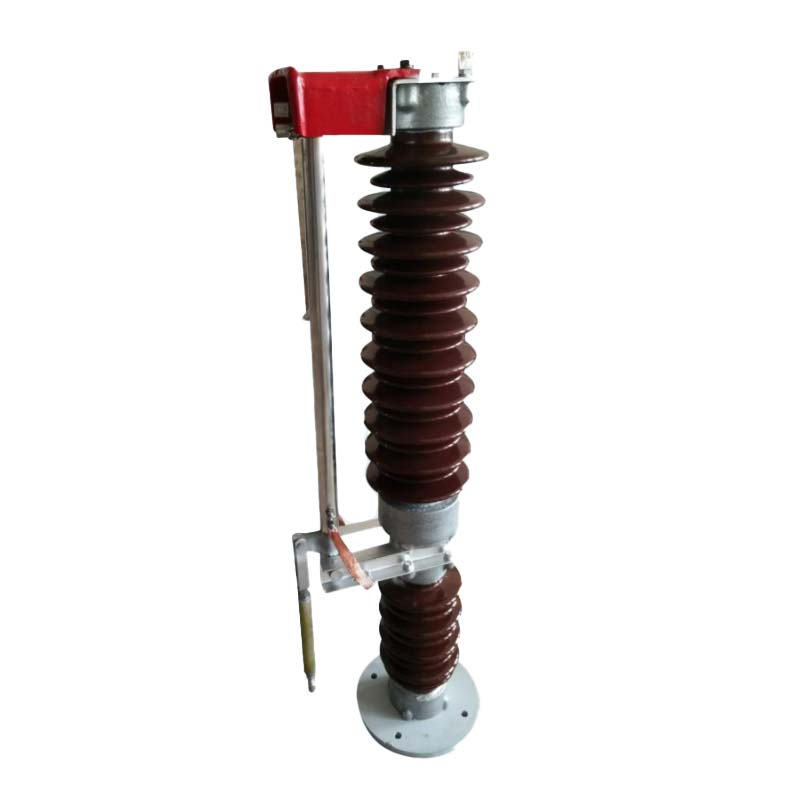

The disconnector mainly consists of:
Isolator body with contact assembly, rod-type porcelain insulators, conductive rods, and mounting plates.
Linkage system made of joints and connecting rods.
Operating mechanism capable of 120° horizontal rotation, transferring movement through the linkage to engage or disengage contacts.
A positioning device ensures the moving and static contacts remain in the correct closed or open position.
Compact folding structure reduces installation space.
Maintenance-free rotating parts with stainless steel pins and self-lubricating bearings.
Hot-dip galvanized steel components, providing excellent corrosion resistance and ensuring smooth, reliable, and rust-free operation.
Precise linkage mechanism ensures stable and accurate opening/closing positions.
Durable porcelain insulators provide reliable insulation and mechanical strength.
Suitable for outdoor high-voltage power distribution systems requiring safe isolation.
| Item | Unit | GW8 - 35G(W) | GW8 - 60G(W) | GW8 - 110G(W) | |
|---|---|---|---|---|---|
| Rated Voltage | KV | 35 | 60 | 110 | |
| Maximum Voltage | KV | 40.5 | 72.5 | 126 | |
| Rated Current | A | 400, 630 | 400, 630 | 400, 630 | |
| Rated Thermal Stability Current (Effective Value) | KV | 8 | 8 | 8 | |
| Rated Thermal Stability Time | S | 3 | 3 | 3 | |
| Rated Dynamic Stability Current (Peak Value) | KV | 20 (23) | 20 (23) | 20 (23) | |
| 1min Power Frequency Withstand Voltage (Full Wave) (Peak Value) | KV | 80 | 140 | 95 (215) | |
| Lightning Impulse Withstand Voltage (Full Wave) (Peak Value) | KV | 185 | 325 | 250 (460) | |
| Rated Static Tensile Force of Terminal | N | 500 | 500 | 750 | |
| Creepage Distance | - Normal Type | MM | 625 | 1100 | 1870 |
| - Medium Pollution Type | 875 | 1600 | 2750 | ||
| Product Weight | KG | 7575 | 90 | 105 | |
When placing an order, please specify:
Model and specifications of the disconnector.
Rated electrical parameters (voltage, current, insulation level).
Operating mechanism type required.
Type of grounding (non-grounded, single-grounded, or double-grounded).
Special accessories, spare parts, or tools if needed.
