How to Know If Your Power Distribution System Needs a Vacuum Load Break Switch

Introduction

Choosing the wrong switching device can increase project cost, complicate system design, or leave key protection requirements unmet. For many power distribution systems, the question is not simply whether to use a switch or a circuit breaker, but whether the switching point needs to interrupt short-circuit current.

If your system mainly requires load switching, line sectionalizing, or transformer feeder control, and short-circuit protection is already handled by fuses, upstream breakers, or other protection devices, a vacuum load break switch may be a practical and cost-effective choice. In this article, Fenarro explains how to judge whether a vacuum load break switch is the right solution for your power distribution project.

What Is a Vacuum Load Break Switch?

A vacuum load break switch is like an advanced switching valve with vacuum arc-extinguishing capability. It can switch normal load current and handle limited overload current, but it cannot deal with short-circuit faults on its own. In that case, high-voltage fuses, upstream circuit breakers, or other protection devices are needed to clear the fault.

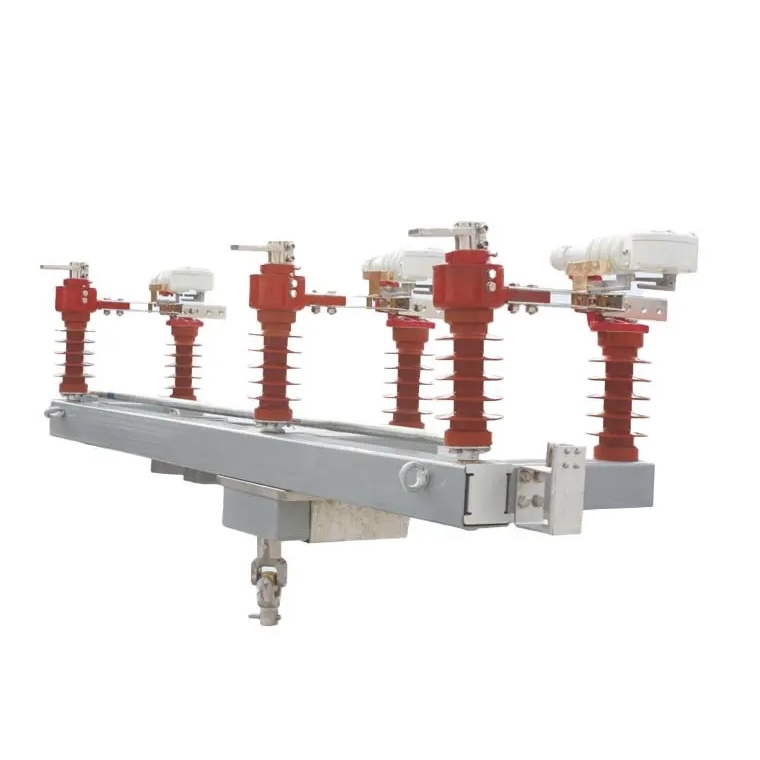

Example image of  vacuum load switches from Fenarro

How Does a Vacuum Load Break Switch Work?

In many vacuum load break switch designs, the switching process is completed by two key parts:

• A vacuum interrupter for load current interruption

• An isolating blade for visible isolation.

These parts operate in a mechanically interlocked sequence to support safe switching and isolation.

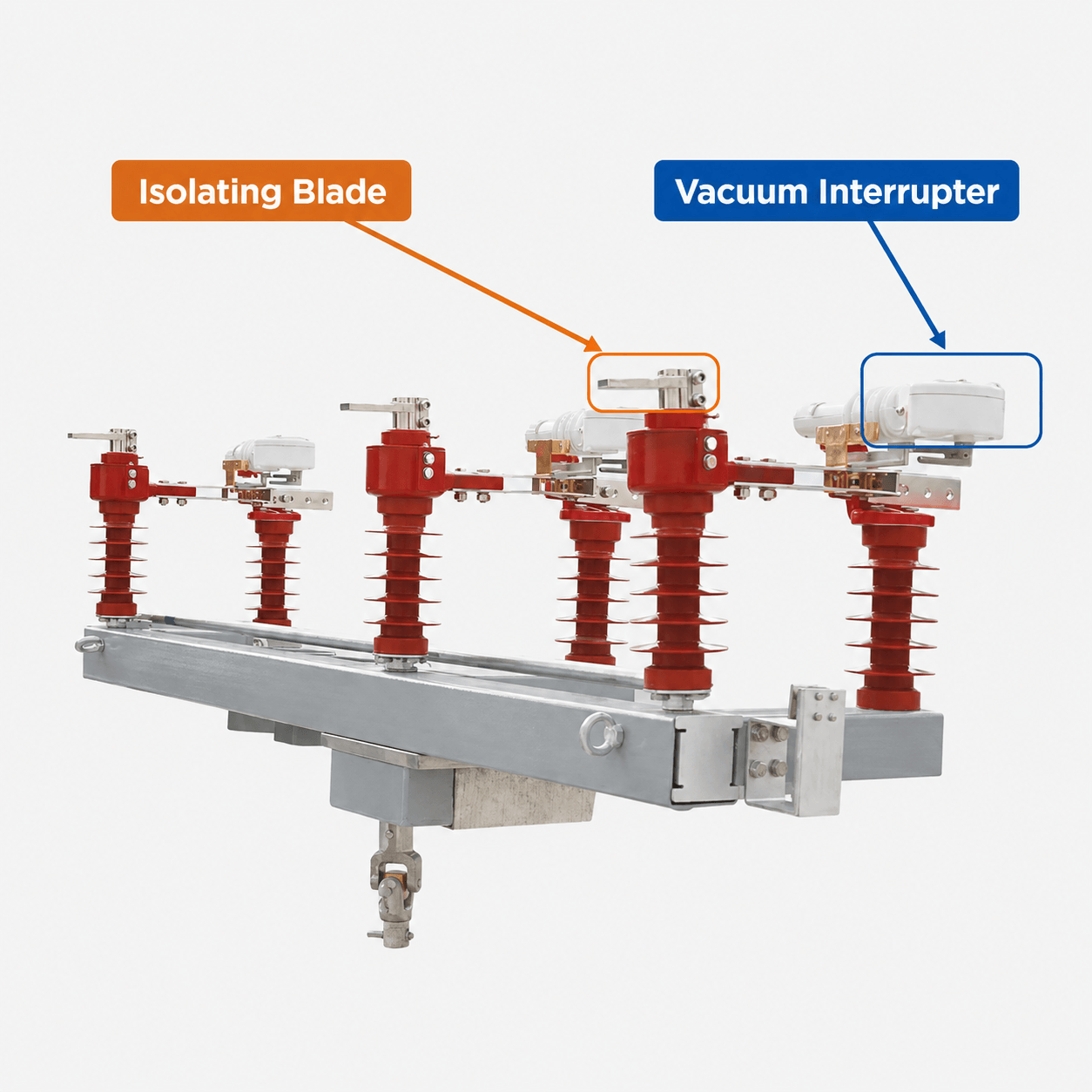

The image above highlights the vacuum interrupter and isolating blade positions for easier visual understanding.

Here is how a Vacuum Load Break Switch works in three steps:

1. Contact Separation: When the switch opens under load, the moving and fixed contacts separate inside the vacuum interrupter. An arc is generated between the contacts due to the inductive and resistive load current.

2. Arc Extinction: As the current passes through its natural zero point, the arc is rapidly extinguished inside the vacuum environment. The absence of ionized gas prevents the arc from re-igniting.

3. Insulation Recovery: After the arc is extinguished, the dielectric strength between the contacts recovers almost instantaneously. This enables reliable interruption of rated load current, with minimal contact erosion and virtually maintenance-free operation.

Why Use a Vacuum Load Break Switch Instead of a Circuit Breaker?

You may ask: Isn't this just a circuit breaker? Not exactly. A vacuum load break switch and a vacuum circuit breaker have different roles in a power distribution system.

A vacuum load break switch is mainly used for normal load switching, such as transformer switching, feeder operation, and routine circuit energizing or de-energizing. It can make and break rated load current reliably, but it is not designed to interrupt short-circuit current.

A vacuum circuit breaker is designed for both load current switching and fault-current interruption. It can interrupt short-circuit current during system faults, but it has a more complex structure and a higher cost.

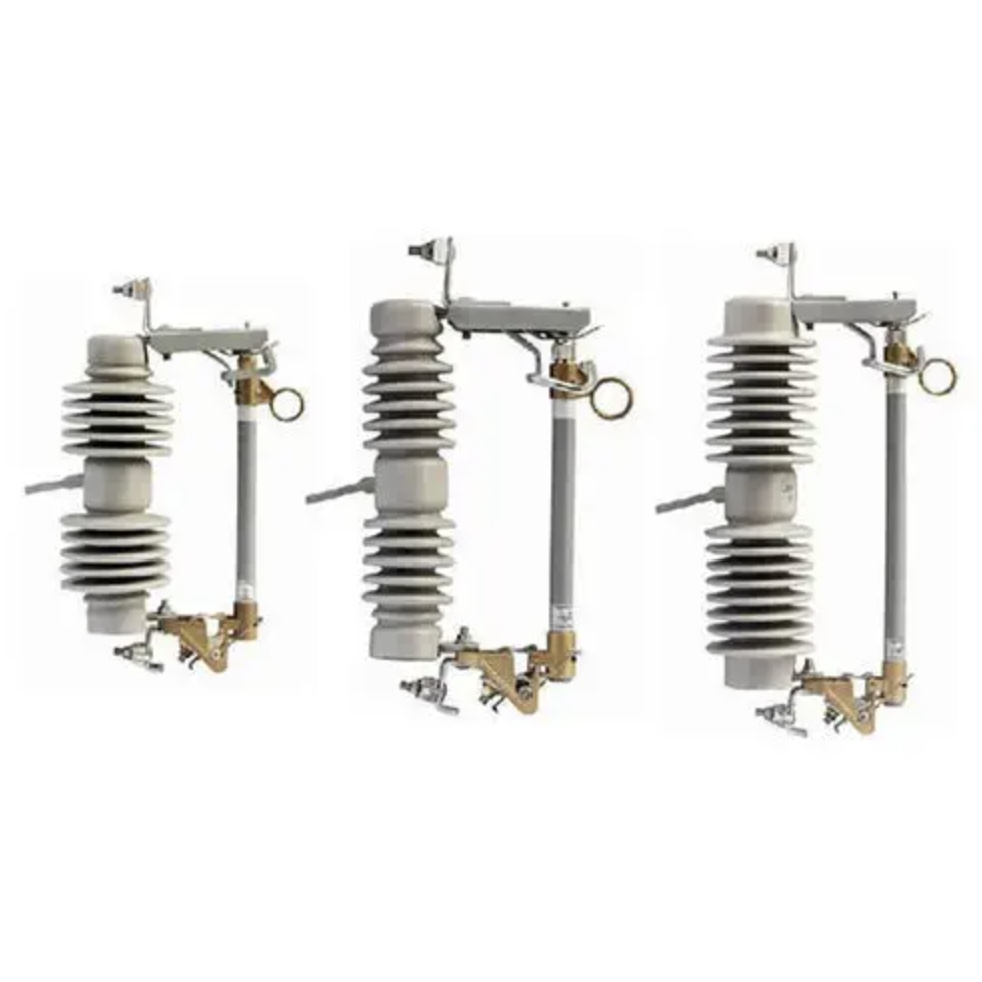

This is why vacuum load break switches are often used together with high-voltage fuses or upstream circuit breakers.

• In normal operation, the load break switch handles switching.

• In fault conditions, the fuse or circuit breaker provides short-circuit protection.

If you want to learn more about vacuum circuit breakers, you can also read the following Fenarro technical guides on VCB selection, applications, and performance.

High-Voltage Vacuum Circuit Breaker (VCB) Guide 2026 | Fenarro

Vacuum Circuit Breakers: Key Role in Renewable Energy Integration

When Should You Replace a Vacuum Interrupter in a VCB?

Key Benefits for Power Distribution Projects

After understanding the role of a vacuum load break switch, the next question is why it is widely used in distribution systems. The answer lies in its balance of switching performance, safety, maintenance efficiency, and cost control.

For many medium- and high-voltage distribution projects, a vacuum load break switch provides a practical solution where reliable load switching is required, but full short-circuit interruption is handled by fuses or upstream protection devices.

The table below highlights the key benefits of vacuum load break switches for power distribution projects:

Key Signs Your System May Need a Vacuum Load Break Switch

Before selecting a vacuum load break switch, the most important point is to understand what the switching device must do in your power distribution system. To make the decision clearer, Fenarro breaks the selection process into three practical steps: first, confirm whether short-circuit current must be interrupted at this point; second, compare the functional differences between a vacuum circuit breaker and a vacuum load break switch; third, match the device with your actual application scenario.

Step 1: Do You Need to Interrupt Short-Circuit Current?

This is the most important question. If the circuit only needs to switch normal load current, transformer no-load current, cable charging current, or routine operating current, a vacuum load break switch may be suitable. However, if the device must directly interrupt short-circuit current during a fault, a vacuum circuit breaker should be considered.

Step 2: Compare Vacuum Circuit Breaker and Vacuum Load Break Switch

A vacuum circuit breaker and a vacuum load break switch may look similar in some applications, but they are selected for different responsibilities. The comparison below shows when each device is more suitable.

• A vacuum load break switch can be understood as a reliable "operator" in a power distribution system. It is designed for normal switching duties, such as opening and closing load current, sectionalizing lines, or controlling transformer feeders.

• A vacuum circuit breaker, on the other hand, is the "protector." It is used when the system must interrupt dangerous fault current and protect key circuits during abnormal conditions.

If your power distribution system mainly needs reliable load switching, and short-circuit protection is already provided elsewhere, a vacuum load break switch may be the right choice for your project.

Step 3: Match Your Application Scenario

A vacuum load break switch is often a good fit if your project belongs to one of the following application scenarios.

• Substations, Industrial Facilities, and Urban/Rural Distribution Networks: Vacuum load break switches can support load switching, line sectionalizing, and feeder control in substations, industrial facilities, and urban or rural distribution networks. They are suitable for distribution points where reliable switching is required, but full fault-current interruption is handled by fuses, upstream breakers, or other protection devices.

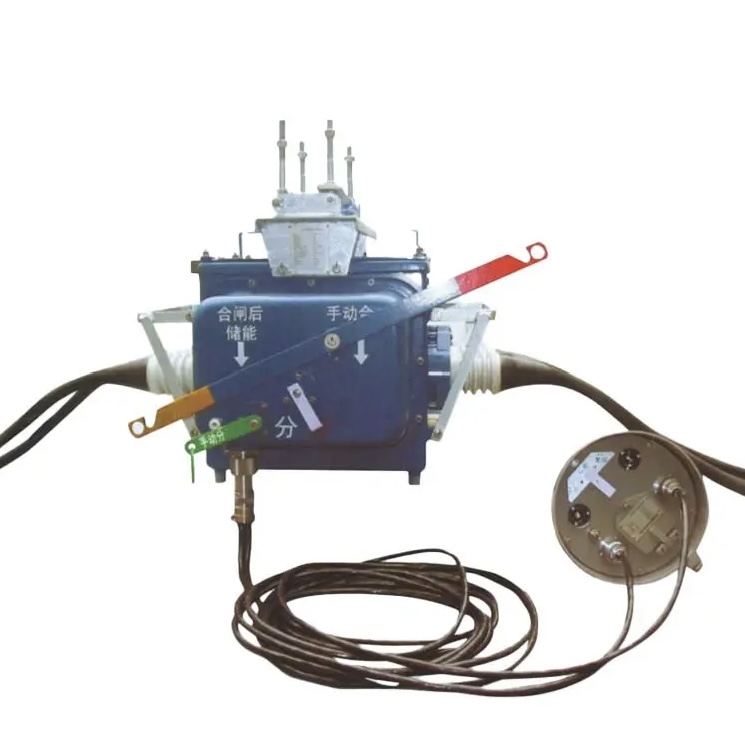

  For these applications, Fenarro offers outdoor vacuum load break switch solutions such as the FZW-40.5 Outdoor High Voltage Isolating Vacuum Load Break Switch and the FZW28-12F/(VSP5) Outdoor Sectionalizing Vacuum Load Break Switch. These products are suitable for power distribution networks, substations, industrial facilities, urban and rural grids, overhead line sectionalizing, and feeder automation applications.

• Pole-Mounted Switches for Overhead Lines: In outdoor overhead distribution lines, vacuum load break switches can be used as sectionalizing switches or tie switches. They help isolate line sections or connect different feeders according to the network operation requirements.

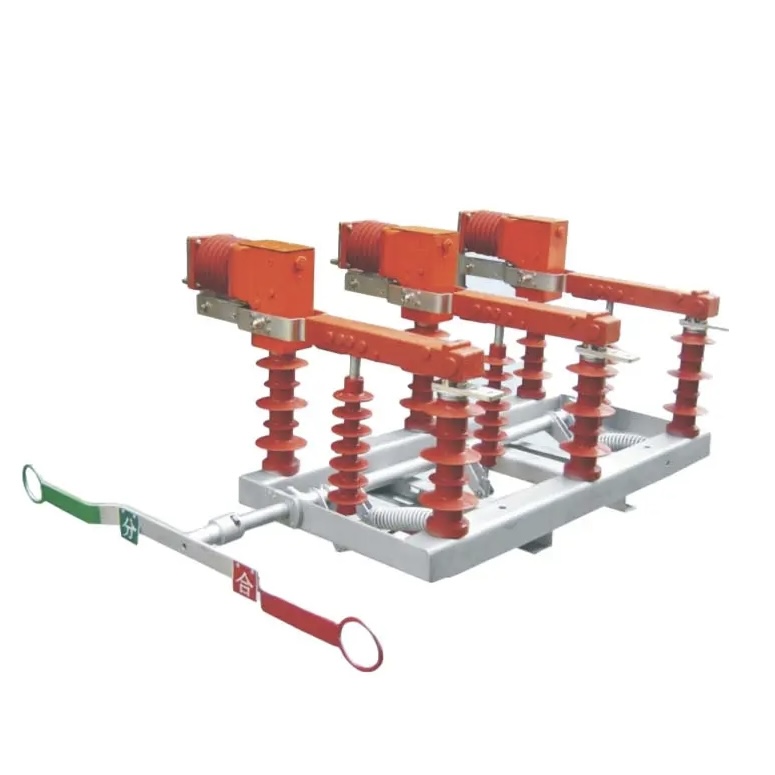

  For this application, Fenarro's FZW32-12 & FZW32-40.5 Outdoor High Voltage Isolating Vacuum Load Break Switch is a suitable option. It is designed for 12kV and 40.5kV three-phase AC distribution networks and supports load breaking, isolation, and sectionalizing in outdoor medium-voltage switching applications.



  FZW32-12 & FZW32-40.5 Outdoor HV Isolating-Load Switch Combo

• Applications Requiring Frequent Switching: Vacuum load break switches are suitable for applications that require regular switching operations, such as capacitor bank switching, high-voltage motor control, feeder transfer, or routine distribution network operation. Their vacuum interruption design helps support reliable operation with reduced maintenance requirements.

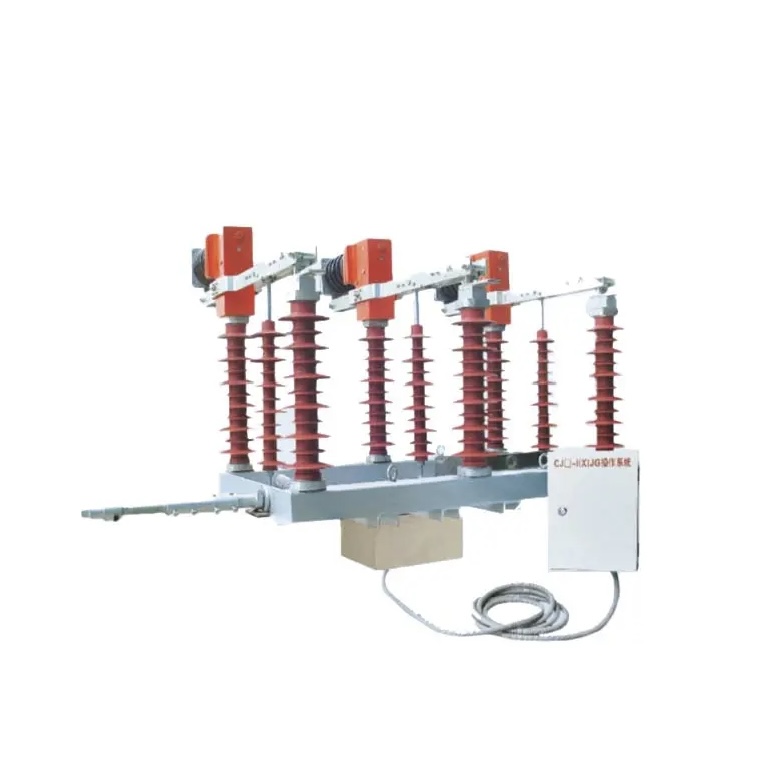

  For projects with frequent switching duties, Fenarro's vacuum load break switch series can provide strong mechanical endurance. For example, the FZW-40.5 Outdoor HV Isolating Vacuum Load Break Switch offers a mechanical life of up to 10,000 operations. This makes it suitable for distribution systems that require repeated switching, sectionalizing, and feeder control.

• Renewable Energy Grid Connection: Vacuum load break switches can also be used in renewable energy distribution systems, including wind power, solar power, and energy storage projects. They can support distribution-side switching, feeder control, and grid connection or disconnection points.

  For renewable energy projects, Fenarro also provides advanced new energy solutions covering photovoltaic systems, energy storage, EV charging infrastructure, distribution networks, and grid integration. This allows project owners and EPC teams to match switching equipment with broader renewable energy system requirements.

• Projects with Environmental Requirements: Compared with SF₆-based or oil-based switching equipment, vacuum load break switches use vacuum as the arc-extinguishing medium. This makes them a practical option for projects that aim to reduce gas monitoring, oil handling, environmental risk, or long-term maintenance requirements.

Conclusion

Choosing a vacuum load break switch is not about selecting the most powerful switching device. It is about selecting the right device for the right function. If you are planning a power distribution project, share your project requirements with Fenarro, and our team will help you match the right vacuum load break switch solution to your system.
