I have worked with high-voltage switchgear and vacuum circuit breakers for more than 16 years, and my answer is simple: a vacuum interrupter should be replaced when it can no longer prove its interrupting, insulating, or current-carrying ability.

A VCB vacuum interrupter does have a designed service life. Industry standards such as IEC 62271-100 and IEEE C37 define the performance framework for high-voltage AC circuit breakers, including rated operation, dielectric performance, and making/breaking duty. But the actual service life in the field is not decided by the calendar alone.

A breaker in a clean indoor substation may serve reliably for many years with very few operations. A breaker in a dusty industrial plant, a mining site, or a renewable energy substation with frequent switching may age much faster. The correct replacement decision comes from test results, operation history, and inspection findings.

If you need the broader basics first, you can read our full High-Voltage Vacuum Circuit Breaker Guide before using this article as a replacement checklist.

Key Signs That a Vacuum Interrupter Needs Replacement

These signs should not be read separately. For example, high contact resistance may come from terminals or tulip contacts, not necessarily the vacuum bottle itself. A timing problem may come from the mechanism. The goal is to identify the real cause before replacing parts.

For many retrofit or replacement cases, our engineers usually start from these same clues before recommending a new vacuum interrupter, a mechanism adjustment, or a complete VCB replacement.

1. Failed Vacuum Integrity Test

This is the strongest replacement signal.

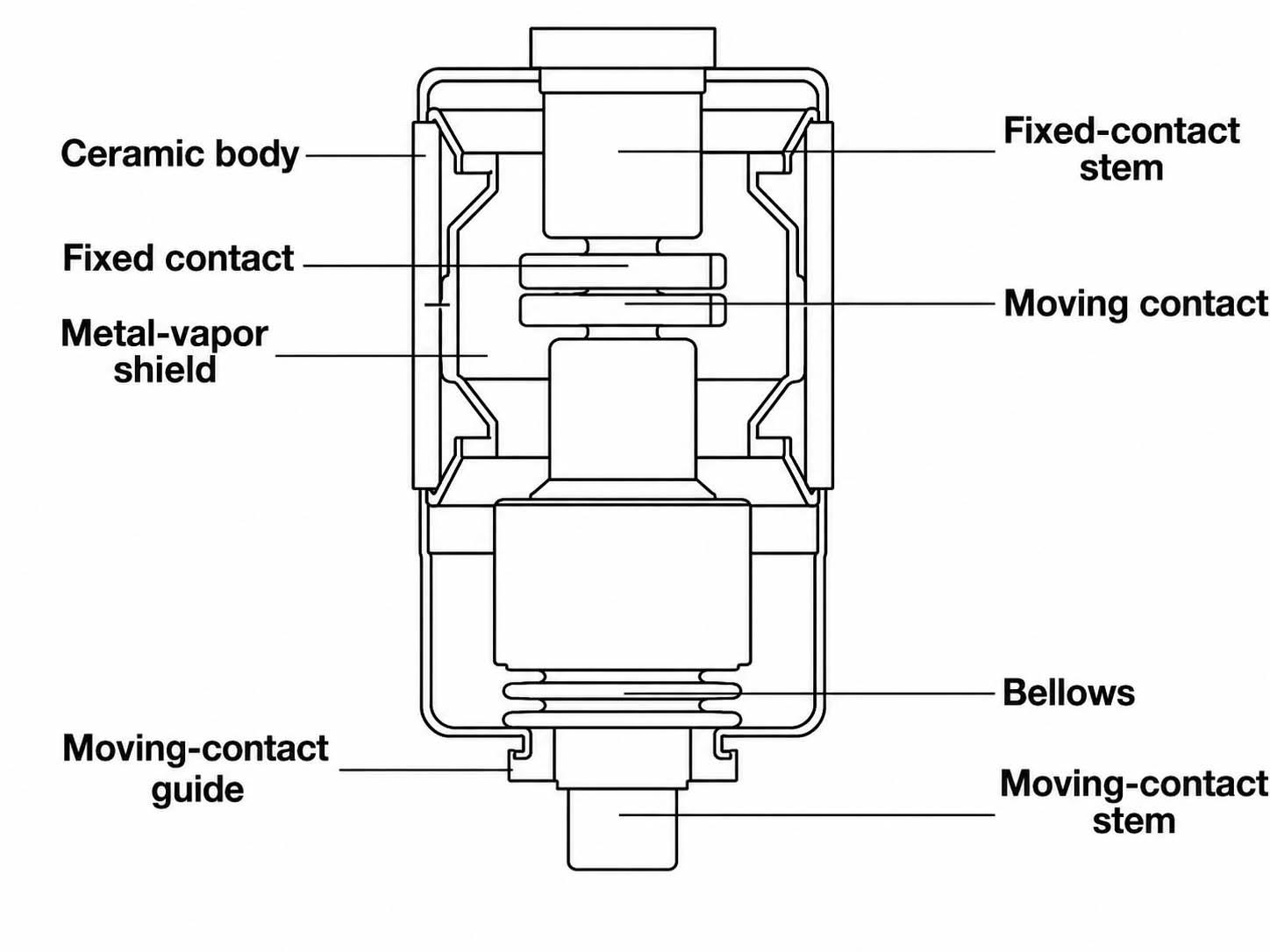

The vacuum inside the interrupter is what allows the contact gap to recover insulation strength after interruption. If the vacuum integrity test fails, the interrupter should not be trusted for fault duty, even if the breaker still opens and closes mechanically.

In most cases, a failed vacuum integrity test means the vacuum interrupter should be replaced.

2. Contact Erosion Beyond the Limit

Every interruption causes some contact wear. Normal load switching produces limited erosion, while fault interruption creates much heavier stress.

Most VCB designs provide an erosion indicator or a measurement method. Always compare the result with the breaker documentation. Do not apply a general number from another model, because contact wear limits are design-specific.

Once the erosion exceeds the allowed range, replacement is usually the correct decision.

3. Abnormal Contact Resistance

Contact resistance testing helps check the main current path.

A rising or abnormal value may indicate contact wear, poor connection, weak contact pressure, or overheating risk. Before deciding to replace the interrupter, inspect the primary terminals, tulip contacts, flexible connections, and pole assembly.

If the external current path is normal but resistance remains abnormal, the vacuum interrupter should be treated as a serious suspect.

This is also where an experienced VCB supplier can save time. A few clear photos, a test report, and a nameplate often tell us whether the problem is likely in the interrupter, the primary contact system, or the breaker mechanism.

4. Poor Timing or Travel

A vacuum interrupter depends on the operating mechanism. Correct opening speed, closing speed, stroke, overtravel, and contact pressure all matter.

If timing or motion test results are outside tolerance, first check the mechanism: springs, linkages, lubrication, coils, auxiliary switches, and adjustment. If the mechanism is healthy but the pole performance remains abnormal, the interrupter may need replacement.

This is a common mistake in the field: replacing the vacuum bottle when the real problem is mechanical, or repairing the mechanism while ignoring a worn interrupter.

5. Visible Damage or Overheating

Visual inspection is basic, but it often catches problems early.

Look for ceramic cracks, flashover traces, discoloration, overheated terminals, loose fasteners, damaged pole insulation, or abnormal smell after operation. In medium-voltage equipment, these are not cosmetic problems.

If physical damage is found around the vacuum bottle or its terminals, the breaker should be removed from service and tested before further operation.

6. Severe Fault Interruption History

After a major short-circuit interruption, do not only reset the breaker and move on.

Check the relay record, fault current level, operation counter, contact erosion, contact resistance, and vacuum integrity. A vacuum interrupter may still look normal after clearing a fault, but its contacts and dielectric condition may have changed.

The more severe the duty, the more important the post-fault inspection.

Replace the Interrupter or the Whole VCB?

The decision depends on the complete breaker condition.

For older switchgear, I normally review four things first: nameplate rating, mechanism condition, test report, and panel compatibility. This avoids replacing the wrong part.

If your existing breaker is no longer worth repairing, Fenarro can also support indoor and outdoor VCB selection for medium-voltage systems up to 40.5kV, including applications in substations, industrial facilities, renewable energy projects, and distribution networks.

What to Prepare Before You Ask for Engineering Support

If you are not sure whether the issue is the vacuum interrupter, operating mechanism, control circuit, or the complete VCB, prepare the following information:

• VCB nameplate photo

• Photos of the vacuum interrupter or pole assembly

• Rated voltage, rated current, and breaking current

• Latest vacuum integrity, contact resistance, or timing test report

• Operation counter reading, if available

• Fault history or relay record

• Short video of opening and closing operation

• Switchgear panel photos, especially for retrofit cases

With this information, a senior engineer can usually narrow down the problem quickly. In many cases, you do not need a long site visit to get the first technical direction.

At Fenarro, we prefer this kind of practical diagnosis before giving a recommendation. Sometimes the right answer is a new vacuum interrupter. Sometimes it is mechanism adjustment. Sometimes it is a replacement VCB or retrofit solution. The point is to solve the actual risk, not to sell the most expensive option.

FAQ

How long does a VCB vacuum interrupter last?

It depends on design rating, operation frequency, fault interruption history, environment, and maintenance quality. Standards define performance requirements, but field condition decides actual service life.

Can a VCB still operate with a weak vacuum interrupter?

Yes, it may still open and close. But mechanical operation does not prove that it can safely interrupt fault current or withstand voltage.

Should I replace one pole or all three?

If one pole has isolated damage and the other two pass testing, one-pole replacement may be possible. If the breaker is old or all three poles have similar stress history, evaluate all three together.

Is high contact resistance enough to replace the interrupter?

Not by itself. First check terminals, tulip contacts, flexible connections, and contact pressure. If those are normal and the value remains abnormal, the interrupter should be investigated further.

Conclusion

Replace a vacuum interrupter when testing and inspection show that it is no longer reliable for service. The most important signals are failed vacuum integrity, excessive contact erosion, abnormal resistance, poor motion results, visible damage, or severe fault history.

A good replacement decision is not based on fear or habit. It is based on evidence. If you are reviewing an old VCB or planning a retrofit, Fenarro’s engineering team can help you check the symptoms, compare replacement options, and choose a solution that keeps the system safe without unnecessary overdesign.
