Transformer Neutral Protection: How to Prevent Substation Overvoltages

1. Introduction

Before selecting a neutral-point protection arrangement, it is important to understand why this part of the transformer requires particular attention. In a 110 kV or 220 kV substation, neutral-point overvoltage is not merely an insulation concern—it can become a project-critical failure point. Lightning impulses, switching operations, and earth faults may expose the transformer’s graded neutral insulation to excessive voltage stress. Without properly coordinated protection, the result may include arrester overload, insulation damage, unexpected transformer trips, and delays to substation commissioning or operation.

This guide explains how a transformer neutral point grounding systems combines multiple protective functions to help manage lightning-induced surges, switching overvoltages, and sustained abnormal operating conditions with reference to IEC 60071 insulation-coordination principles.

2. Assembly Structure: How Neutral-Point Equipment Safeguards Transformers

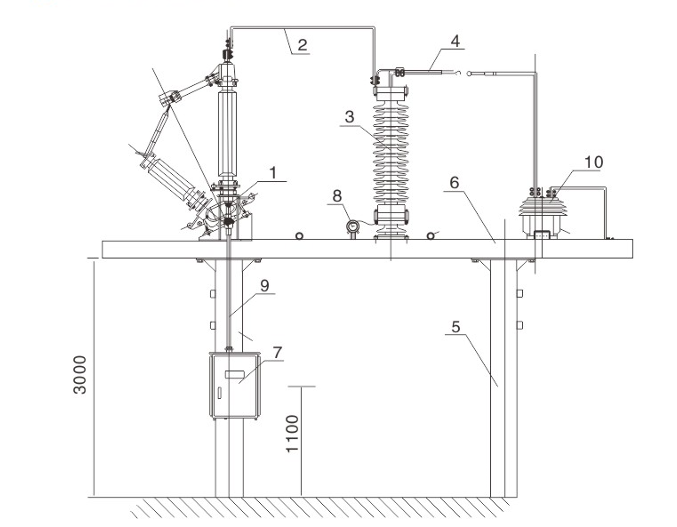

Fenarro's BZJ-110/220 Transformer Neutral Point Complete Device	Structural Drawing of Transformer Neutral Point Grounding Equipment

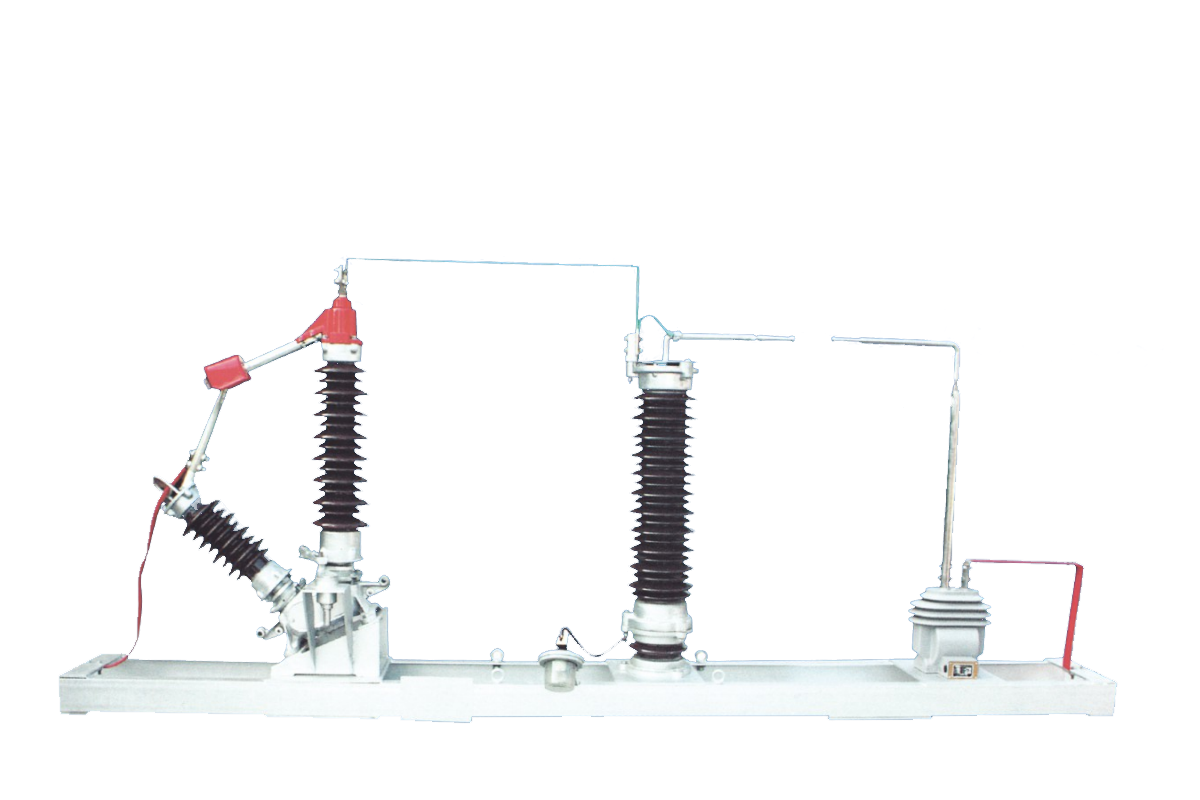

let’s use Fenarro’s BZJ-110/220 Transformer Neutral Point Complete Device as an example to see how the main components work together within one coordinated protection system. Rather than sourcing and matching loose electrical components separately, the complete system integrates four functional modules on a unified frame to provide isolation, transient-voltage limitation, sustained-overvoltage discharge, and operating-condition monitoring.

• Isolation Module — Item 1, GW13 Disconnector: Within the operating arrangement, the single-pole disconnector provides maintenance personnel with a visible and lockable isolation point, supporting safer servicing procedures and helping prevent unintended reconnection.

• Surge Suppression Module — Item 3, High-Voltage Surge Arrester: As the first response to fast transient events, the surge arrester changes to a low-resistance state during lightning or switching overvoltage and helps limit dielectric stress on the transformer insulation.

• Arc Clearance Module — Item 4, Discharge Rod Gap: When abnormal power-frequency overvoltage exceeds the specified breakdown level, the parallel discharge gap provides an additional path to ground, helping protect the transformer neutral insulation and reduce prolonged thermal stress on the surge arrester.

• Monitoring Module — Items 8 and 10, Surge Counter and CT: To support operation tracking, the surge counter and current transformer detect relevant current signals and operating events, which may be incorporated into the project’s protection, monitoring, or SCADA system.

3. Technical Comparison: Three Insulation-Protection Topologies

Once the functions of the individual components are clear, the main neutral-point protection topologies can be compared more effectively. With reference to IEC 60071 insulation-coordination principles, substation designers commonly evaluate the following three arrangements:

4. The Fenarro Solution: Pre-Engineered BZJ Series Device

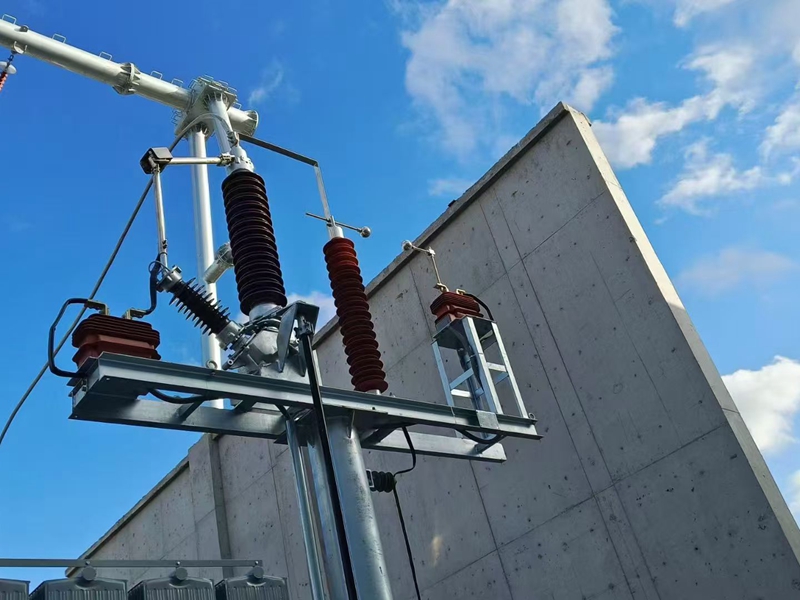

Fenarro BZJ Series transformer neutral-point protection device in service.

Although the combined surge arrester and discharge gap is the most widely used option, it still requires precise component coordination and installation. The Fenarro BZJ Series Neutral-Point Protection Assembly is designed to reduce the clearance, alignment, and interface uncertainties associated with separately sourced components while supporting project-specific IEC requirements.

• Reducing Spatial Coordination Risks: By integrating the disconnector, surge arrester, and discharge gap on a unified chassis—Item 6—the assembly helps simplify equipment positioning, electrical-clearance coordination, and the overall substation layout.

• Flexible Foundation Support: To accommodate different civil arrangements, the structural support columns—Item 5—can be adapted for installation on cement poles or galvanized steel structures according to the project layout and site conditions.

• Factory-Verified Assembly: Before dispatch, the integrated equipment can undergo specified Factory Acceptance Testing, helping reduce on-site mechanical alignment, interface verification, and commissioning work.

5. Technical FAQ

Q1: How is the mechanical spacing of the neutral rod gap determined?

For some 110 kV applications with a neutral BIL of 250 kV, a rod-gap distance of approximately 110–130 mm may be considered. However, the final spacing must be verified against the transformer design, surge-arrester characteristics, environmental conditions, and applicable project requirements rather than applied as a universal setting.

Q2: Why may railway traction substations require different neutral-protection configurations?

Railway traction networks may experience frequent switching operations and cyclical load changes associated with traction-system operation.These operating conditions may influence the required mechanical endurance of the neutral disconnector and the monitoring requirements for repeated surge-arrester operation. The final configuration should therefore be determined according to the traction power-system design, transformer parameters, operating conditions, and protection philosophy.

6. Conclusion

Protecting the transformer neutral point is only one part of the task. The equipment must also fit the project layout, control scheme, support structure, and commissioning plan.

The Fenarro BZJ Series combines the main protection and isolation components into one project-specific complete device, helping reduce integration uncertainty from design through installation. Share your project requirements to receive a coordinated layout and technical proposal.
