Managing X/R Ratio in Renewable Energy Substations: How to Select 33kV VCBs for Wind and Solar Power Plants

Introduction

I’m Ethan, a high-voltage engineer with 16 years of field experience. Many procurement managers face unexpected VCB failures at 33kV renewable sites because they ignore the system's high X/R ratio. This guide walks you through the core physics and selection parameters so you can avoid catastrophic grid failures.

1. The Core Physics: The Relationship Between X/R Ratio and DC Component

Before you choose a breaker, you must look at the unique layout of your network.

What is the X/R ratio?

The X/R ratio represents the system's inductive reactance (X) relative to its pure resistance (R).

What is the DC Component?

Short-circuit currents are asymmetrical, consisting of a standard AC wave and a temporary DC offset. The DC component acts as a trapped energy charge that must decay exponentially to zero.

The Interconnection:

The X/R ratio dictates the DC decay speed. A high X/R ratio means a larger decay time constant (τ). Because the network lacks enough resistance (R) to damp the charge, the DC component decays dangerously slow.

Why Wind Farms Have High X/R Ratios？

Unlike traditional grids with long, high-resistance transmission lines, wind farm collector networks face a unique physical topology:

• Proximity to Sources: Substations are located extremely close to large-capacity wind turbine generators and dense arrays of step-up transformers.

• Imbalanced Parameters: The heavy windings of these machines possess massive inductive reactance (X), while the system's pure internal resistance (R) is virtually zero.

• The Result: This "high X, low R" physical reality pushes the X/R ratio at the installation point to 20–30 or more, far exceeding standard commercial networks.

2. The Transients Loop: Slow DC Decay & Insulation Breakdown

A high X/R ratio slows down the fault current's DC component decay, causing extreme thermal stress during short circuits. However, the hidden killer at 33kV renewable sites is routine switching transients during operational closing and opening.

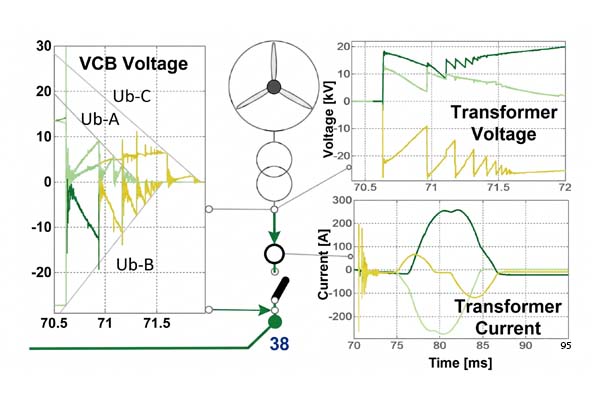

As pointed out in an IEEE study co-authored by power transient experts M. Popov (Senior Member, IEEE) and V. Terzija (Fellow, IEEE) [1], this environment drives a destructive loop. The measured waveforms at Busbar 38 (BB38) show exactly how this happens:

• VCB Pre-striking (Left): Severe voltage oscillations puncture the contact gap right before physical closing.

• Transformer TRV Spike (Top Right): A near-vertical, steep-front overvoltage wave hits the transformer terminals.

• High-Frequency Inrush (Bottom Right): Transients oscillate at megahertz (MHz) levels due to the pre-strike.

Ultimately, these steep, high-frequency waves concentrate directly on the first few turns of your wind turbine step-up transformers, causing instant inter-turn insulation failure.

Measured transients at BB38 [1]

Diagram adapted from M. Popov et al. [1] for professional visualization

3. How to Audit a VCB Datasheet: The 40% DC Component Rule

To prevent these field failures, you must look past the standard symmetrical kA ratings on a supplier's spec sheet. Use this application matrix to guide your review:

33kV Grid Application Selection Matrix

When you audit a datasheet for a 33kV wind farm project, find the "DC component percentage tolerance" at the moment of contact separation. If that value is not 40%, the breaker will fail under asymmetrical fault conditions.

4. The Solution: Fenarro 40.5kV VCB Series Built for High X/R Hazards

Under IEC standards, for a 33kV working voltage, you should always select a 40.5kV rated VCB. This ensures adequate creepage distance, safety clearance.Engineered for renewable grid tie-ins, the Fenarro ZW32-40.5 vacuum circuit breaker series upgrades core hardware physics to deliver definitive advantages:

• ≥ 40% DC Component Tolerance: Built for extreme wind X/R ratios of 20 to 30. It guarantees reliable arc quenching when highly asymmetrical short-circuit currents peak.

• Enhanced AMF Interrupter Structure: Optimizes contact materials and leverages Axial Magnetic Field (AMF) geometry. This instantly diffuses metal vapor to accelerate cooling, suppressing multiple reignitions and steep TRV spikes.

• All-Weather Environmental Adaptability: Features a Class Ⅳ pollution rating, certified operation up to 3000 meters altitude, and an extended temperature window of -30°C to +60°C to endure harsh outdoor terrains.

• Authoritative Standard Verification: Fully certified under IEC and GB standards through rigorous high-DC component interruption type testing.

4. Critical FAQs

Q: How can I tell if a VCB can handle a wind farm project from its standard parameter table?

• A: Because standard tables look identical to conventional units, you must specifically verify that the mechanical opening speed sits at the industry high limit of 1.4–1.8 m/s. Most crucially, you must request the manufacturer's Type Test Report to confirm the breaker has a verified DC component tolerance of ≥ 40%.

Q: Do solar plants and wind farms require the same VCB specs for X/R?

• A: No. Solar inverters limit fault currents electronically, reducing the overall DC offset stress. Wind farms use induction generators that feed massive, unmitigated inductive faults. Wind networks strictly require dedicated high-DC VCBs.

Q: What other outdoor environmental metrics matter for wind farm VCBs?

• A: Remote wind sites demand rugged construction. Ensure your supplier provides high pollution creepage (for salt and dust), verified vibration resistance (against turbine tower hums), anti-corrosion hardware, and wide operating temperatures (-40°C to +40°C).

  Our engineering team provides fully certified, ruggedized VCB solutions and technical advice to meet your exact project conditions.

Final Thoughts

Treating a 33kV renewable substation like a standard industrial network is an expensive mistake. If you need precise selection references for your layout planning, check out our comprehensive High-Voltage VCB Guide 2026. You can also reach out to our engineering team directly to review your specific single-line diagrams.

References & Technical Footnotes

[1] S. M. Ghafourian, I. Arana, J. Holbøll, T. Sørensen, M. Popov, and V. Terzija, "General Analysis of Vacuum Circuit Breaker Switching Overvoltages in Offshore Wind Farms," IEEE Transactions on Power Delivery, vol. 24, no. 1, pp. 320-332, Jan. 2009.
