The Role of SF6 Circuit Breakers in Modern Power Systems

Why SF6 circuit breakers remain the gold standard for high voltage protection worldwide.

Summary:

1. What Is an SF6 Circuit Breaker?

2. Working Principle

3. Advantages of SF6 Circuit Breakers

4. Applications

5. The Future of SF6 Technology

6. Conclusion

1. What Is an SF6 Circuit Breaker?

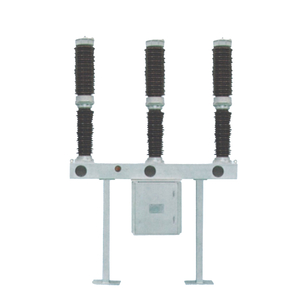

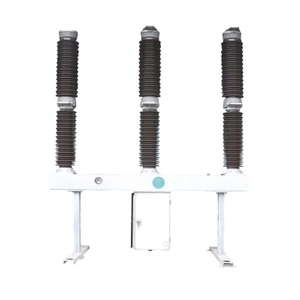

An SF6 circuit breaker uses sulfur hexafluoride gas as the insulating and arc-quenching medium. When a fault occurs, the breaker interrupts current flow by extinguishing the arc inside a sealed SF6 chamber, ensuring complete isolation and minimal power disruption.

This technology is widely adopted in voltages ranging from 72.5kV to 252kV, meeting the IEC and GB standards for global applications.

2. Working Principle

During normal operation, the SF6 gas remains stable and inert.

When a short circuit occurs:

• Contacts separate.

• An electric arc forms.

• SF6 gas is compressed and directed to the arc zone.

• The gas rapidly cools and de-ionizes the arc, breaking the current flow.

Its high dielectric strength and thermal stability make SF6 ideal for high-voltage switching.

3. Advantages of SF6 Circuit Breakers

• High Interruption Capacity: Capable of breaking large fault currents.

• Compact Design: Sealed structure requires less installation space.

• Low Maintenance: No oxidation or moisture ingress.

• Quiet and Reliable: Minimal mechanical wear ensures long service life.

• Environmental Safety (with proper recovery): Modern systems use gas recycling to reduce emissions.

4. Applications

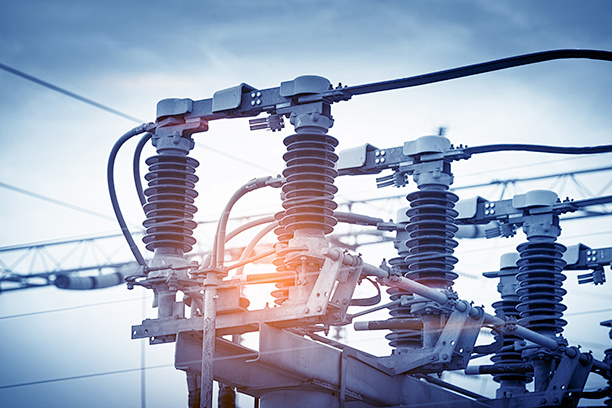

• High-voltage substations (72.5kV–252kV)

• Transmission and distribution networks

• Wind and solar power plants

• Industrial protection systems

5. The Future of SF6 Technology

Although SF6 remains dominant, alternative gases such as g³ and vacuum-interruption hybrids are emerging. Fenarro continues to innovate in eco-efficient SF6 systems with lower leakage and higher recycling efficiency.

6. Conclusion

SF6 circuit breakers combine superior insulation, high reliability, and long service life — ideal for modern smart grids. Fenarro’s IEC-certified breakers offer precise performance and customizable configurations for global clients.

Contact Fenarro to explore our SF6 circuit breaker solutions for your next substation upgrade.
