Transformer Drop-Out Fuse Selection Guide: How to Choose the Right Fuse Cutout for Transformer Protection

Introduction

When selecting protection equipment for a distribution transformer, choosing the right drop-out fuse cutout is an important step in ensuring reliable operation. For engineers and project teams, the selection process often involves several practical questions: What voltage class should be selected for the distribution system? How should the fuse rating match the transformer capacity? Is the fuse capable of safely interrupting the fault current at the installation point?

In this guide, we will explain the key selection factors for transformer drop-out fuses, including voltage class, current rating, fuse link selection, and breaking capacity, helping engineers choose a suitable protection solution for different distribution applications.

What Is a Transformer Drop-Out Fuse?

A drop-out fuse cutout is a medium-voltage protection device commonly used for outdoor transformer and distribution line protection.

It protects electrical equipment by interrupting abnormal currents caused by:

• Short circuits

• Overcurrent conditions

• Transformer faults

When the fuse link operates, the fuse holder drops open, providing a visible indication that the circuit has been disconnected. This feature makes drop-out fuse cutouts widely used in outdoor distribution applications where simple and reliable protection is required.

Typical applications include:

• Pole-mounted transformers

• Outdoor distribution transformers

• Medium-voltage branch circuits

Drop-out fuse cutouts on a utility pole

However, selecting the correct drop-out fuse requires more than choosing a product with the same voltage label as the system. Engineers need to evaluate several key parameters to ensure reliable operation.

Step 1: Select the Correct Voltage Class Based on System Voltage

The first step in selecting a drop-out fuse cutout is determining the correct voltage class for the electrical system.

The selected fuse voltage rating should meet the maximum system voltage and insulation requirements, rather than only the nominal voltage shown in the system design.

Typical selection examples include:

For 33kV and 35kV distribution systems, equipment manufacturers may use slightly different voltage rating descriptions. Some products are specified as 35kV rated, while others follow the 36kV class designation. The key requirement is that the selected fuse cutout meets the system insulation and operating voltage requirements.

Fenarro provides drop-out fuse cutout solutions covering 10kV to 40.5kV distribution applications.

Step 2: Calculate Transformer Current and Select Fuse Current Rating

After determining the voltage class, the next step is selecting the appropriate current rating.

The selection should start with the transformer full-load current.

For a three-phase transformer:

I = kVA / (√3 × kV)

Example:

For a 500kVA transformer operating at 11kV:

I = 500 / (1.732 × 11) ≈ 26A

However, the fuse link rating should not be selected exactly equal to the calculated operating current.

Transformers experience temporary high currents during energization, known as magnetizing inrush current. If the fuse rating is too close to the normal operating current, the fuse may operate unnecessarily during transformer startup.

Therefore, engineers need to consider:

• Transformer full-load current

• Magnetizing inrush current

• Temporary overload conditions

• Required protection level

The final fuse link rating should provide enough allowance for normal transformer operation while still protecting the transformer against abnormal faults.

Step 3: Understand Fuse Cutout Rating and Fuse Link Selection

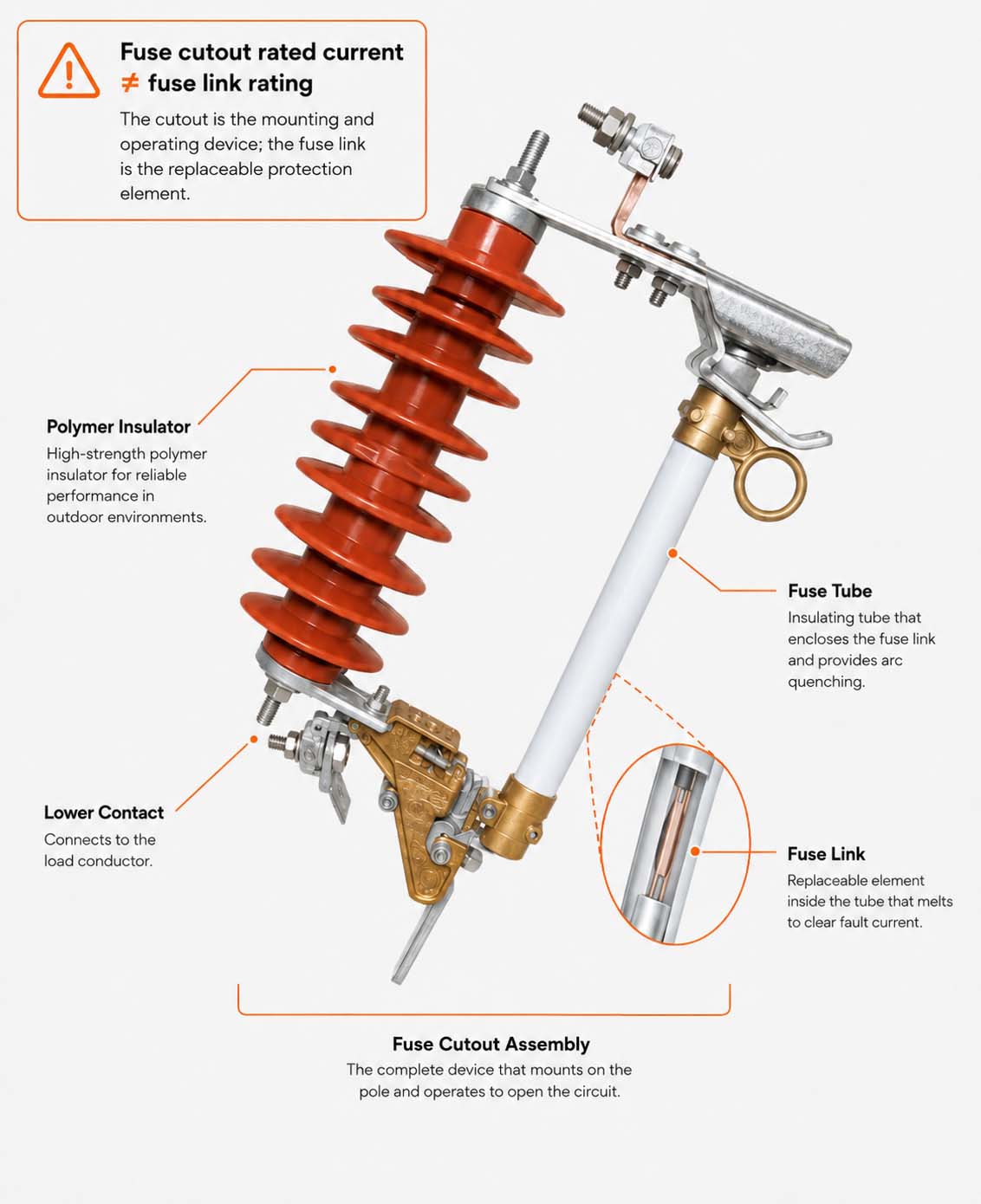

Drop-Out Fuse Cutout Assembly and Fuse Link Selection Overview

One important point in drop-out fuse selection is understanding the difference between the fuse cutout rating and the fuse link rating.

The fuse cutout rated current refers to the continuous current carrying capability of the complete device.

It indicates how much current the fuse assembly can safely carry during normal operation.

The fuse link rating determines the actual protection setting. The fuse link is selected according to:

• Transformer capacity

• Primary current

• Protection requirements

• Coordination with other protection devices

For transformer protection applications, fuse links are commonly selected to balance two requirements:

• Avoid unnecessary operation during normal transformer energization

• Provide fast interruption during serious faults

Different fuse link characteristics may also affect operation speed and coordination performance.

Step 4: Verify Breaking Capacity Against Fault Current

Current rating alone is not enough for protection selection. The selected drop-out fuse must also have sufficient interrupting capability for the fault conditions at the installation point.

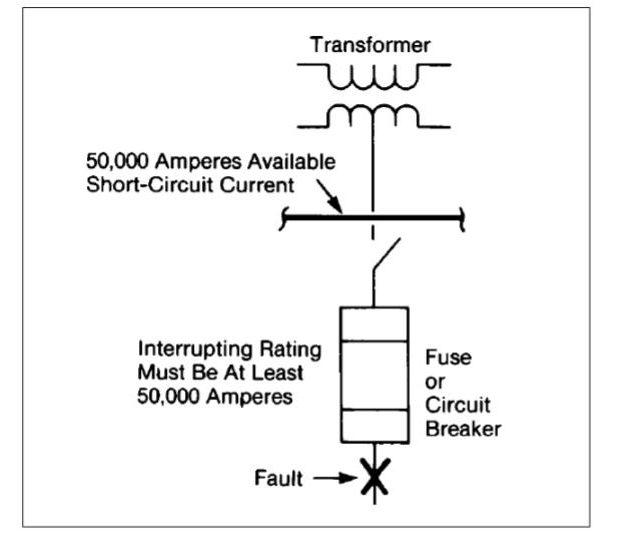

Interrupting Rating Must Be At Least The Available Fault Current

Engineers should compare fuse breaking capacity with available fault current at the installation location.

The available fault current depends on factors such as:

• Transformer impedance

• Distribution network characteristics

• Upstream system capacity

• Feeder length and impedance

For example, the short-circuit level at a substation may be higher than the actual fault current at a downstream transformer location due to line impedance. Therefore, the fuse breaking capacity should be selected based on the actual installation conditions rather than only the maximum system fault level.

Step 5: Consider Protection Coordination

A properly selected drop-out fuse should work together with the complete electrical protection system.

Protection coordination ensures that:

• The transformer receives adequate protection

• Unnecessary fuse operation is avoided

• The closest protection device operates first during faults

Engineers should consider coordination between:

• Transformer protection requirements

• Upstream protection devices

• Downstream fuses or circuit breakers

For larger or more complex distribution systems, protection curves and time-current characteristics may also be evaluated to achieve better coordination.

Fenarro Drop-Out Fuse Cutout Solution

Fenarro provides high-voltage drop-out fuse cutouts designed for transformer protection and medium-voltage distribution applications.

With products covering 10kV to 40.5kV applications, Fenarro offers different voltage and current options to meet various distribution requirements.

Beyond supplying reliable fuse cutout products, Fenarro supports customers throughout the selection process, including:

• Application evaluation
  Understanding system voltage, transformer parameters, and project requirements to recommend suitable fuse cutout solutions.

• Technical selection support
  Helping customers evaluate key parameters such as voltage rating, current rating, and breaking capacity.

• Project support and after-sales service
  Providing technical assistance and product support throughout the project lifecycle.

By combining reliable products with practical engineering support, Fenarro helps customers develop suitable transformer protection solutions for different medium-voltage applications.

Building a Complete Transformer Protection System

A drop-out fuse mainly provides protection against overcurrent and short-circuit faults. However, outdoor transformers may also face risks from lightning strikes and switching overvoltage.

For this reason, transformer protection systems often combine multiple protective devices to address different electrical risks.

A typical protection arrangement includes:

Incoming Line → Surge Arrester → Drop-Out Fuse Cutout → Transformer → Load

In this system:

• Surge arresters protect transformer insulation from lightning surges and switching overvoltage.

• Drop-out fuse cutouts provide overcurrent and short-circuit protection.

By combining overvoltage protection and overcurrent protection, the transformer can achieve more reliable operation under different electrical conditions.

For a complete range of fuse and surge protection products, please refer to: Fuses & Arresters Solutions

For more detailed information about surge arrester selection, please refer to: How to Select a High Voltage Surge Arrester

Work With Fenarro for Your Power Protection Needs

Every power distribution project has different operating conditions, system requirements, and application challenges. Selecting suitable equipment is only one part of developing a reliable electrical solution — understanding the project requirements and coordinating the right protection approach are equally important.

With experience in high-voltage electrical equipment, Fenarro works with customers to evaluate application requirements, provide suitable product recommendations, and support projects from initial selection through delivery. Whether you are planning a new distribution system or upgrading existing equipment, contact Fenarro to discuss your project requirements and explore a suitable power protection solution.

FAQ

How do I select a drop-out fuse for a transformer?

Selection should consider system voltage class, transformer capacity, full-load current, fuse link rating, breaking capacity, and protection coordination requirements.

What voltage class drop-out fuse should I choose?

The fuse voltage class should match the electrical system voltage level. For example, 10kV/11kV systems commonly use 12kV class fuses, while 33kV/35kV systems typically require higher voltage classes.

What is the difference between fuse cutout rated current and fuse link rating?

The fuse cutout rated current refers to the continuous current capacity of the complete device, while the fuse link rating determines the actual protection setting.

Why is breaking capacity important for drop-out fuse selection?

Breaking capacity ensures that the fuse can safely interrupt the fault current that may occur at the installation point.
