Outdoor drop-out fuse cutouts are widely used in medium-voltage distribution systems to protect transformers and power lines. During long-term operation, these devices are exposed to weather conditions, electrical faults, pollution, and mechanical stress, which may gradually affect their protection performance.
Regular inspection and proper maintenance help ensure that drop-out fuse cutouts operate reliably when abnormal conditions occur. This guide explains practical inspection points, fault diagnosis methods, and replacement considerations to help engineers maintain reliable transformer protection systems.

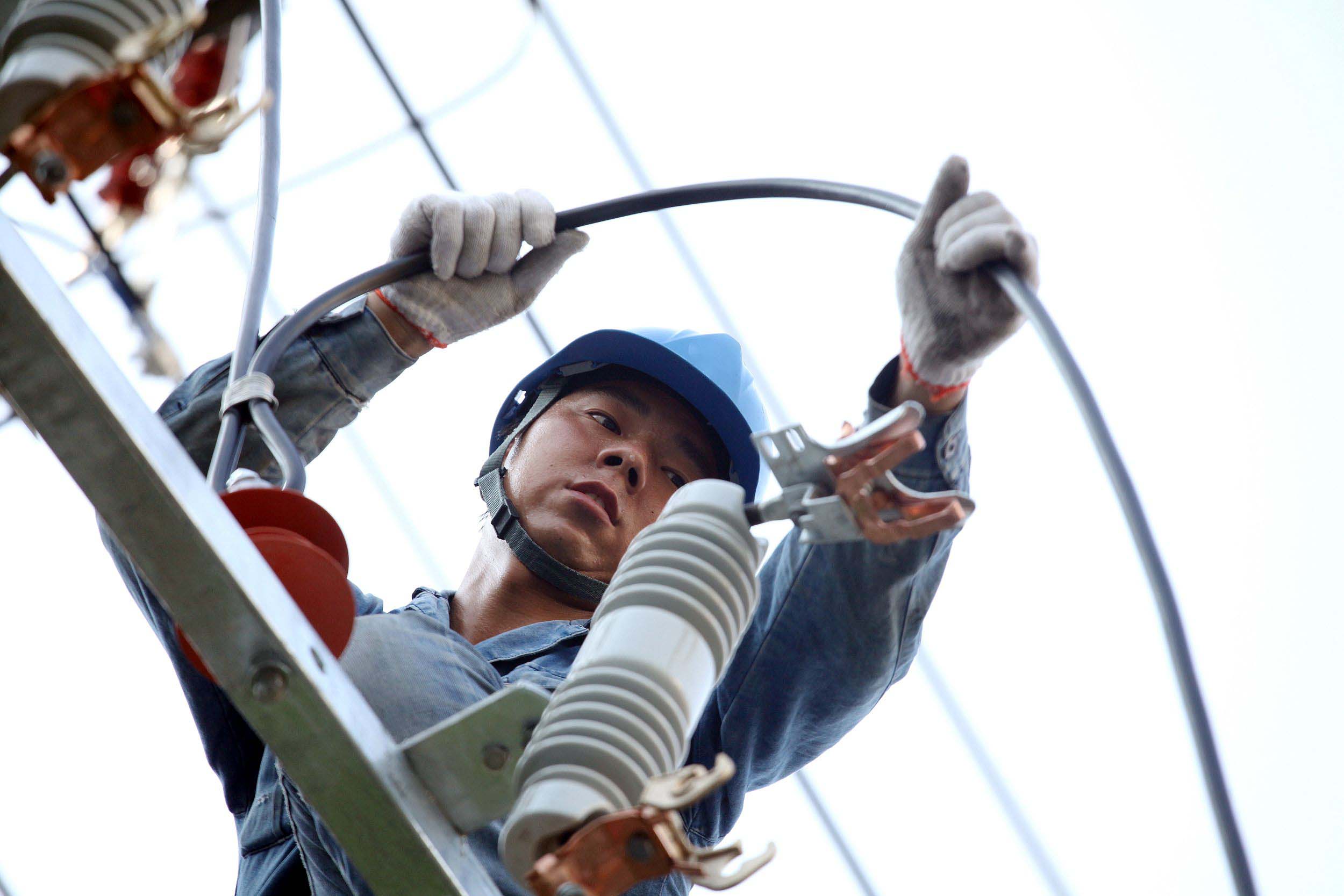

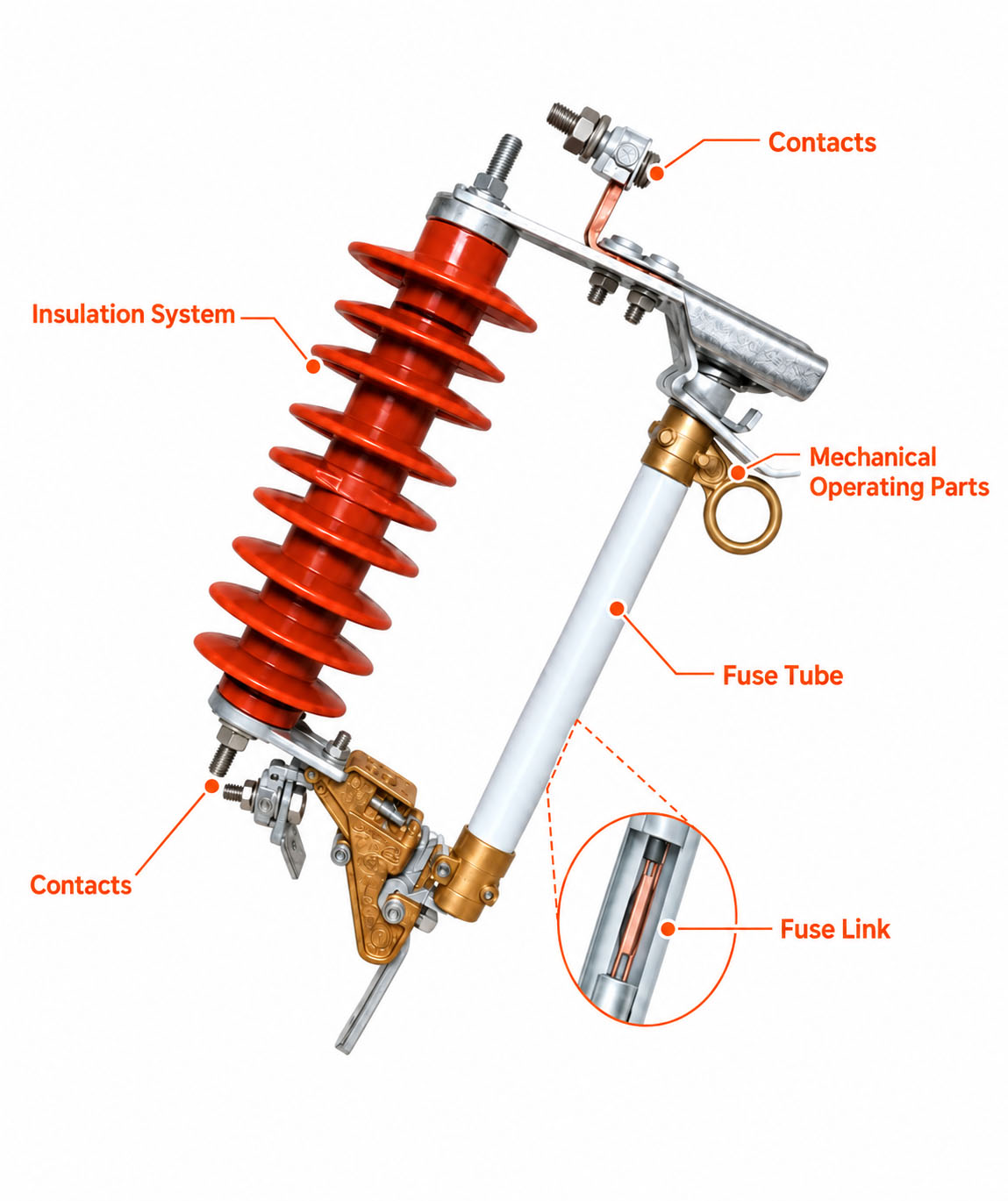

A drop-out fuse cutout is designed to provide reliable overcurrent and short-circuit protection with a simple and durable structure. However, its performance depends on several components working together, including the fuse link, fuse tube, contacts, insulation system, and mechanical operating parts.
Over time, issues such as contact degradation, insulation contamination, or improper fuse replacement may reduce protection reliability. Regular maintenance helps identify potential problems before they lead to unexpected operation failures or unnecessary power interruptions.
Regular inspection helps identify potential problems before they affect the protection performance of a drop-out fuse cutout. During routine maintenance, engineers should focus on the condition of the insulation system, fuse tube, contact points, and mechanical structure.
The insulator provides electrical isolation between energized components and the mounting structure. Its condition directly affects the insulation reliability of the fuse cutout, especially in outdoor environments exposed to pollution, moisture, and weather changes.
During inspection, check for:
Cracks or physical damage
Surface contamination
Tracking marks or signs of surface discharge
Pollution from salt, dust, or industrial environments may create leakage current paths along the insulator surface. Under humid conditions, this can increase the risk of external flashover.
For installations in coastal or industrial areas, insulation performance should be evaluated according to the local pollution level. According to IEC 60815 guidance, required creepage distance varies depending on pollution severity:
Pollution Level | Typical Creepage Distance |
|---|---|
Light | 16 mm/kV |
Medium | 20 mm/kV |
Heavy / Very Heavy | 25–31 mm/kV |
For detailed maintenance inspection, insulation resistance testing may also be performed using a megohmmeter. As a general field reference:
Above 1000MΩ usually indicates good insulation condition.
Below 100MΩ may indicate possible insulation degradation and requires further evaluation.
The fuse tube provides mechanical support for the fuse link and plays an important role in arc interruption during fault operation. Although the fuse link is the replaceable protection element, the condition of the fuse tube also affects the overall reliability of the fuse cutout.
During routine inspection, check for:
Cracks or physical damage on the fuse tube
Signs of overheating or burning
Deformation that may affect mechanical movement
Proper installation and alignment
A damaged or deformed fuse tube may affect the opening mechanism and prevent the fuse cutout from operating correctly when protection is required.
Contact condition is critical to maintaining reliable current flow through the fuse cutout. Loose connections, corrosion, or reduced contact pressure can increase contact resistance and cause abnormal temperature rise.
During inspection, check for:
Discoloration caused by overheating
Corrosion or oxidation
Loose terminal connections
Damaged contact surfaces
Infrared inspection is commonly used to identify abnormal temperature rise. As a general reference:
Temperature Difference (ΔT) | Recommended Action |
|---|---|
1–3°C | Record and monitor during future inspections |
4–15°C | Schedule maintenance to investigate contact issues |
> 15°C | High-temperature condition requiring immediate attention |
If abnormal heating is detected, corrective actions may include cleaning contact surfaces, tightening connections, or replacing damaged contact components.

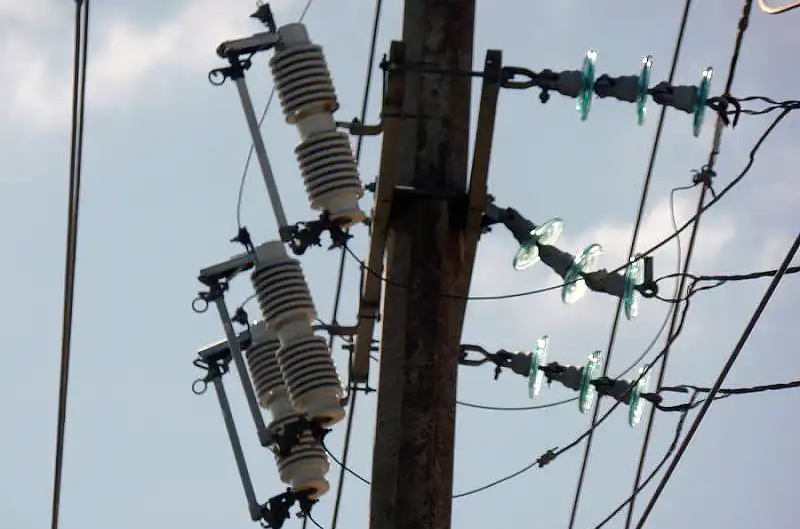

The mechanical structure ensures that the fuse tube can operate correctly and provide visible isolation after a fault.
Routine inspection should include:
Fuse tube movement
Hinge condition
Locking mechanism
Mounting alignment
The installation angle also affects operating performance. A typical installation angle is around 20°–30° from vertical.
Incorrect installation or mechanical deterioration may cause:
Failure of the fuse tube to drop after operation
Difficult manual operation
Additional stress on hinges and operating components
When a drop-out fuse operates, the priority is not simply replacing the fuse link, but identifying why the protection device operated.
A fuse operation may be caused by different conditions, including downstream faults, transformer problems, overload conditions, or incorrect fuse selection. Understanding the condition of the operated fuse link can provide valuable information about the possible cause.
Before installing a replacement fuse link, engineers should evaluate:
Whether the protected transformer is operating normally
Whether downstream equipment has possible faults
Whether abnormal loading conditions exist
Whether the installed fuse link matches the application requirements
Replacing a fuse link without identifying the cause may result in repeated operation or insufficient protection.
The appearance of the operated fuse link can provide clues about the fault type.
A high-current short circuit usually produces obvious signs, such as:
Heavy carbonization or vaporization of the fuse element
Significant blackening inside the fuse tube
Severe arc erosion marks
These conditions may indicate a major fault, such as a downstream short circuit, transformer fault, or other equipment failure. The protected equipment should be inspected before returning the system to service.
Fuse operation caused by overload or long-term thermal stress may show:
A relatively clean fuse element break
Limited arc damage inside the fuse tube
In this situation, engineers should evaluate:
Transformer loading conditions
Actual operating current
Whether the fuse link rating matches the application
An incorrectly selected fuse link may cause unnecessary operation during normal operating conditions.
If the fuse element fails near the connection point rather than at the designed melting section, the cause may be local overheating rather than excessive fault current.
Possible causes include:
Loose connections
Insufficient contact pressure
Increased contact resistance
In this case, the contact condition should be inspected before replacing the fuse link to prevent repeated failures.
The replacement fuse link should match the system and protection requirements, including:
Voltage rating
Current rating
Fuse characteristics
Transformer protection requirements
A higher-rated fuse link should not be installed simply to prevent repeated operation, as this may delay fault interruption and reduce transformer protection effectiveness.
For more information about selecting suitable fuse ratings, refer to our guide on how to select the correct drop-out fuse cutout for transformer protection.
Problem | Possible Causes | Inspection / Action |
|---|---|---|
Frequent fuse operation | Overload, downstream fault, incorrect fuse selection | Check load current, transformer condition, and fuse rating |
Contact overheating | Loose connection, corrosion, increased contact resistance | Perform thermal inspection and check contact condition |
Fuse tube fails to drop | Incorrect installation angle, mechanical damage, hinge problems | Check mechanism condition and mounting alignment |
External flashover | Pollution, moisture, insulation degradation | Inspect insulation condition and creepage distance |
Poor fault interruption performance | Excessive fault current or damaged fuse tube | Verify fault level and inspect fuse components |
Maintenance should not focus only on fuse link replacement. Other components, including the fuse tube, contacts, and insulation parts, may also require evaluation after repeated operation or severe faults.
After a high-current fault interruption, the fuse tube should be inspected for signs of arc damage or mechanical deterioration. Severe fault operations may reduce the future arc-extinguishing capability of the component.
Replacement decisions should be based on the component’s operating history, the severity of the fault event, the actual condition of the equipment, and the manufacturer’s maintenance recommendations.
The required inspection frequency depends on operating environment, pollution level, climate conditions, load conditions, and fault history.
Inspection should be performed in the following situations:
Inspection Timing | Checks |
|---|---|
Routine Inspection | External condition, Insulator cleanliness, Contact condition, Mechanical operation |
After Fuse Operation | Fault cause, Fuse link specification, Fuse tube condition, Protected transformer condition |
After Severe Weather Events | Lightning storms, Heavy rain, Strong wind, High pollution exposure |
Reliable power protection requires not only suitable equipment but also proper application evaluation and technical support.
Fenarro provides support for drop-out fuse applications, including product selection guidance, application evaluation, fuse replacement recommendations, and technical assistance for different medium-voltage distribution requirements.
Whether you are maintaining existing equipment or planning a new protection system, contact Fenarro to discuss your project requirements and find a suitable solution.
How often should drop-out fuse cutouts be inspected?
Inspection frequency depends on environmental conditions, equipment importance, pollution level, and operating history. Additional inspection is recommended after fuse operation or severe weather events.
What should be checked after a drop-out fuse operates?
The cause of operation should be identified first. Engineers should check the protected equipment, fuse components, and fuse link specifications before returning the system to service.
Why does a drop-out fuse operate repeatedly?
Repeated operation may result from overload conditions, downstream faults, incorrect fuse link selection, or other protection coordination issues.
Can a higher-rated fuse link be installed to prevent nuisance operation?
No. A higher-rated fuse link may reduce protection effectiveness. The fuse rating should be selected according to transformer requirements and protection coordination conditions.
