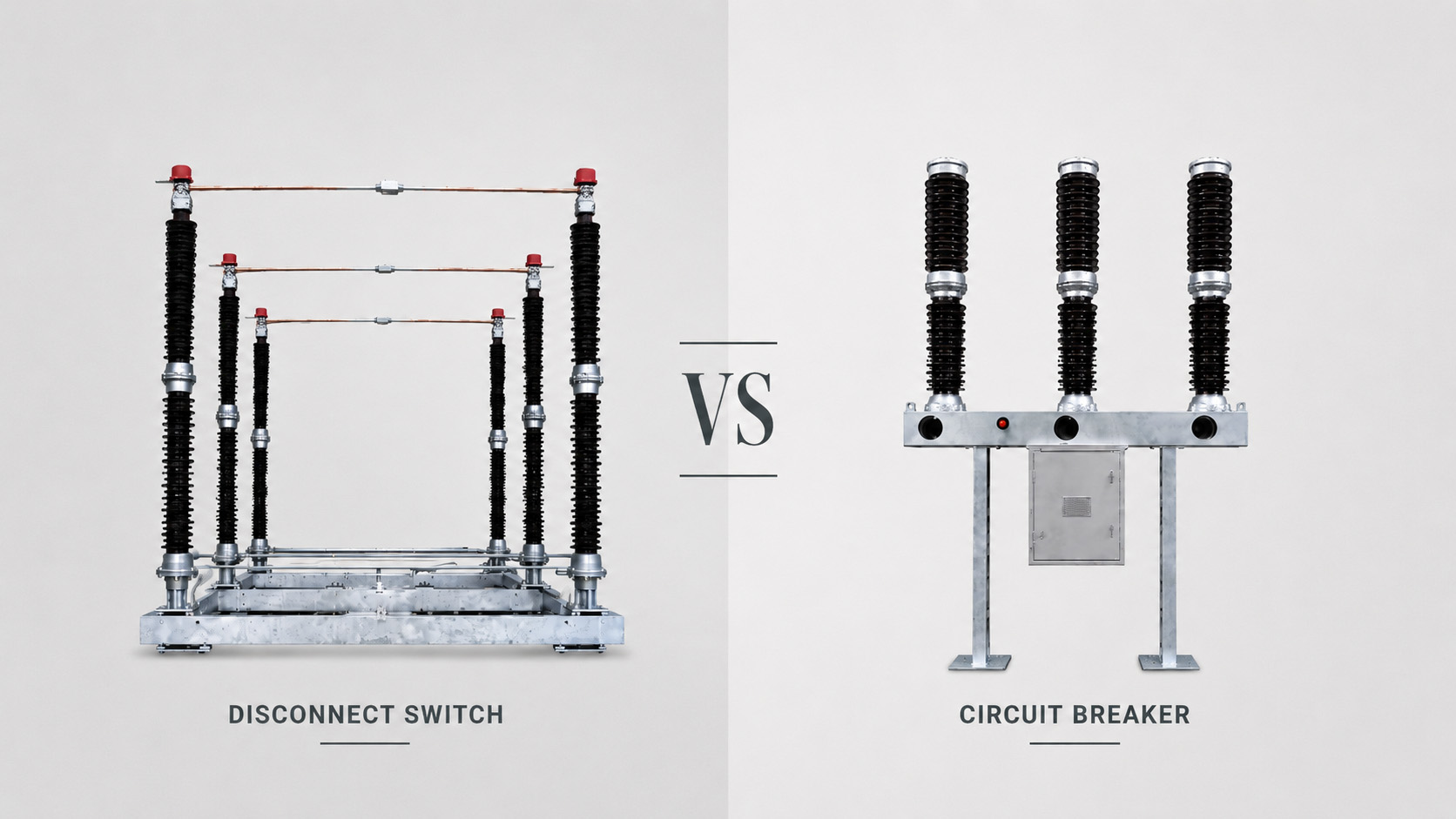

HV Disconnect Switch Vs Circuit Breaker: Key Differences And Selection Guide

Introduction

Disconnect switches and circuit breakers are often confused in high-voltage projects because both devices can open or close a circuit.

The difference is simple: a circuit breaker interrupts load current and fault current, while a disconnect switch provides visible isolation after the circuit has already been de-energized.

This distinction affects safety, operation sequence, and equipment selection. For high-voltage systems, the selected equipment should also be checked against relevant IEC 62271 standards and supported by proper certificate documentation.

For this reason, Fenarro treats technical parameters, compliance documents, and project operating conditions as part of the selection discussion, not just as paperwork after quotation.

Drawing on my over 16 years of experience in high-voltage electrical equipment as a senior engineer at Fenarro, I wrote this article to explain the difference between disconnect switches and circuit breakers from three practical angles: function, safety logic, and selection criteria.

1. What Is a High Voltage Disconnect Switch?

Fenarro's GW4-252(D)(W) Outdoor HV Disconnector

A high voltage disconnect switch, also called an HV disconnector or high voltage isolator, is used to create a visible break in a high voltage circuit.

That visible break is its value.

Before inspection or maintenance, operators need to know whether a section of the system has been physically separated. A disconnect switch makes that isolation point clear and visible.

In most designs, it is a relatively simple mechanical device. You will usually see post insulators, a conductive blade, fixed contacts, and an operating mechanism. Some models also include a grounding blade for maintenance safety.

So when you think of a disconnect switch, think of visible isolation.

It helps:

• Separate a circuit section physically

• Confirm an open point before maintenance

• Support safe switching arrangements together with other high voltage equipment

2. What Is a High Voltage Circuit Breaker?

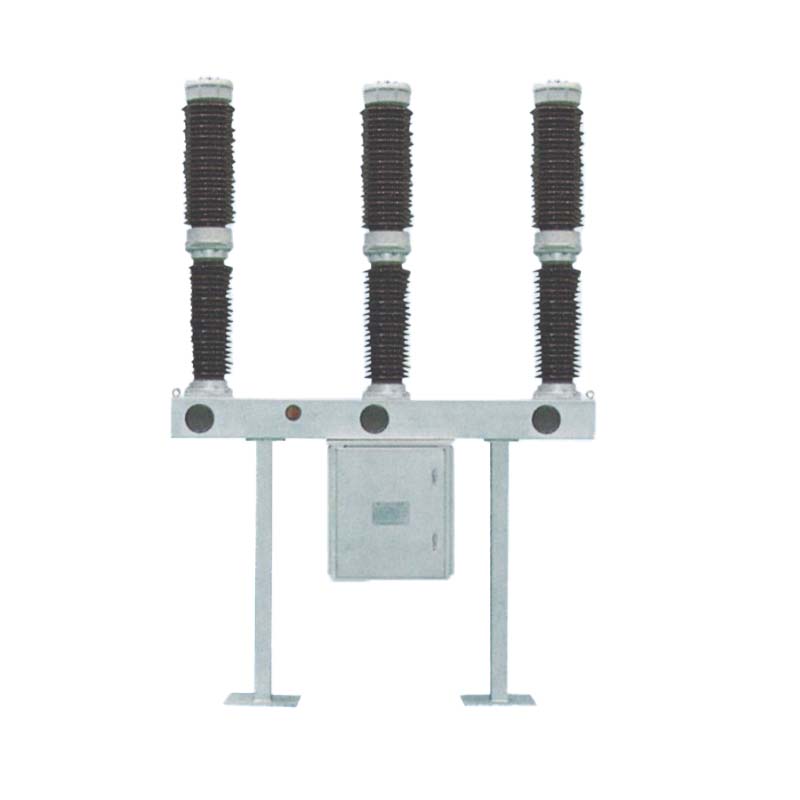

Fenarro's LW36-72.5 Outdoor HV SF6 Circuit Breaker

A high voltage circuit breaker plays a different role.

Instead of simply showing an open isolation point, it is built to interrupt current. It can open a circuit during normal operation and, more importantly, break fault current when something goes wrong.

That is why a circuit breaker has parts a disconnect switch does not need, such as an interrupter or arc-extinguishing chamber. It also works with control circuits and protection relays, so it can trip when a fault is detected.

Its job is not just to open a path.

Its job is to open the path safely while current is flowing.

A circuit breaker is mainly used to:

• Interrupt load current

• Clear fault current

• Work with protection relays

• Protect transformers, lines, busbars, and other high voltage equipment

In short, a disconnect switch helps operators see isolation. A circuit breaker helps the system interrupt current safely.

3. Key Differences Between Disconnect Switch and Circuit Breaker

4. Why a Disconnect Switch Cannot Replace a Circuit Breaker

The comparison table shows the basic difference between the two devices.

But the real reason comes down to one safety issue: current interruption.

The Core Safety Issue: Arc Interruption

CIGRE high-voltage equipment training materials describe disconnectors as devices with very limited current-switching capability. They are not intended for breaking load current and should be used together with a device capable of interrupting short-circuit current.

This is because separating contacts while current is flowing can create an electrical arc.

A circuit breaker is designed to control and extinguish that arc.

A disconnect switch is not.

If a disconnect switch is opened under load current or fault current, the arc may remain uncontrolled and may cause:

• Equipment damage

• Phase-to-phase faults

• Phase-to-ground faults

• Fire risk

• Operator safety hazards

Structural Reason

A circuit breaker includes an arc-extinguishing chamber or interrupter.

A disconnect switch mainly uses visible conductive parts, such as the blade and fixed contacts, to create a physical open point.

That structure is suitable for isolation, but not for current interruption.

Functional Reason

• Circuit breaker: clears current before isolation

• Disconnect switch: confirms physical separation after current has been cleared

One removes the electrical current risk.

The other provides the visible isolation point.

That is why a disconnect switch cannot replace a circuit breaker in a high voltage system.

5. Applications in High Voltage Systems

When Is a Disconnect Switch Used?

A disconnect switch is used when a high-voltage system needs a visible isolation point before inspection, maintenance, or equipment replacement.

In real projects, it is commonly used for:

• Transformer isolation
  Creating a visible open point before transformer inspection, testing, or maintenance.

• Circuit breaker maintenance
  Separating the breaker from energized parts before repair or replacement.

• Busbar and line isolation
  Isolating busbars, overhead lines, or circuit sections during planned switching or maintenance.

• Indoor switchgear isolation
  Providing compact visible isolation inside switchgear rooms, distribution rooms, or compact substations.

• Outdoor substation isolation
  Supporting visible isolation in open-air substations, industrial power systems, and renewable energy projects.

When Is a Circuit Breaker Used?

A circuit breaker is used when the system needs to interrupt current or clear electrical faults.

In real projects, it is commonly used for:

• Feeder protection
  Interrupting current when a feeder fault occurs.

• Transformer protection
  Working with protection relays to disconnect transformers during abnormal or fault conditions.

• Line protection
  Isolating faulty line sections by interrupting load or short-circuit current.

• Renewable energy grid connection
  Protecting solar or wind power collection systems during abnormal current conditions.

• Industrial power distribution
  Supporting safe interruption and protection in factories, mines, and heavy industrial facilities.

6. Quick Selection Tool

After comparing functions, risks, and application positions, you can make a quick judgment by asking one practical question:

What job does this device need to perform?

Simplified Decision Rule

A faster way to decide is to look at the job position.

If the device is placed on a feeder, transformer circuit, cable circuit, or grid-connection point where faults may need to be cleared, specify a circuit breaker.

If the device is placed beside a transformer, busbar, line section, or circuit breaker mainly to create a safe maintenance boundary, specify a disconnect switch.

If the project requires both fault clearing and maintenance isolation, use both devices in sequence:

1. The circuit breaker interrupts the current.

2. The disconnect switch creates the visible isolation point.

3. The grounding switch is applied if maintenance safety requires it.

For procurement teams, this means the decision should not start with the device name. It should start with the job: clear current, isolate equipment, or do both.

7. Procurement Selection Checklist

Before selecting a disconnect switch or circuit breaker, confirm a few basic points:

• System rating
  Rated voltage, rated current, and short-circuit requirement.

• Device role
  Visible isolation, current interruption, fault clearing, or combined arrangement.

• Installation condition
  Indoor or outdoor installation, pollution level, altitude, temperature, and project environment.

• Operation requirement
  Manual or motorized operation, remote control, relay coordination, or interlock requirement.

• Compliance documents
  Type test reports, drawings, certificates, and technical parameters required by the project.

A reliable supplier should help check these points against the actual project conditions, not simply recommend a model number. At Fenarro, this project-based review is part of how we support engineers and procurement teams before equipment selection moves to quotation.

Conclusion

This comparison is not about which device is better; it is about where each device belongs in the switching sequence.

Need to interrupt current or clear faults? Use a circuit breaker.

Need a visible open point for maintenance confirmation? Use a disconnect switch.

Need both protection and safe isolation? Use both devices in the correct order.

Never treat a disconnect switch as a substitute for a circuit breaker under load or fault conditions.

For high-voltage projects where the switching sequence is not obvious, Fenarro can help review the single-line diagram and confirm where interruption and isolation should each happen.

FAQ

What is the main difference between a disconnect switch and a circuit breaker?

A disconnect switch provides visible isolation, while a circuit breaker interrupts current and clears faults.

Can a disconnect switch replace a circuit breaker?

No. A disconnect switch is not designed to interrupt load current or short-circuit current.

Can a circuit breaker replace a disconnect switch?

Not completely. A circuit breaker can interrupt current, but it usually does not provide the same visible open point required for maintenance confirmation.

Do high-voltage systems usually need both devices?

Yes. Many high-voltage systems use both: the circuit breaker clears current, and the disconnect switch confirms safe isolation afterward.
