Outdoor Vacuum Circuit Breaker Selection for Solar Power Substations

Introduction

As utility-scale renewable energy projects continue expanding across desert, coastal, and high-temperature regions, medium-voltage switchgear is facing operating conditions very different from those of traditional power systems. This article focuses on the selection of outdoor vacuum circuit breakers in photovoltaic substations and new energy power collection systems. Combining the IEC 62271-100 standard and experience from large-scale new energy projects, it analyzes the engineering application requirements of 40.5kV VCBs in high-temperature, high-pollution, and outdoor environments.

As renewable energy substations continue facing increasingly complex fault conditions, DC offset and high X/R ratio behavior are becoming more important in VCB engineering selection. Our article on Managing X/R Ratio in Renewable Energy Substations further discusses how asymmetrical fault current affects 33kV VCB performance in wind and solar applications.

For a more general overview of vacuum circuit breaker ratings, classifications, and medium-voltage switching applications, refer to the High-Voltage Vacuum Circuit Breaker (VCB) Guide 2026.

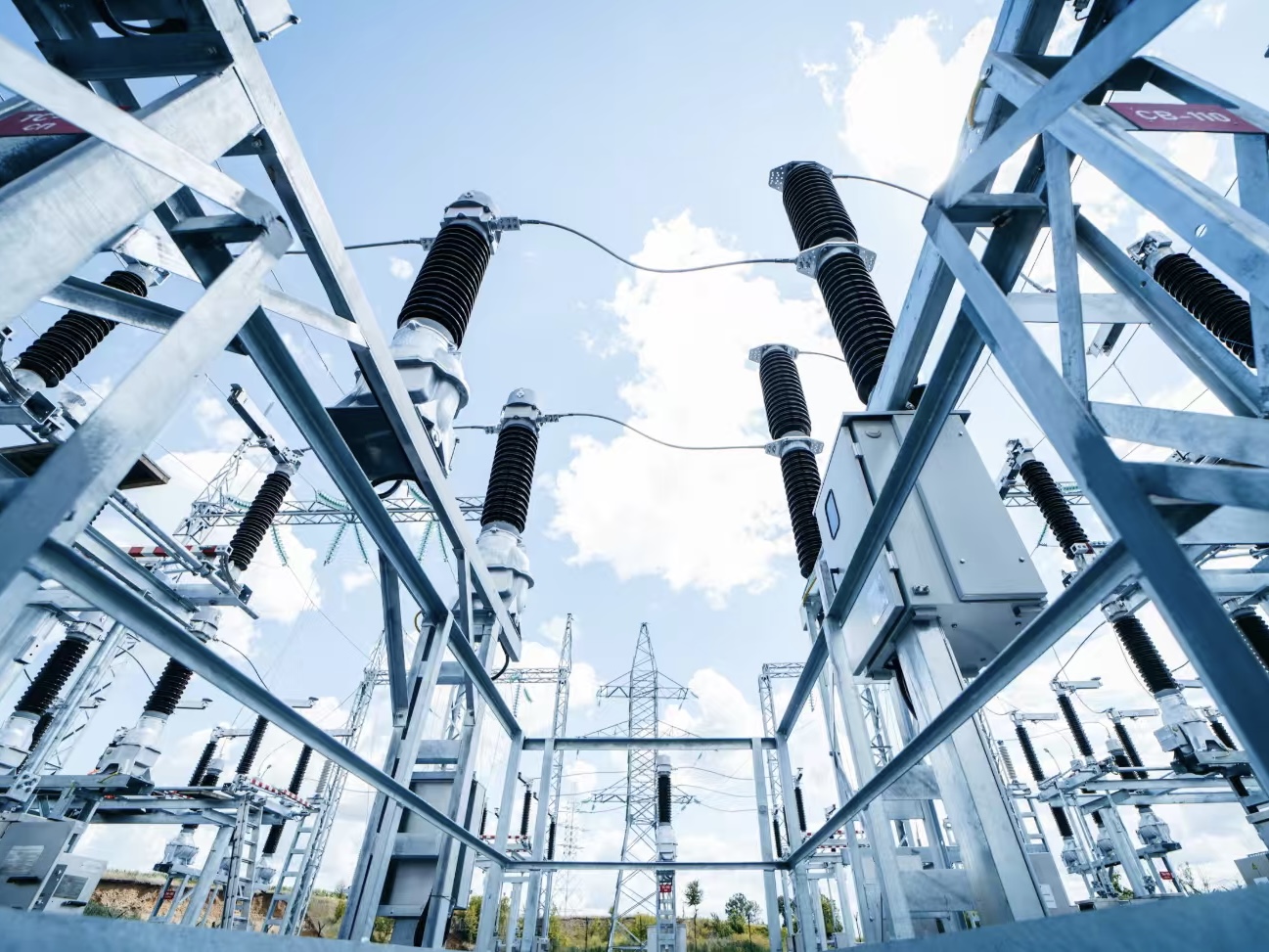

Why Solar Power Plants Create New Challenges for VCBs

At first glance, a photovoltaic substation may appear electrically simpler than a conventional thermal power plant. However, in actual utility-scale projects across the Middle East, Southeast Asia, and Africa, the same VCB selection problems appear repeatedly:

• Breaking capacity selected using conventional generation assumptions only

• DC offset in asymmetrical fault currents overlooked

• Outdoor mechanism enclosures with insufficient IP protection, leading to dust ingress and operating failures

• No verification of derating performance above 50°C ambient temperature

• SCADA communication integration postponed until site commissioning

These issues rarely become visible during construction. Most of them emerge years later as maintenance cost escalation, unplanned outages, or commissioning delays.

The electrical and environmental boundary conditions of photovoltaic power plants differ fundamentally from those of traditional power plants. The core challenges can be summarized in the table below:

Critical Engineering Warning:
Inverter current limitation only affects fault levels within the PV collector system. At the HV side of the step-up transformer or at the Point of Connection (POC), short-circuit current is primarily determined by the upstream utility grid. In many cases, 25kA or 31.5kA interrupting ratings are required. Final breaker selection must be based on complete short-circuit calculations considering utility fault level, transformer impedance, and system parameters — never reduced solely because “the inverter limits fault current.”

The Five Most Important Factors When Selecting VCBs for Solar Projects

Selecting a VCB for photovoltaic applications involves far more than matching voltage and short-circuit ratings. Environmental conditions, inverter-based fault behavior, switching duty, and long-term operational reliability must all be evaluated together during the engineering stage.

Interrupting Capacity: Always Identify the Actual Fault Source

Using conventional synchronous-generation assumptions for all PV systems is one of the most common mistakes in renewable energy projects.

• Inside collector circuits, inverter fault contribution is limited

• At the substation HV side and grid connection point, fault current is determined by the utility network

For 33kV–35kV substations, common interrupting ratings include 25kA and 31.5kA, but selection must always be supported by system calculations.

Manufacturers should provide:

• IEC 62271-100 type test reports

• T100a asymmetrical interruption verification

• Application suitability confirmation for project-specific conditions

Mechanical Endurance: Understanding M2 Classification

Utility-scale solar plants are expected to operate for 25 years or longer, often with frequent remote switching and automated system control.

IEC 62271-100 defines:

• M1: Standard mechanical endurance (minimum 2,000 operating cycles)

• M2: Extended mechanical endurance (minimum 10,000 operating cycles)

If a project requires endurance beyond 10,000 operations due to frequent capacitor or reactive power switching, the correct specification approach is Minimum M2 classification required. Additional endurance verification shall be provided for applications exceeding 10,000 operating cycles.

Thermal Derating and Altitude Correction

This is one of the most frequently overlooked areas in procurement specifications. Many documents specify rated current and voltage but fail to ask: How does the breaker perform at 50°C ambient temperature?

Altitude correction is equally important. IEC 62271-1 standard service conditions apply up to 1000m above sea level. Beyond this altitude, reduced air density lowers external insulation strength. A commonly referenced engineering approximation is: External insulation strength decreases by roughly 1% for every additional 100m above 1000m elevation.

For high-altitude installations, manufacturers should confirm:

• Has the external insulation distance been corrected for altitude?

• Has the insulation level (rated lightning impulse withstand voltage, etc.) been adjusted accordingly?

IP Protection: The Mechanism Enclosure Matters Most

For high-dust or desert environments, it is recommended to specify:

• IP65 protection rating for the mechanism enclosure

• External insulation with extended creepage distance and UV-resistant silicone rubber insulation

• Additional salt-fog corrosion protection for coastal projects, such as stainless steel or hot-dip galvanized fasteners

Although IP 65 equipment may involve higher initial cost, the lifecycle cost is usually lower due to reduced maintenance and downtime.

One important clarification:
The vacuum interrupter pole itself is a hermetically sealed component and is not governed by the IP protection rating. IP ratings mainly apply to the operating mechanism enclosure, secondary wiring compartment, and terminal sections.

Compatibility with SCADA and Protection Systems

Modern photovoltaic power plants rely heavily on remote monitoring, automated protection, and intelligent dispatching. A vacuum circuit breaker is no longer just a switching device — it is also an integral execution component of the plant automation system.

In actual projects, the following aspects should be carefully verified:

• Support for IEC 61850 (MMS/GOOSE) or Modbus TCP communication protocols

• Compatibility with protection relays (overcurrent, earth fault, directional protection, etc.)

• Remote/local operation interlocking logic

• Trip Circuit Supervision (TCS)

Why Are More Renewable Energy Projects Choosing Fenarro Vacuum Circuit Breakers?

As renewable energy projects continue to operate in increasingly demanding environments, more EPC contractors and project owners are placing greater emphasis on long-term reliability, environmental adaptability, compliance with IEC standards, and reduced lifecycle maintenance costs.

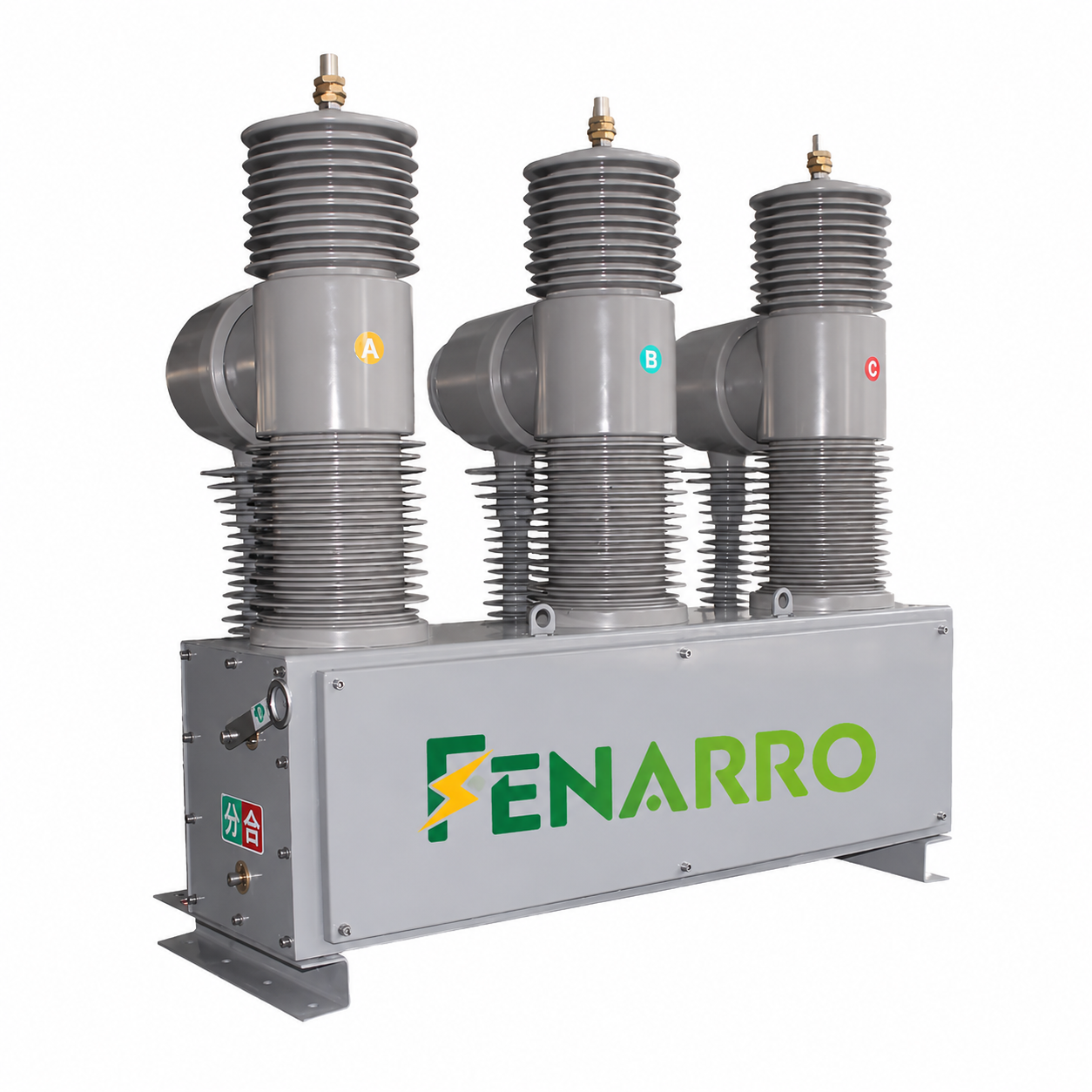

Fenarro‘s indoor and outdoor high-voltage vacuum circuit breakers have already been deployed in multiple renewable energy projects across the Middle East, Southeast Asia, and Africa.

Fenarro provides not only indoor and outdoor vacuum circuit breakers, but also broader renewable energy infrastructure solutions including medium-voltage switchgear, protection systems, distribution automation, and renewable energy integration support for utility-scale solar projects.

Key product advantages include:

• Compliance with IEC 62271-100 standards

• Designed for high-temperature operating environments

• Outdoor IP65 configuration options available

• Support for IEC 61850 and Modbus TCP communication protocols

• Suitable for photovoltaic, wind power, and energy storage substations

For large-scale solar projects, long-term operational reliability is often more important than initial equipment cost alone.

Final Thoughts

If you are planning a 12kV–40.5kV photovoltaic project, it is recommended to fully evaluate the site environment, grid conditions, and operating requirements at the early stage of the project, while completing key verification work in advance to help ensure long-term operational reliability.

If technical support is required, submit your single-line diagram, project voltage level, and environmental parameters. The engineering team can provide corresponding VCB configuration recommendations and technical support based on IEC 62271-100 standards.
