Drop-Out Fuse Cutout vs High Breaking Capacity Fuse: How to Choose the Right Fuse for Transformer Protection

Introduction

Drop-out fuse cutouts and high breaking capacity fuses are both widely used for transformer protection, but they are designed for different applications. One offers simple outdoor protection with visible fault indication, while the other provides stronger current-limiting performance for higher short-circuit conditions.

If your project involves transformer protection, which one should you choose: a drop-out fuse cutout or a high breaking capacity fuse? This guide compares their key differences and helps you select the right solution for your power distribution system.

Why Transformer Protection Needs the Right Fuse

A distribution transformer is one of the most important assets in a power distribution system. Once a fault occurs, the impact can quickly spread beyond the transformer itself, affecting overhead lines, switchgear, downstream equipment, and even the reliability of the entire network.

Common transformer risks include:

• short circuits

• overloads

• line faults

• lightning surges

• insulation aging

Without proper protection, these problems may lead to equipment damage, unplanned outages, fire hazards, or costly maintenance.

For complete transformer protection, overcurrent protection and overvoltage protection should also be considered together. Fenarro provides high-voltage fuses and surge arrester solutions for transformers, distribution lines, substations, and industrial power systems, helping projects improve both equipment safety and network reliability.

What Is a Drop-Out Fuse Cutout?

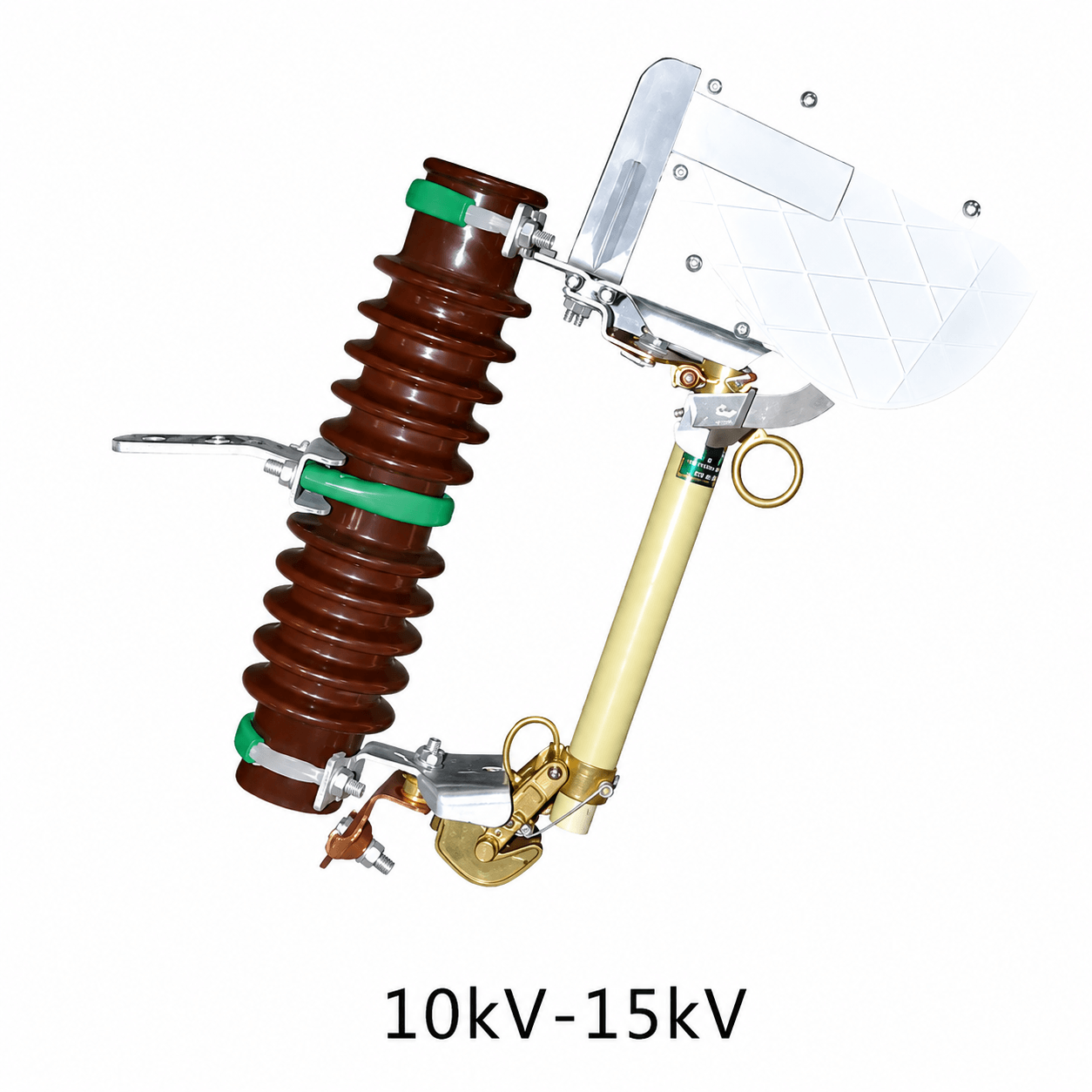

A drop-out fuse cutout is a type of high-voltage fuse device commonly used on outdoor overhead distribution lines and pole-mounted transformers. It is designed to protect transformers and distribution circuits by disconnecting the circuit when abnormal overcurrent or short-circuit current occurs.

Its most recognizable feature is the drop-out operation. When the fuse element melts during a fault, the fuse tube drops down from its normal position, creating a clear visible indication that the circuit has been disconnected. This makes it easier for maintenance teams to locate the faulted section and confirm the open status from a safe distance.

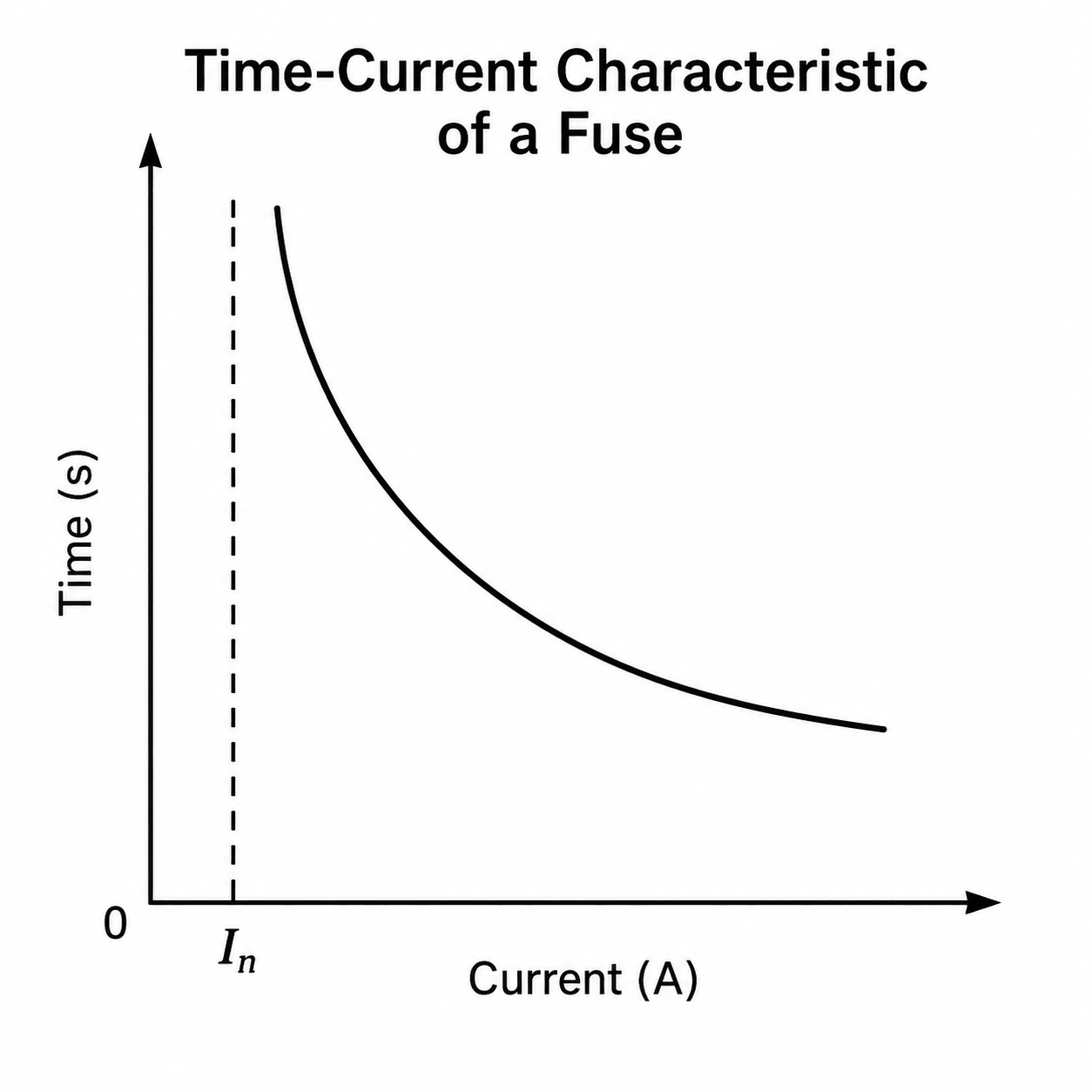

Another important characteristic is its time-current performance, also known as an inverse-time characteristic. In simple terms, the higher the fault current, the faster the fuse element melts. This allows the fuse cutout to respond quickly under short-circuit conditions, making it especially suitable for transformer and distribution line short-circuit protection.

Compared with circuit breakers, fuses are generally more cost-effective, more compact in size, and simpler in structure. This makes them especially suitable for distribution transformers, outdoor installations, and projects where space and budget are both important considerations. Its compact design, fast fault response, and economical cost make it a highly effective protection solution in many medium- and high-voltage distribution systems.

For pole-mounted transformers and overhead distribution systems, Fenarro Drop-Out Fuse Cutout provides a practical protection solution for 10kV to 40.5kV applications. It helps isolate faulted equipment, reduces the risk of wider system damage, and supports safer maintenance after fault clearing.

What Is a High Breaking Capacity Fuse?

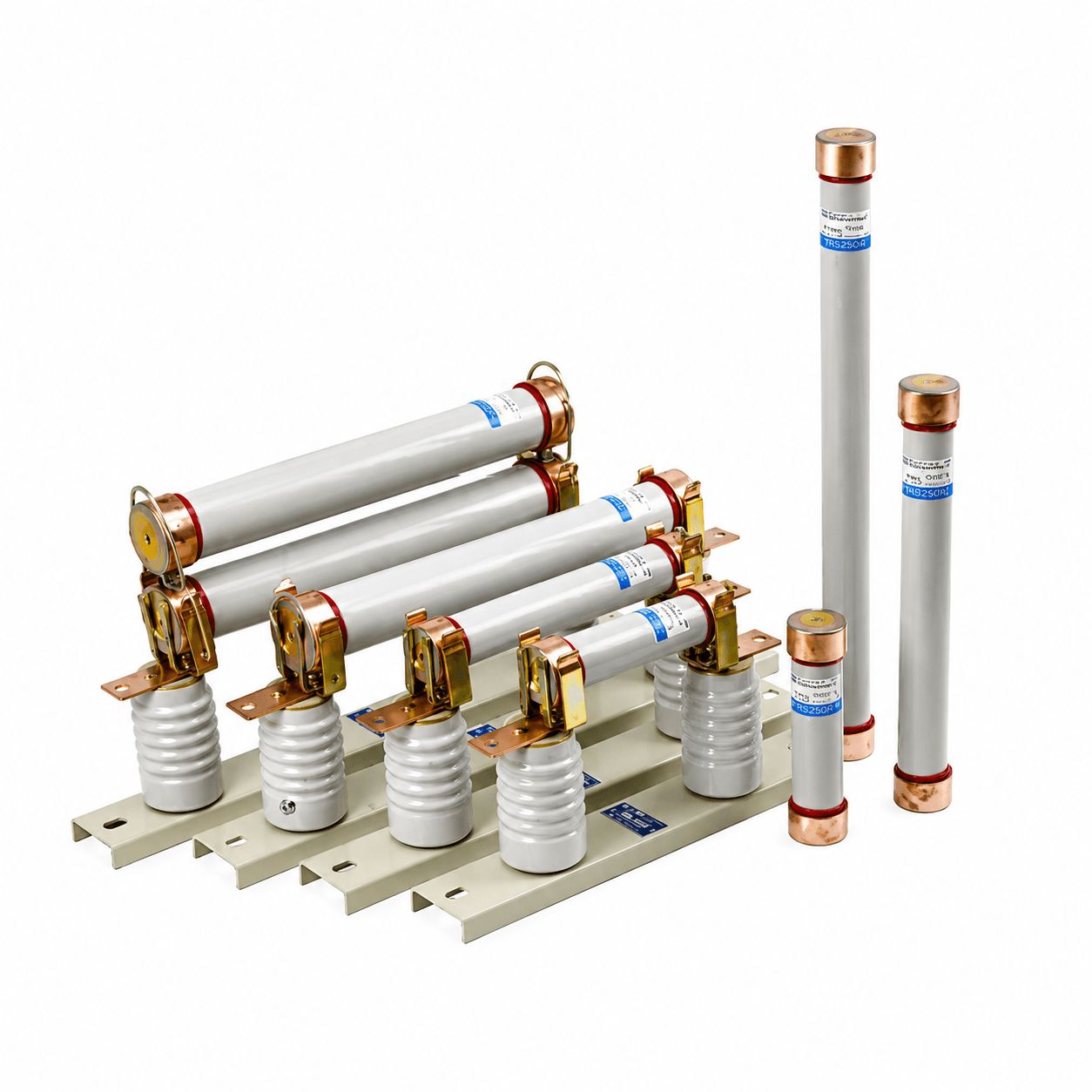

A high breaking capacity fuse is designed to interrupt high fault currents safely and quickly. Unlike a drop-out fuse cutout, which is commonly used on outdoor overhead lines, a high breaking capacity fuse is often applied in switchgear, transformer protection units, ring main units, and compact medium-voltage distribution systems.

Its main advantage is strong short-circuit protection. When a fault occurs, the fuse element melts rapidly and limits the fault current before it can cause greater thermal and mechanical stress to the transformer, cables, switchgear, or downstream equipment. This makes it especially suitable for systems where the available short-circuit current is high and reliable fault clearing is required.

Fenarro High Breaking Capacity Fuses offer an interrupting capacity of up to 63kA. While providing excellent current-limiting performance, they are also designed to maintain low power loss and minimal temperature rise, helping support stable operation and efficient protection in medium-voltage power systems.

Key Differences Between Drop-Out Fuse Cutouts and High Breaking Capacity Fuses

Although drop-out fuse cutouts and high breaking capacity fuses are both used for transformer and distribution system protection, they are designed for different operating environments and protection requirements.

To choose the right fuse, it is not enough to compare only the rated voltage or current. Project engineers should also consider where the fuse will be installed, how much fault current it needs to interrupt, whether visible fault indication is required, and how the protection device will be maintained after operation.

In the following sections, Fenarro will compare drop-out fuse cutouts and high breaking capacity fuses from two key aspects: installation environment and breaking capacity.

Key Difference 1 — Installation Environment

The first major difference between a drop-out fuse cutout and a high breaking capacity fuse is where they are installed.

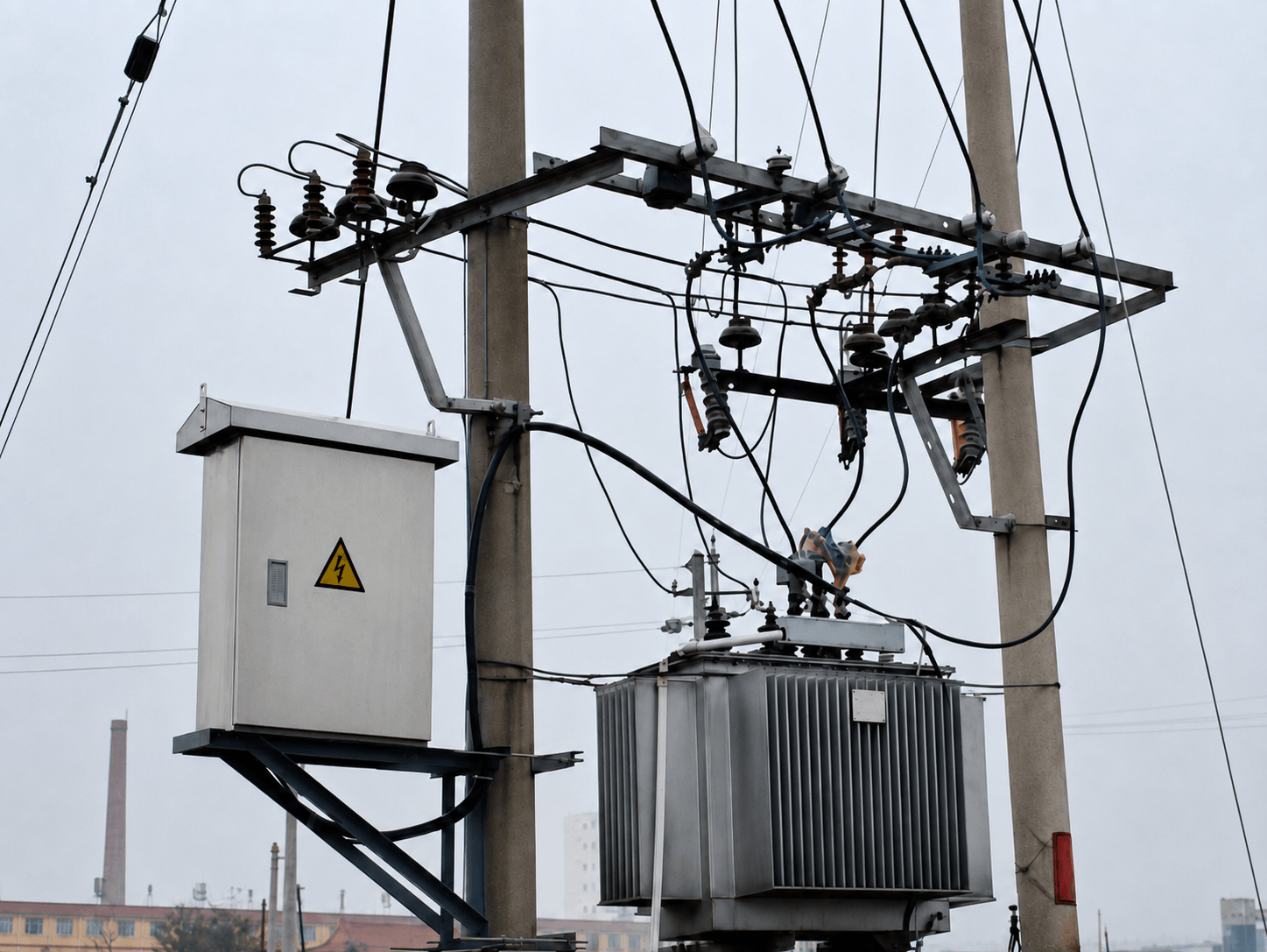

A drop-out fuse cutout is mainly designed for outdoor overhead distribution systems. It is commonly installed on utility poles, distribution lines, and pole-mounted transformers. Its open structure and visible drop-out action make it easy for maintenance teams to inspect the fuse status from a distance, which is especially useful in outdoor line protection and rural distribution networks.

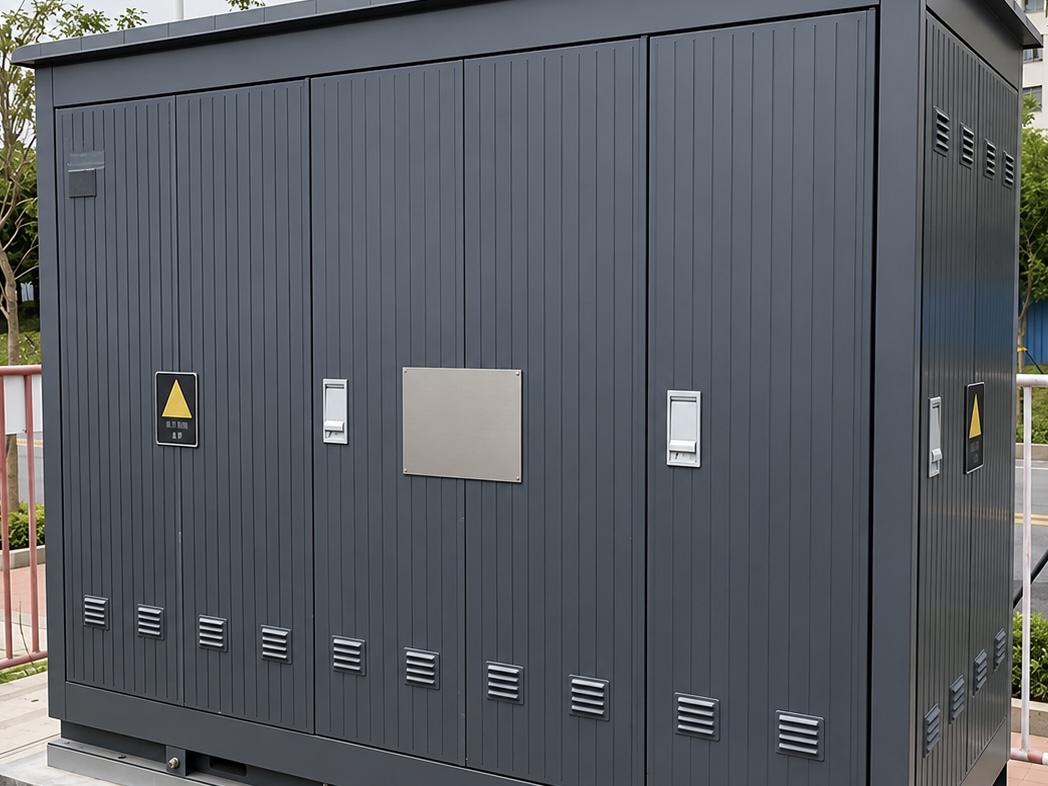

A high breaking capacity fuse, on the other hand, is more commonly used inside electrical equipment such as switchgear, ring main units, transformer protection cabinets, and compact medium-voltage distribution systems. Instead of visible outdoor indication, it focuses more on high fault-current interruption, current-limiting performance, and compact installation inside equipment.

In simple terms, a drop-out fuse cutout is often the better choice for outdoor overhead transformer protection, while a high breaking capacity fuse is more suitable for enclosed equipment where higher breaking capacity and compact protection are required.

Key Difference 2 — Breaking Capacity

Breaking capacity is one of the most important factors when selecting a transformer protection fuse. It refers to the maximum fault current that a fuse can safely interrupt without causing equipment damage, arc failure, or safety risks.

For lower or moderate fault-current conditions, a properly rated drop-out fuse cutout can provide effective transformer and line protection. However, when the available short-circuit current is higher, the fuse must have stronger interruption capability to clear the fault safely and quickly.

This is where a high breaking capacity fuse offers a clear advantage. Fenarro High Breaking Capacity Fuses provide an interrupting capacity of up to 63kA. With this high breaking capacity, they deliver reliable short-circuit protection while maintaining excellent current-limiting performance, low power loss, and minimal temperature rise.

In simple terms, if the project only requires standard outdoor transformer protection, a drop-out fuse cutout may be enough. If the system has a higher short-circuit level or requires stronger fault-current interruption, a high breaking capacity fuse is the safer and more suitable choice.

How to Choose the Right Fuse for Your Transformer Protection Project

After understanding the key differences between drop-out fuse cutouts and high breaking capacity fuses, the next step is to match the fuse type with your actual transformer protection requirements.

The right choice depends on several factors, including installation environment, short-circuit current level, maintenance method, equipment structure, and whether visible fault indication is required. Fenarro recommends considering the following selection points before choosing a fuse for your project.

Fenarro provides Drop-Out Fuse Cutouts from 10kV to 40.5kV and High Breaking Capacity Fuses with interrupting capacity up to 63kA, helping customers choose reliable transformer protection solutions for different medium-voltage distribution applications.

Complete Transformer Protection: Fuses, Load Break Switches, and Surge Arresters

Choosing the right fuse is an important part of transformer protection, but in many power distribution projects, a fuse does not work alone. It is often coordinated with other medium-voltage protection and switching devices to build a safer and more complete protection system.

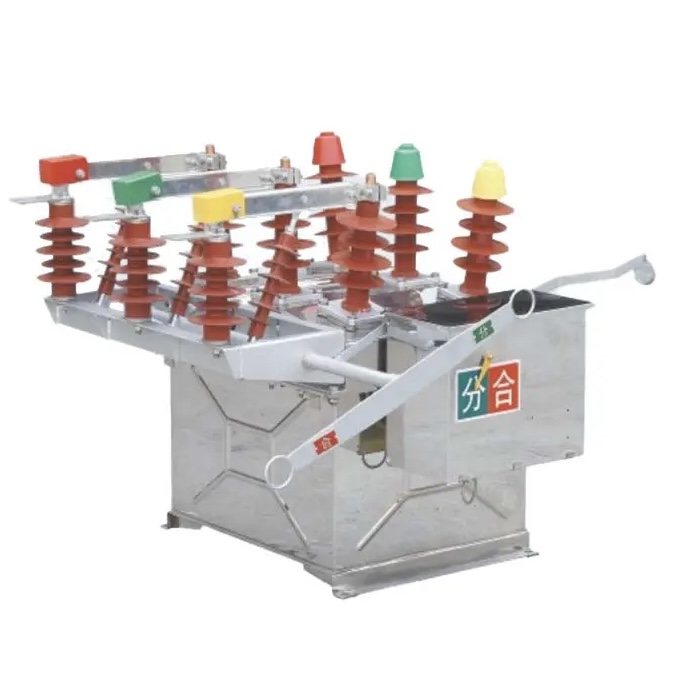

For example, fuses can be used together with vacuum load break switches. The vacuum load break switch handles normal load switching, while the fuse provides short-circuit protection when abnormal fault current occurs. This combination is commonly used in medium-voltage distribution systems where reliable transformer protection and cost-effective switching are both required.

For projects that need normal load switching and transformer protection, Fenarro’s guide on vacuum load break switches explains when this type of device is suitable for power distribution systems and how it works with other protection equipment.

In addition to overcurrent and short-circuit protection, transformer systems should also consider overvoltage protection. While fuses protect against abnormal current, surge arresters help protect transformers and electrical equipment from lightning surges and switching overvoltage.

Conclusion

By considering your installation environment, fault-current level, and overall protection requirements, you can make a more accurate fuse selection for your transformer protection project. Whether your system requires visible outdoor protection or high-capacity current-limiting performance inside electrical equipment, Fenarro provides reliable fuse and arrester solutions to support safer and more efficient medium-voltage power distribution.
