High-Voltage Equipment for Power Plant Switchyards: Switching, Isolation and Protection

A power plant switchyard connects generated power to the transmission grid, but reliable power evacuation depends on more than simply installing high-voltage equipment. The equipment must keep faults from spreading, allow maintenance without unnecessary shutdowns, and protect critical assets from electrical stress.

These needs can be grouped into three core functions: switching, isolation and protection. When each function is assigned to the right equipment, the result is a switchyard that is safer to operate, easier to maintain and better prepared to keep power moving.This article focuses on how circuit breakers, disconnect switches, surge arresters, transformer neutral point equipment and related medium-voltage devices work together in actual power plant applications.

Where High-Voltage Equipment Fits in a Power Plant Switchyard

A simplified power path runs from the generator through the step-up transformer, transformer bay and busbar to the outgoing line bay and transmission grid.

The main high-voltage bays typically require circuit breakers, disconnect switches and surge protection. Plant auxiliary and internal medium-voltage systems add VCBs, load break switches and localized protection according to their own operating duties.The important point is not to use every device everywhere. It is to match each switching, isolation and protection task with equipment designed for that duty.

1. Switching: Keep Faults Contained and Power Moving

Switching determines how effectively a plant can control circuits during normal operation and respond when something goes wrong. A correctly applied switching system helps clear faults quickly, limit the affected area and avoid taking healthy parts of the electrical network out of service unnecessarily.

Circuit Breakers for Reliable Fault Interruption

In transformer and outgoing line bays, circuit breakers provide the controlled interruption point for major high-voltage circuits. When a protection system detects a fault, the breaker clears the affected circuit so the fault does not continue stressing transformers, lines and other connected equipment. Reliable fault interruption helps contain the problem within the affected circuit, reducing the risk of a local fault developing into a wider outage.

For higher-voltage outdoor applications, Fenarro provides outdoor high-voltage SF6 circuit breakers. Its current range includes outdoor models for high-voltage transmission and distribution applications, giving projects a dedicated switching option for transformer, line and other outdoor power-system duties.

Rather than repeating the interruption technology here, the working principle is covered in SF6 Circuit Breakers: Role in Modern Power Systems & Applications.

VCBs for Medium-Voltage Plant Reliability

The main switchyard is only part of the plant electrical system. Auxiliary transformers, station-service feeders and internal distribution circuits also need reliable switching and fault protection.

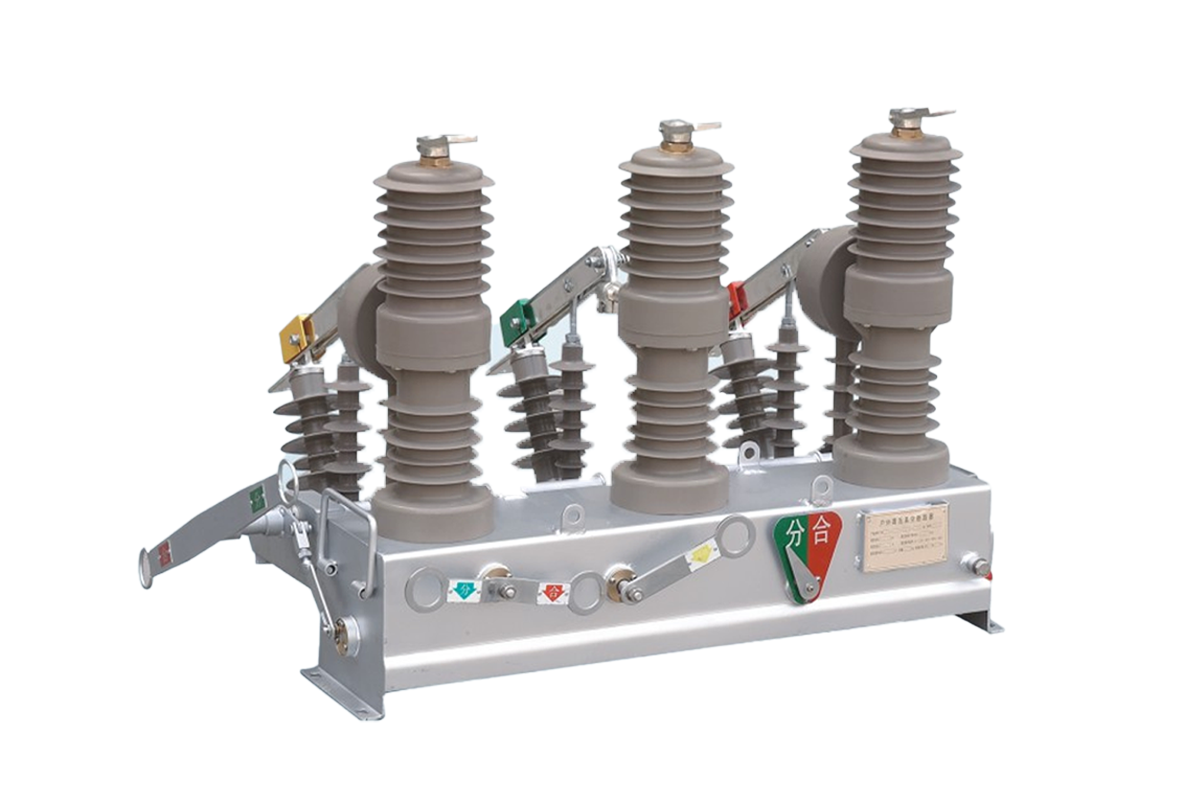

For these medium-voltage duties, Fenarro vacuum circuit breakers cover indoor and outdoor applications from 12 kV to 40.5 kV. Their low-maintenance vacuum interruption design and suitability for frequent operation make them useful where plant feeders need dependable repeated switching without adding unnecessary maintenance burden.

For detailed VCB ratings, construction and selection, see the High-Voltage Vacuum Circuit Breaker Guide.

Load Break Switches: Avoid Over-Specifying Routine Switching

Not every medium-voltage switching point needs a full circuit breaker. Where the requirement is normal load switching, transformer switching or feeder sectionalizing, a vacuum load break switch can handle the routine operating duty when the overall system provides the required fault protection.

This gives plant designers a more practical equipment hierarchy. Circuit breakers can be reserved for circuits requiring defined fault-interruption capability, while load break switches handle suitable routine switching duties.

The result is not only a technically clearer system, but also one in which equipment capability is better matched to what each circuit actually needs.

2. Isolation: Make Maintenance Safer and Less Disruptive

Clearing current is only the first step when equipment needs maintenance. Once a circuit has been de-energized, engineers still need a reliable way to separate the equipment being serviced from sections that remain energized.

Good isolation therefore has two practical benefits: it creates a safer maintenance boundary and helps reduce how much of the switchyard must be taken out of service for planned work.

Isolate Only What Needs Attention

High-voltage disconnect switches are commonly installed around circuit breakers, transformer connections, outgoing lines and bus sections to establish clear isolation points.

If a breaker needs inspection, the objective is not to shut down every connected bay. Properly arranged disconnectors can help separate the equipment requiring attention while other parts of the system remain available where the switchyard configuration permits.

The same principle applies to transformer and line maintenance. Effective isolation limits the maintenance boundary to the equipment that actually needs to be removed from service, improving operational flexibility and reducing unnecessary interruption.

Fenarro's disconnect switch portfolio covers indoor and outdoor applications from 12 kV to 252 kV, providing different configurations for the isolation needs of different voltage classes and bay arrangements.

Reduce the Risk of Incorrect Operation

Isolation also depends on correct operating sequence. The circuit breaker interrupts current first; the disconnector then establishes isolation, followed by earthing where required by the station design and operating procedure.

Mechanical and electrical interlocking helps maintain this sequence by coordinating the states of the breaker, disconnector and earthing switch. IEC 62271-102 specifically addresses AC disconnectors and earthing switches and includes requirements relating to interlocking and position indication.

For plant operators, the benefit is straightforward: a more controlled isolation process reduces the risk of incorrect switching and gives maintenance teams a clearer, more manageable working condition.

Fenarro disconnect switches are available in configurations suited to different indoor and outdoor installations, including selected motorized and grounding-switch arrangements. The detailed operating principle can be found in High Voltage Disconnect Switch Explained.

3. Protection: Protect High-Value Equipment from Electrical Stress

Circuit breakers are essential for clearing faults, but opening a breaker does not solve every threat in a switchyard. Lightning surges, switching overvoltages and transformer-neutral abnormalities can place severe stress on insulation before a conventional switching operation can address the problem.

This makes protection equipment especially important around transformers and other assets that are costly and difficult to replace. The objective is to prevent a short electrical event from becoming long equipment downtime.

Surge Arresters: Protect Transformer and Switchyard Insulation

Overhead transmission lines can carry lightning surges into the switchyard, while switching operations can create their own transient overvoltages. Surge arresters limit these voltage stresses before they exceed the insulation withstand capability of the protected equipment.IEC 60099-4 covers gapless metal-oxide surge arresters designed to limit voltage surges on AC power systems above 1 kV.

In practical switchyard applications, arresters are positioned close to equipment requiring protection, such as transformer terminals and line connections. Their value is therefore directly tied to protecting transformer insulation, breakers and other connected equipment from potentially damaging transient stress.

Fenarro's high-voltage surge arresters support transformer, substation and transmission/distribution applications across different voltage classes. Fenarro's fuse and arrester portfolio is specified around relevant IEC, ANSI and other international requirements for these protection devices.

Detailed voltage rating and installation considerations are covered separately in How to Select a High-Voltage Surge Arrester for Transformer and Substation Protection.

Transformer Neutral Point Equipment: Add Protection Where the Transformer Needs It

The transformer neutral can require another dedicated protection layer. Depending on the grounding arrangement, abnormal neutral conditions may need coordinated current limitation, overvoltage protection, isolation and monitoring.

Instead of configuring these functions as unrelated components, Fenarro transformer neutral point equipment brings related protection functions into an integrated system. Fenarro lists neutral-point solutions including current limiting, spark-gap overvoltage protection, monitoring and coordination with transformer protection systems.

For the plant, this provides a more coordinated way to reduce the risk of neutral-point overvoltage or ground-fault conditions damaging valuable transformer insulation.

The detailed fault mechanism and neutral protection principle are explained in Transformer Neutral Protection.

High-Voltage Fuses: Simple Protection Where a Breaker Is Not Necessary

Some auxiliary and medium-voltage circuits do not require the complexity of a circuit breaker protection arrangement. In suitable applications, high-voltage fuses provide localized overcurrent protection for transformers and distribution circuits.

The benefit is similar to the use of load break switches in routine switching: protection can be matched to the importance and duty of the circuit rather than over-engineered at every point.

Fenarro's high-voltage fuse range includes high-breaking-capacity fuses and drop-out fuse cutouts for different transformer and distribution applications.

How Switching, Isolation and Protection Work Together

The real value of these devices appears when they are treated as one coordinated system.

Switching keeps faults contained and helps healthy circuits stay available. Isolation allows maintenance to focus on the equipment that actually needs attention. Protection reduces the chance that lightning, switching surges or transformer-neutral abnormalities damage high-value assets.

The medium-voltage plant network adds another layer, where VCBs, load break switches and fuses provide switching and localized protection according to the duty of each feeder.

Together, these functions support three outcomes that matter directly to a power plant:

• Higher operational continuity by clearing and isolating problems without unnecessarily affecting healthy sections.

• Safer and more efficient maintenance by creating controlled isolation boundaries around equipment being serviced.

• Better protection of critical assets by limiting fault and overvoltage stresses before they lead to more serious equipment damage.

Fenarro supports these connected requirements through a one-stop product portfolio covering SF6 and vacuum circuit breakers, disconnect switches, vacuum load break switches, transformer neutral-point equipment, high-voltage fuses and surge arresters. Fenarro's current product catalogue spans these core switching, isolation and protection categories.

For a power plant project, bringing these technically related devices into one coordinated product system can make specification alignment, equipment interfaces and delivery planning easier. It also allows different voltage levels and operating duties across the plant network to be addressed without treating every item as an isolated equipment decision.

What Changes from One Power Plant Switchyard to Another?

The functions remain the same, but the equipment configuration changes from project to project. The main factors include:

• System voltage and short-circuit level: determine breaker ratings and fault-interruption requirements.

• Bus and bay arrangement: affects how switching and isolation are divided across the switchyard.

• Transformer and grounding configuration: changes surge and neutral-point protection requirements.

• Site conditions: altitude, temperature, pollution and other environmental factors influence insulation and outdoor equipment configuration.

These differences are why effective switchyard equipment application starts with the operating requirement of each circuit rather than selecting equipment by product type or voltage class alone.

Conclusion

For project-specific switching, isolation and protection requirements, contact Fenarro for equipment recommendations and free technical consultation.
