High Voltage Disconnect Switch Explained: Safe Isolation for 12kV–252kV Power Systems

Introduction

A high voltage disconnect switch, also known as an HV disconnector or high voltage isolator, is a switching device used to provide visible electrical isolation in substations, transmission networks, switchgear systems, and power distribution projects. Fenarro’s high voltage disconnect switches are designed for maintenance safety and reliable isolation in power systems. With voltage ratings from 12kV to 252kV, they provide a safe and visible break for electrical circuits during inspection, maintenance, and switching preparation.

Unlike a circuit breaker, a disconnect switch does not have arc-extinguishing capability. Therefore, it should not be used to interrupt load current or short-circuit current. In actual power systems, it is normally used together with a high voltage circuit breaker. If you are not familiar with how vacuum circuit breakers work in medium- and high-voltage systems, you can also read Fenarro’s High Voltage Vacuum Circuit Breaker VCB Guide for a more detailed explanation.

Why Are High Voltage Disconnect Switches Important?

A high voltage disconnect switch provides visible isolation for high-voltage equipment, making it crucial for both electrical safety and operational reliability. The key advantages of a disconnect switch include:

• Visible Isolation: A disconnect switch provides a clearly visible open point, which is its core feature compared with circuit breakers (whose open contacts are typically hidden). This visible gap helps operators confirm whether a section is safely disconnected.

• Safe Maintenance: Disconnect switches allow personnel to safely inspect or maintain high-voltage equipment without the risk of accidental energization.

• Safe Circuit Reconfiguration: They enable safe reconfiguration of disconnected circuits, such as switching circuits between busbars in a double-busbar system. This helps operators adjust the system layout or restore power while minimizing risk.

• Small-Current Operation: A high voltage disconnect switch cannot safely interrupt large currents, but it can safely operate circuits carrying very small currents, typically associated with auxiliary devices.

For engineering and procurement teams, the value of a high voltage disconnect switch is not only turning a circuit on or off. Its real value is to provide a clear and reliable isolation point before maintenance work begins.  Fenarro’s high voltage disconnect switches are designed with robust mechanical construction, smooth operation, and environmental adaptability, making them suitable for both indoor switchgear and outdoor high-voltage applications.

Basic Structure of a High Voltage Disconnect Switch

A typical HV disconnect switch consists of several key components. Each part plays a role in supporting, insulating, conducting, or operating the switch safely.

Outdoor models often feature V-type structures and can include single or double grounding blades. Fenarro’s designs also include double-break contact systems, corrosion-resistant materials, and self-lubricating bearings for smooth operation, as well as anti-icing and seismic resistance features.

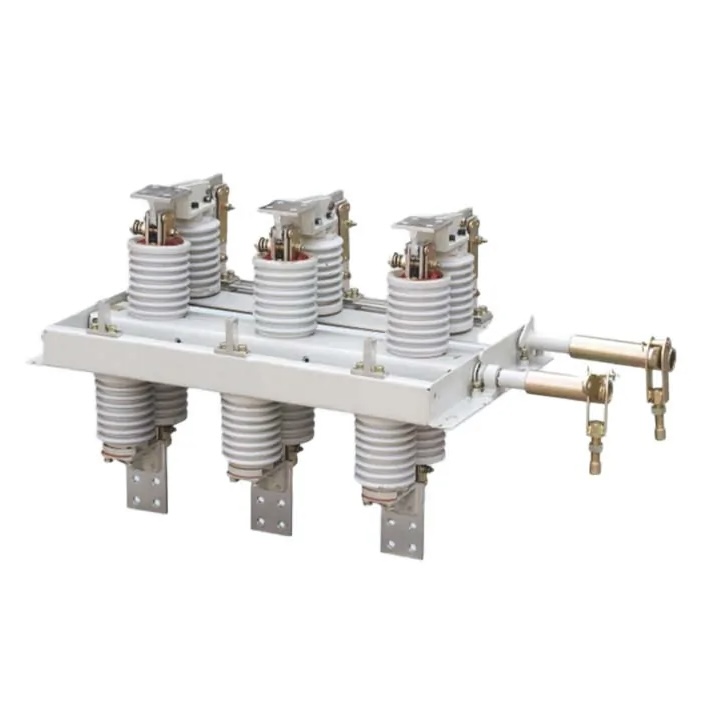

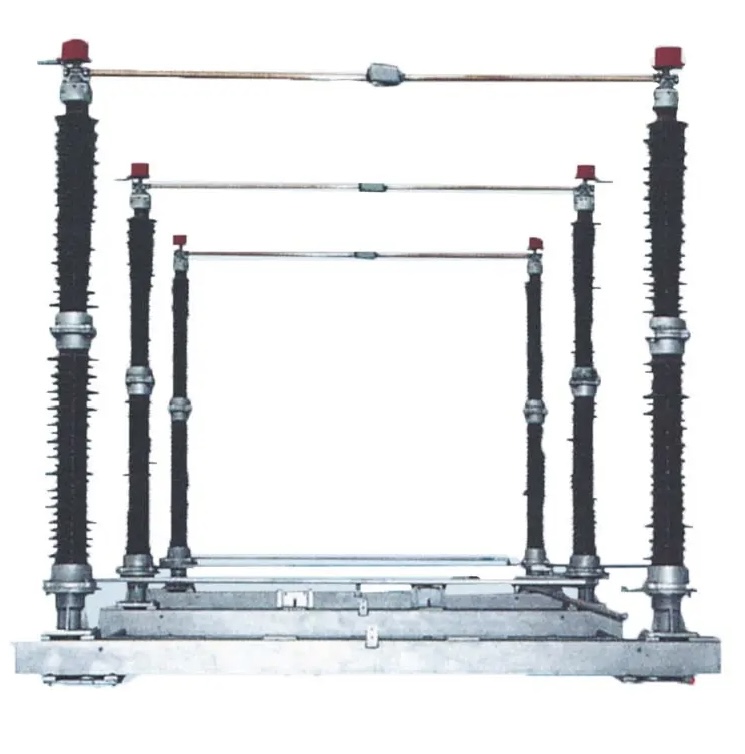

The images below show two typical product examples from Fenarro’s high voltage disconnect switch series. The GW4-252(D)(W) outdoor HV disconnector is designed for outdoor substations and high-voltage transmission applications where reliable visible isolation and environmental durability are required. The GN30-12 series indoor rotating disconnector is a compact indoor solution for 12kV switchgear and distribution rooms, suitable for projects that require safe isolation within enclosed electrical systems.

Indoor vs Outdoor HV Disconnect Switches

High voltage disconnect switches come in indoor and outdoor variants, each optimized for specific environments and applications. This comparison helps engineering and procurement teams quickly identify the most suitable switch type for a given project.

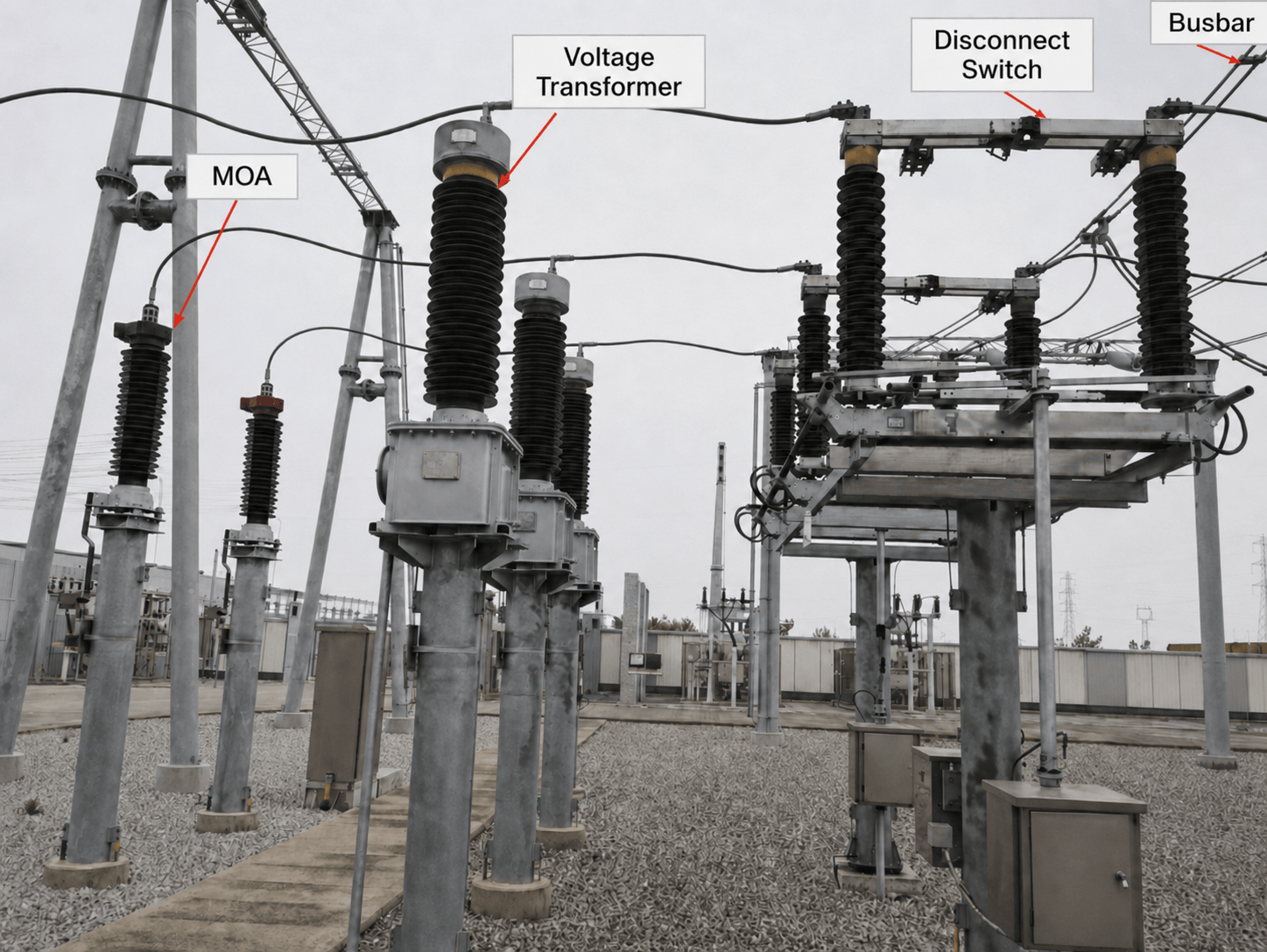

Where Are High Voltage Disconnect Switches Used?

Transmission Substations: In high-voltage substations, disconnect switches provide visible isolation for transformers, circuit breakers, and busbars. This is especially important during inspection, maintenance, and equipment replacement.

Distribution Networks: For 10kV–35kV distribution lines, outdoor disconnect switches help with line maintenance and section isolation. Models such as GW4-12-24, GW8, and GW9 can be mentioned in this type of application.

Industrial Plants: Large industrial facilities often require high-voltage isolation points for transformers, incoming lines, and internal distribution systems. Disconnect switches help maintenance teams safely separate equipment from energized sections.

Renewable energy power plants: Solar and wind farms require reliable isolation for collection lines, step-up substations, and grid connection equipment. Outdoor models such as GW4, GW5, and GW7-126 can be used as representative examples for renewable energy and substation applications. For related equipment selection, see Fenarro’s guides on solar power substations and wind and solar power plants.

Important Safety Rule: Do Not Open Under Load

A high voltage disconnect switch is not designed to interrupt load current. If it is opened under load, a strong electric arc may occur between the contacts. This can cause equipment damage, phase-to-phase short circuit, phase-to-ground fault, or serious safety risks.

The correct operating sequence is:

For power-off operation: open the circuit breaker first, then open the disconnect switch.
For power-on operation: close the disconnect switch first, then close the circuit breaker.

This is one of the most important differences between a disconnect switch and a circuit breaker.

Conclusion

A high voltage disconnect switch is a critical component for safe electrical isolation, circuit switching, and small current operations in power systems. When used in conjunction with a high voltage circuit breaker, it ensures safe maintenance, clear visibility of open points, and overall operational reliability.

For project selection, engineering teams should confirm the rated voltage, installation environment, grounding requirements, and operating mechanism before choosing a model. You can review Fenarro’s high voltage disconnect switch series or contact our team for model selection support based on your project specifications.
